Description

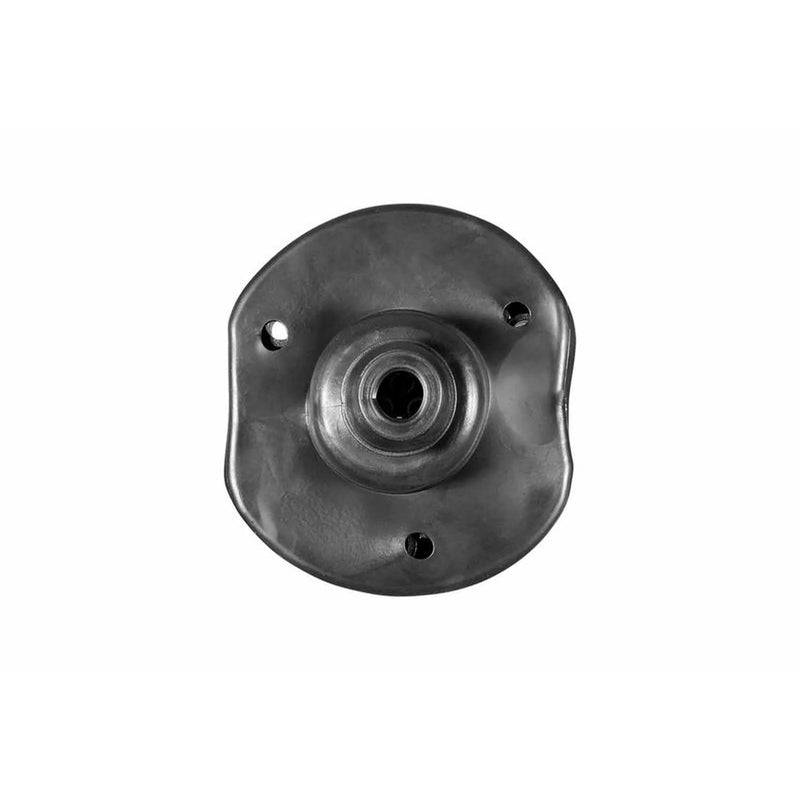

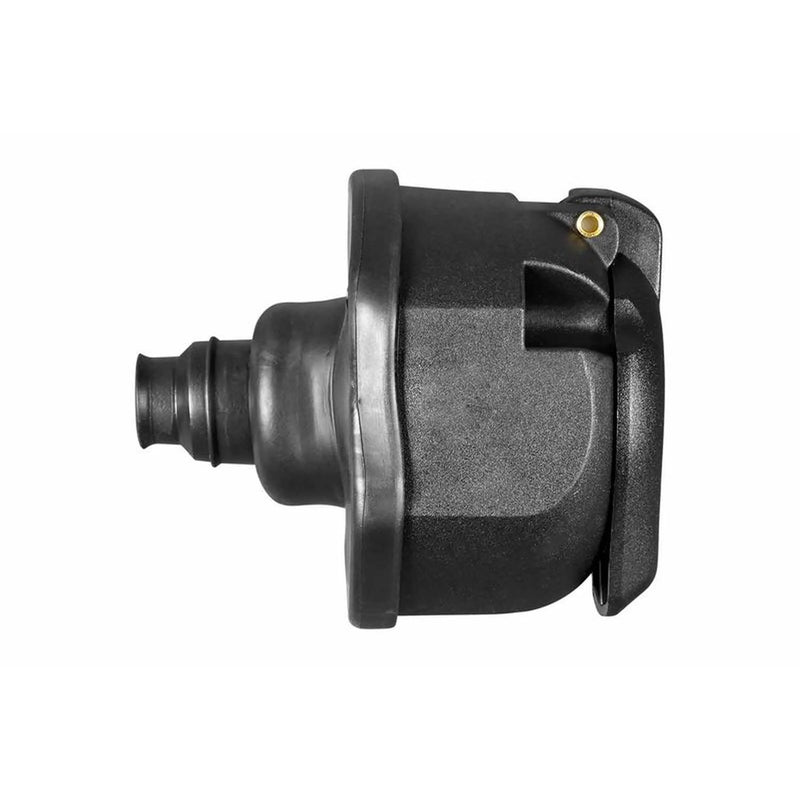

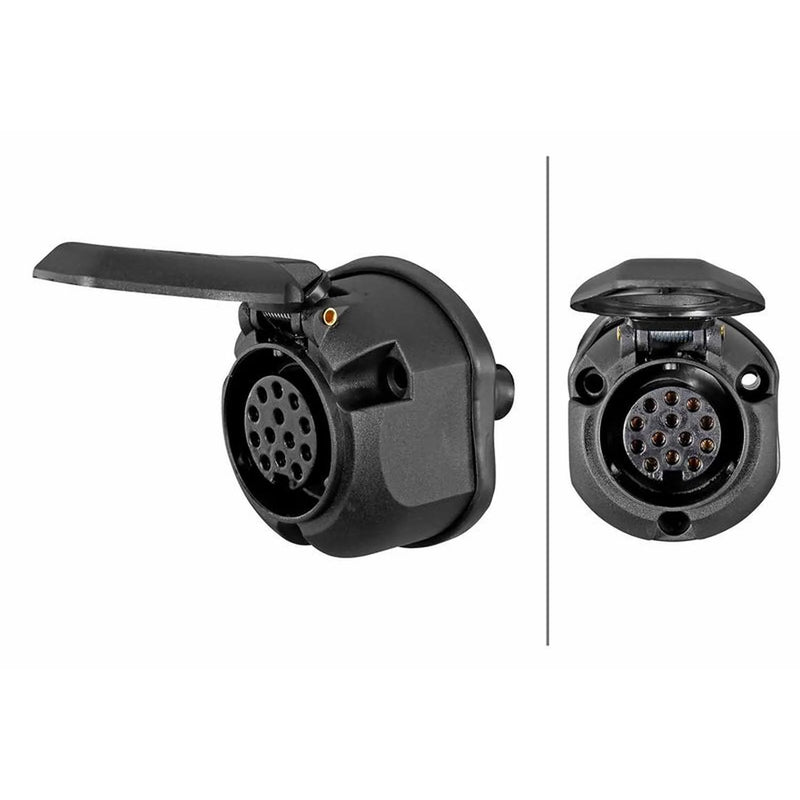

This Hella Socket (Part Number 8JB 005 949-001) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Socket |

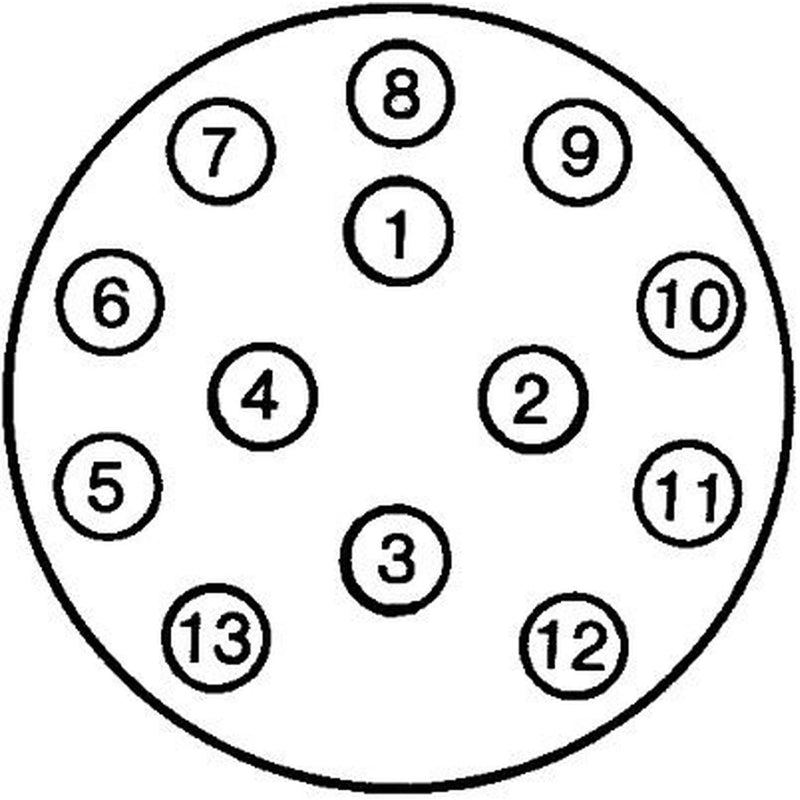

| Number of pins | 13 |
| Voltage | 12V |
| DIN/ISO | 11446 N-Typ |
| Number of bores | 3 |
| Colour | black |
| Cross Section [mm²] from | 1.5 |
| Cross Section [mm²] to | 2.5 |
| Current Strength from | 16A |
| Current Strength to | 25A |
| Temperature range from | -40°C |
| Temperature range to | +85°C |
| Depth | 45mm |
| Diameter | 72mm |
| Mounting Type | Screw Connection |
| Bore Diameter | 6mm |
| Plug Type | Screw Contact |
| Quantity | 1 |
| Manufacturer Part Number | 8JB 005 949-001 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Aebi | 0241622-0, 1240953-8 |
| Agrifac | 7774413 |
| Ahlmann | 23104244 |
| Amazone | NF086 |
| Auwärter | 348-ST006 |
| BMW | 1 378 999, 61 13 1 378 999 |
| Bobcat | L000005967 |
| Bomag | 60.010.012 |
| Broshuis | 35417022 |
| Bucher | 7615-4510 |
| Case Ih | 0 325228 6, 84007466, D F06530 6 |
| Demag | 46114240 |
| Deutz-Fahr | 012 31938 |
| Evobus | 004 545 77 26, A0045457726 |
| Faymonville | 9998 |
| Feldbinder | 004939 |
| Goldhofer | 157643 |
| Hako | 00-88202-2, 90-28769-9 |
| Hymer | 0998450, 1000105125, 1603.08.19 |
| Ikarus | 700.04-0049-001, 70004-49001 |
| Irizar | 8033668 |
| JCB | 7239/0005 |
| Jaeger | 121140, 72400008 |
| Jungheinrich | 51375087 |
| Kramer | 000 333 22 10, 1000105125 |
| Krone | 505806735, 5806735/0 |
| Kässbohrer | 7.235.138.000.0 |
| Kögel | 351001 |
| Langendorf | 1134638 |
| Liebherr | 1 002 921 0, 1 040 130 30, 6 002 003 |
| Lindner | 3005446 |
| Mafi | 000,579,1945 |
| Mega | 513.12.00 |
| Nooteboom | 0223030 |
| Paus | 529366 |
| Putzmeister | 245802005 |
| Reisch | 5003017 |
| Renault Trucks | 7423167225 |
| Renders | H2714389 |
| Rosenbauer | 081037 |
| Same | 01231938 |
| Scania | 1866856, 1934332, N001793 |
| Schwarzmüller | 38770 |
| Solaris | 1022-007419-00 |
| Sommer | 2800287003 |
| Sperry New Holland | 84007466 |
| Still | 529127 |
| Terex | 46114240, 5350642362, 94746114240 |
| Toyota | 0056571 |
| Valmet | 32458500 |
| Van Hool | 11084471 |
| Vdl | 11084471, 30003337, 40450382 |
| Volvo | 11307604, 2052079, 20520796, 54490003, P15243264B01 |
| Weidemann | 5016005949 |
| Weiro | 12324 |
| Yanmar | 5350642362 |
