Description

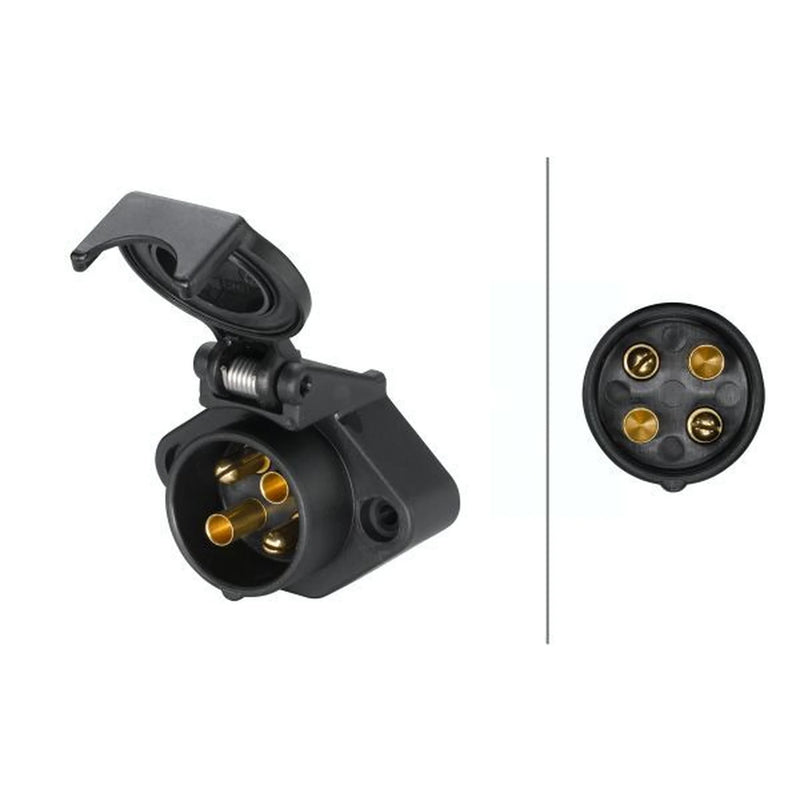

This Hella Socket (Part Number 8JB 001 944-011) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Socket |
| Number of pins | 4 |
| Voltage from | 6V |
| Voltage to | 42V |
| Protection Type (IP Code) | IP5K |
| Colour | black |
| Cross Section [mm²] from | 1.5 |
| Cross Section [mm²] to | 2.5 |
| Current Strength from | 16A |
| Current Strength to | 25A |
| Temperature range from | -40°C |
| Temperature range to | +85°C |
| DIN/ISO | 72575 |
| Depth | 40mm |
| Bore Diameter | 4.3mm |
| Number of bores | 2 |
| Height | 59.5mm |
| Width | 61mm |
| Mounting Type | Screw Connection |
| Supplementary Article/Supplementary Info 2 | with cover |
| Plug Type | Screw Contact |
| Quantity | 1 |
| Manufacturer Part Number | 8JB 001 944-011 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Aebi | 65-218465 |
| Agrifac | 7774404 |
| Broshuis | 35424015 |
| Case Ih | 83982634, 839826340 |
| DAF | 1523984 |
| Evobus | 8.980.601.210.0 |
| Faun | 1708-010 |
| Feldbinder | 004894 |
| Fiat | 83982634 |
| Goldhofer | 201696 |
| Humbaur | 411.00102 |
| Hüffermann | 2-EL0006-005 |
| Iseki | 2310-4017-00-A |
| Jaeger | 151035, 54400002 |
| Komatsu | 4210 0H0 650, 421-00-H0650 |
| Krone | 0944118/0, 500944118 |
| Kögel | 411.00102, 90028207 |
| Langendorf | 1134653 |
| Liebherr | 1 040 045 17, 6 050 025, 6 052 005 |
| Manitou | A4192487A |
| Massey Ferguson | 56469 |
| Nooteboom | 1443580 |
| Reform | 999242205 |
| Rosenbauer | 951725 |
| Scania | 1934331 |
| Sommer | 2800088001 |
| Sperry New Holland | 83982634 |
| Spierings | 417151 |
| Weiro | 27548 |
