Description
This Hella High Beam Headlight (Part Number 1FJ 358 236-041) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | High Beam Headlight |
| Position | Front |
| Mounting Type | Bolted |
| Fastening Type | Screw connection |
| Fitting Position | Front |
| Lamp Type | LED |
| Light Design | double line LED |
| Voltage | 24V |
| Voltage from | 10V |
| Voltage to | 30V |
| Rated Power | 174W |
| Light Function | High-boost |
| Luminous Flux | 4870 lm |
| Luminous in boost mode | 10246 lm |
| Theoretical luminous flux | 8400 lm |
| Theoretical luminous flux in Boost mode | 16800 lm |
| Number of light functions | 3 |
| Number of LEDs | 40 |
| Light Distribution | Spot Illumination |
| Colour Temperature | 5700 K |
| Reference number | 50 |
| Housing material | Aluminium |
| Housing Colour | black |
| Frame Colour | black |
| Lens Colour | Crystal clear |
| Light colour | white |
| Diffusing Lens Material | PC (Polycarbonate) |
| Diffusing Lens Type | Clear diffusing lens |
| Temperature range from | -30°C |
| Temperature range to | +65°C |
| Protection Type (IP Code) | IP68 |

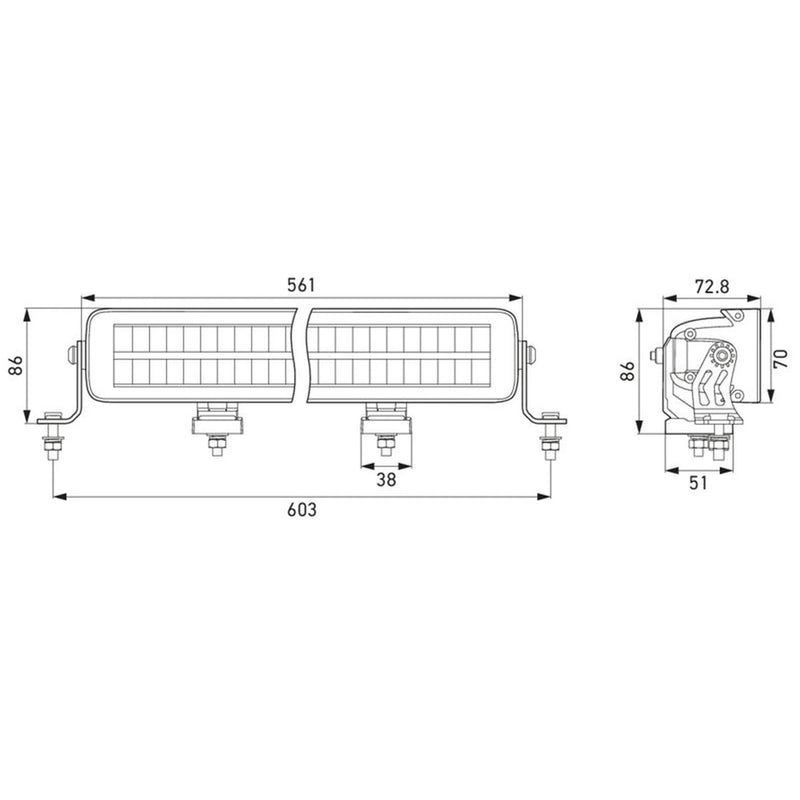

| Overall Height | 86mm |
| Length | 561mm |
| Height | 70mm |
| Depth | 72mm |
| Cable Length | 2000mm |
| Registration Type | ECE approved |
| max. light cone range at 1 lux (main light function) | 464m |
| max. light cone range at 1 lux (high boost function) | 663m |
| fulfils ECE standard | R149 |
| Weight | 2550g |
| Plug Type | open cable ends |
| Surface | Anodized |
| Manufacturer Part Number | 1FJ 358 236-041 |
