Description

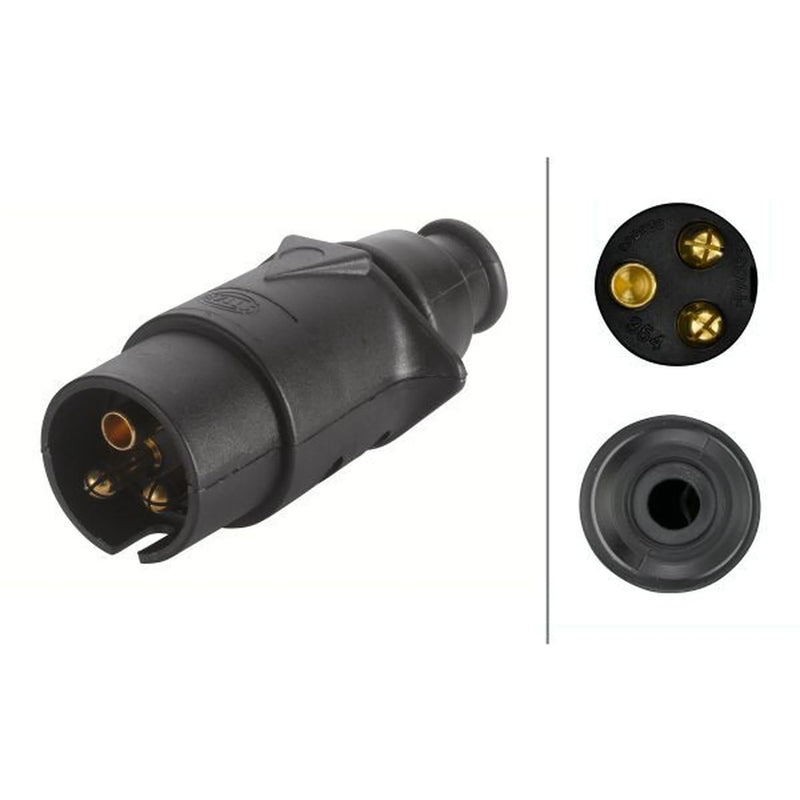

This Hella Plug (Part Number 8JA 002 263-001) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Plug |
| Number of pins | 3 |
| DIN/ISO | 9680 |
| Material | PA (polyamide) |
| Colour | black |
| Protection Type (IP Code) | IP5K |
| Plug Type | Screw Contact |
| Current Strength | 25A |
| Voltage from | 6V |
| Voltage to | 24V |
| Cable Diameter from | 6mm |
| Cable Diameter to | 8mm |
| Cross Section | 2.5 mm² |
| Length | 89mm |
| Number of connectors | 3 |
| Temperature range from | -40°C |
| Temperature range to | +85°C |
| Manufacturer Part Number | 8JA 002 263-001 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Aebi | 0229912-1, 20-3420175 |
| Ahlmann | 41556079A, 6029009/6029013 |
| Atlas Copco | 0449534 |
| Bomag | 60.010.039 |
| Bucher | 7-615-0720 |
| Case Ih | 1424326 |
| DAF | 1435319, 363242 |
| Demag | 33355800, 66635240 |
| Doll | 8179028 |
| Evobus | 6 270 210 006 2 74 |
| Faun | 1708 051, EA0108 |
| Faymonville | 4482 |
| Feldbinder | 007143 |
| Fendt | 7 169 357 17 |
| Fuchs | 440.50.60 |
| Goldhofer | 201697 |
| Holder | 025828 |
| Hüffermann | 2-EL0005-002 |
| Iveco | 5801671043, E5801671043 |
| Jaeger | 251029, 63251005 |
| John Deere | 10 65 74 |
| Kamag | 80310834 |
| Komatsu | 716 935 717, 716 9357 17 |
| Kramer | 000 333 68 11 |
| Krone | 0924579/0, 500924579 |
| Kögel | 310834, 80310834 |
| Langendorf | 1134642 |
| Liebherr | 1 040 030 14, 6 050 049, 6 050 049 08, 6201444 |
| MAN | 81.25435-0005 |
| Mafi | 000,580,2086 |
| Mercedes-Benz | 000 821 38 25, A 000 821 38 25 |
| O&K | 1424326, 159536 |
| Pacton | 180564 |
| Reisch | 5003020 |
| Renders | 99710106 |
| Scania | 17263001, 1934311 |
| Schmitz Cargobull | 060103 |
| Sennebogen | 027061 |
| Sommer | 2800083001 |
| Spierings | 415191 |
| Terex | 0449534, 5050093300, 66635240 |
| Van Hool | 660753012 |
| Vdl | 660753012 |
| Volvo | 14413320, T07HEL003 |
| Ziegler | 402718 |
| Zoomlion | 1022200341 |
