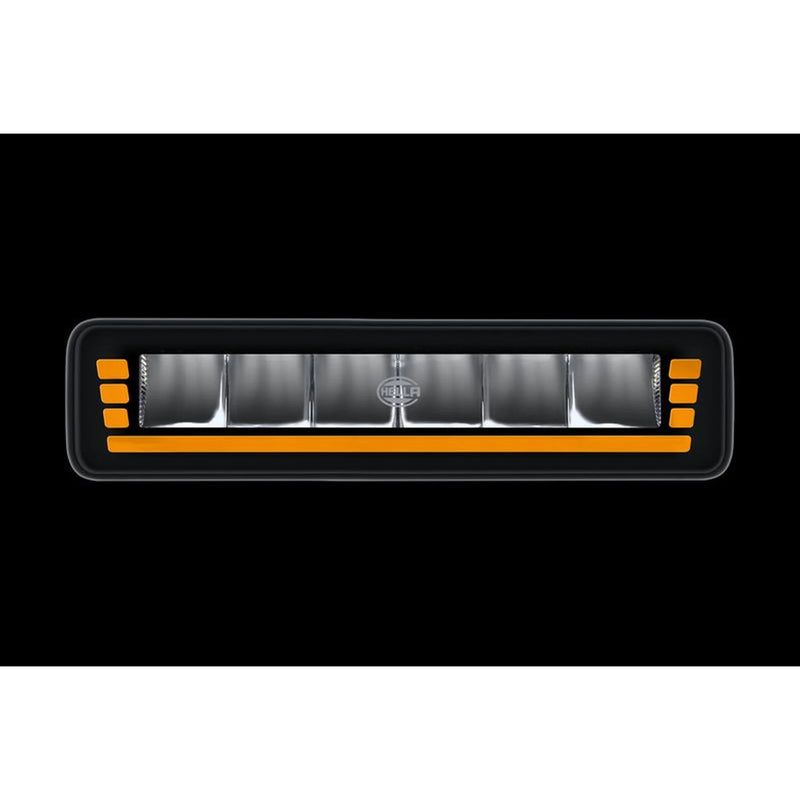

Hella Lightbar Bm Mini Spot 7'' Po 1FB Front 1FB 358 236-241 1FB 358 236-241
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Hella High Beam Headlight (Part Number 1FB 358 236-241) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | High Beam Headlight |
| Position | Front |
| Mounting Type | Bolted |
| Fastening Type | Screw connection |
| Lamp Type | LED |
| Light Design | single line LED |
| Voltage | 24V |
| Voltage from | 10V |
| Voltage to | 30V |
| Rated Power | 24W |
| Fitting Position | Front |
| Height | 44.1mm |
| Overall Height | 56.7mm |
| Length | 176.6mm |
| Depth | 64.8mm |
| Light Function | with position light (LED) |
| Number of light functions | 2 |
| Number of LEDs | 6 |
| Light Distribution | Spot Illumination |
| Light colour | yellow (amber) |
| Colour Temperature | 5700 K |
| Luminous Flux | 2152 lm |
| Theoretical luminous flux | 3540 lm |
| Cable Length | 800mm |
| Lens Colour | Crystal clear |
| Diffusing Lens Material | PC (Polycarbonate) |
| Diffusing Lens Type | Clear diffusing lens |
| Frame Colour | black |
| Housing material | Aluminium |
| Housing Colour | black |
| Registration Type | ECE approved |
| max. light cone range at 1 lux (main light function) | 218m |
| fulfils ECE standard | R148 |
| Protection Type (IP Code) | IP68 |
| Temperature range from | -30°C |
| Temperature range to | +65°C |
| Weight | 500g |
| Plug Type | open cable ends |
| Surface | Anodized |
| Manufacturer Part Number | 1FB 358 236-241 |
