Hella Tail Light / Lamp LED Left
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

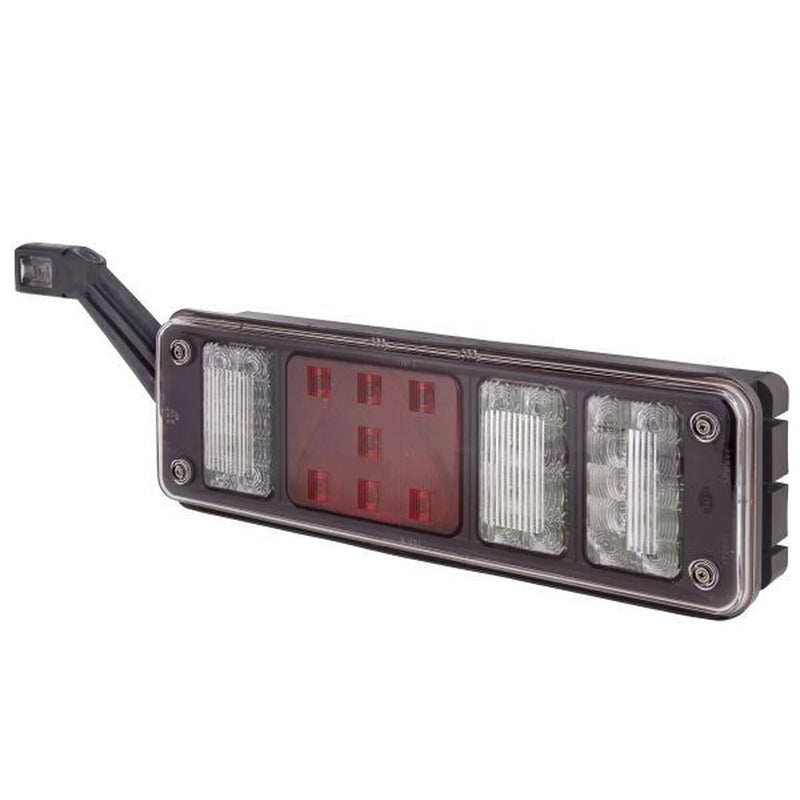

This Hella Tail Light Assembly (Part Number 2VP 340 966-111) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Tail Light Assembly |
| Position | Left |
| Mounting Type | Bolted |
| Fastening Type | for horizontal fastening |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 24V |
| Fitting Position | Left |

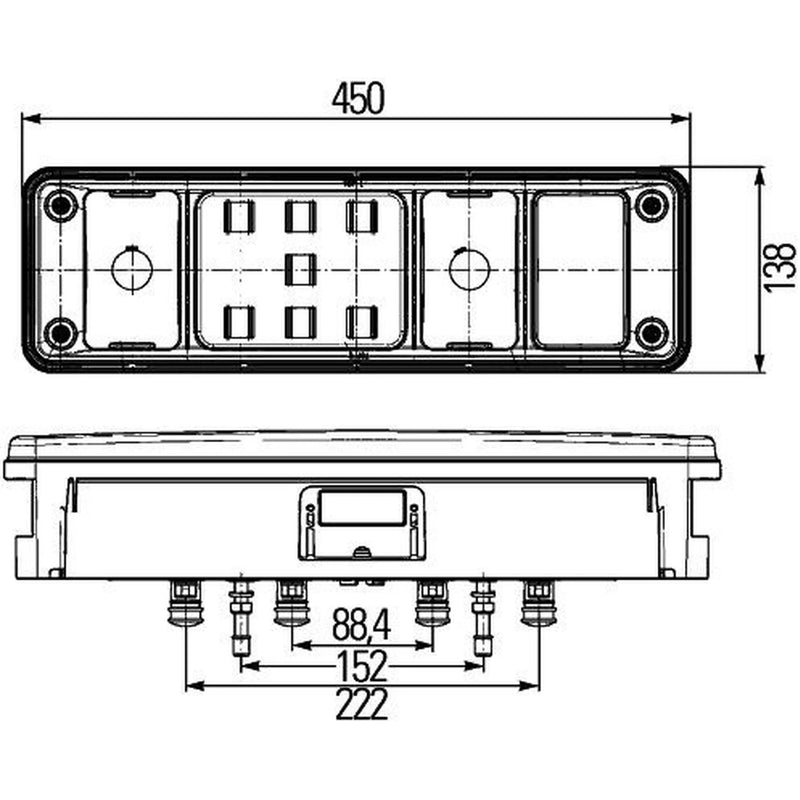

| Height | 94mm |
| Width | 138mm |
| Length | 450mm |
| Light Function | with stop light (LED) |
| Number of light functions | 7 |
| Plug Type | Male |
| Protection Type (IP Code) | IP6K9K |
| Registration Type | not SAE approved |
| Housing Type | Synthetic Material Housing |
| Housing Colour | black |
| Lens Colour | Crystal clear |
| Supplementary Article/Supplementary Info 2 | with direction indicator failure control |
| paired article number | 2VP 340 966-121 |
| Quantity | 1 |
| SVHC | 7439-92-1; Lead |
| Manufacturer Part Number | 2VP 340 966-111 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
Why Buy Hella?
Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
