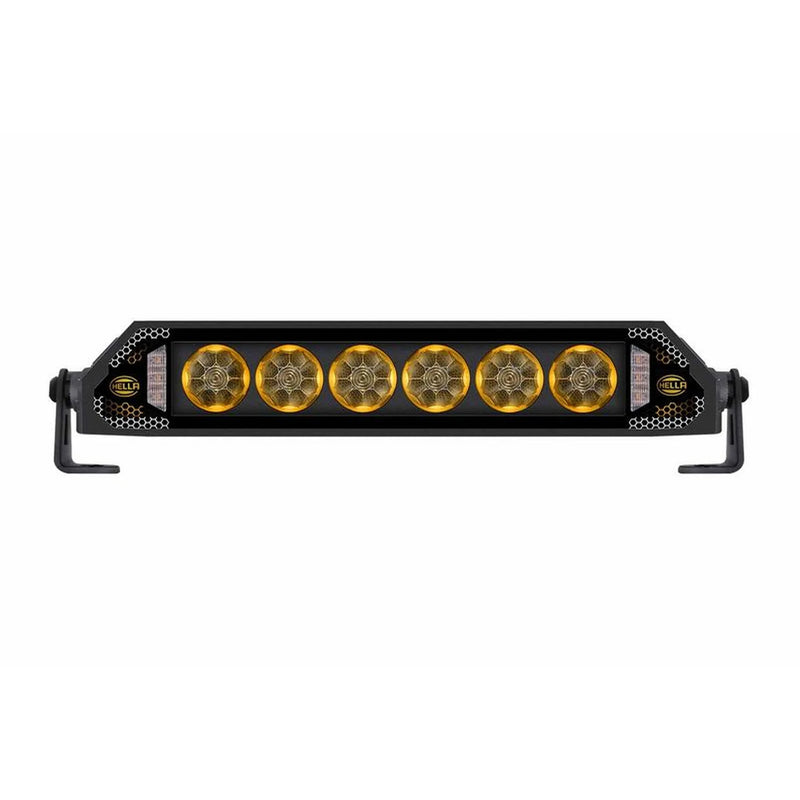

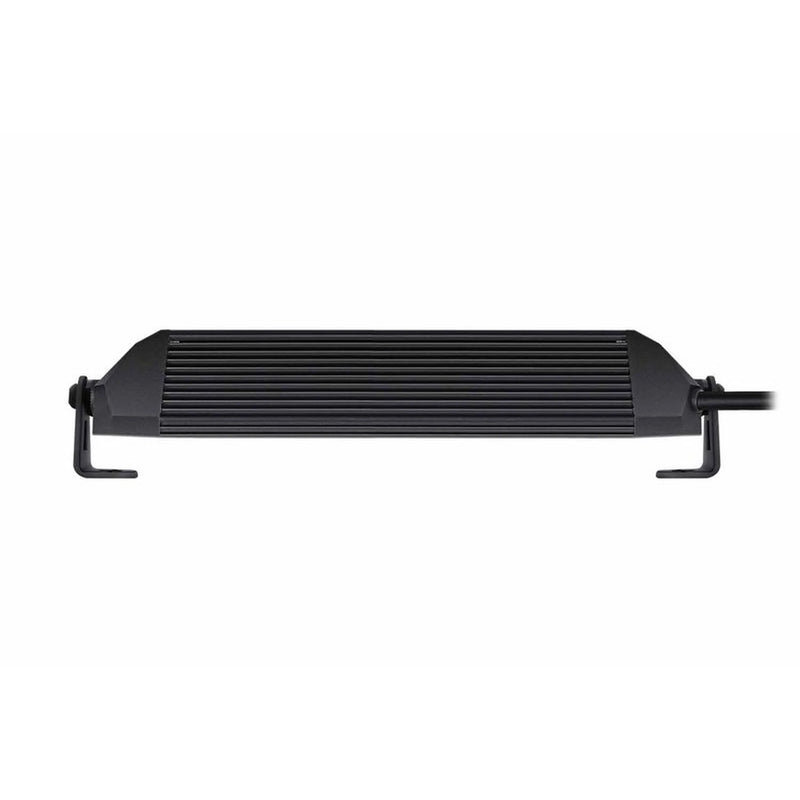

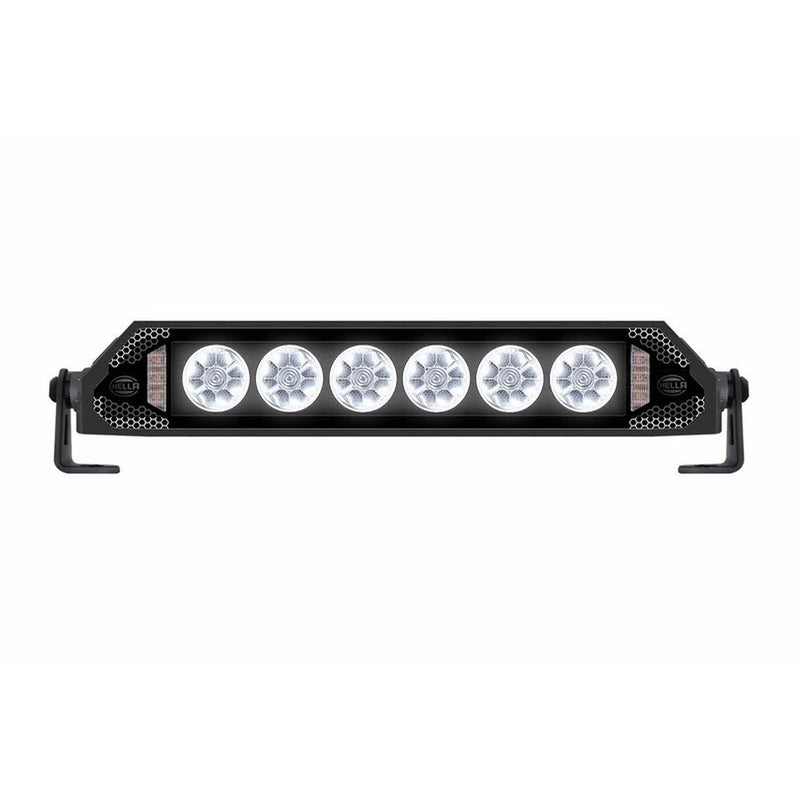

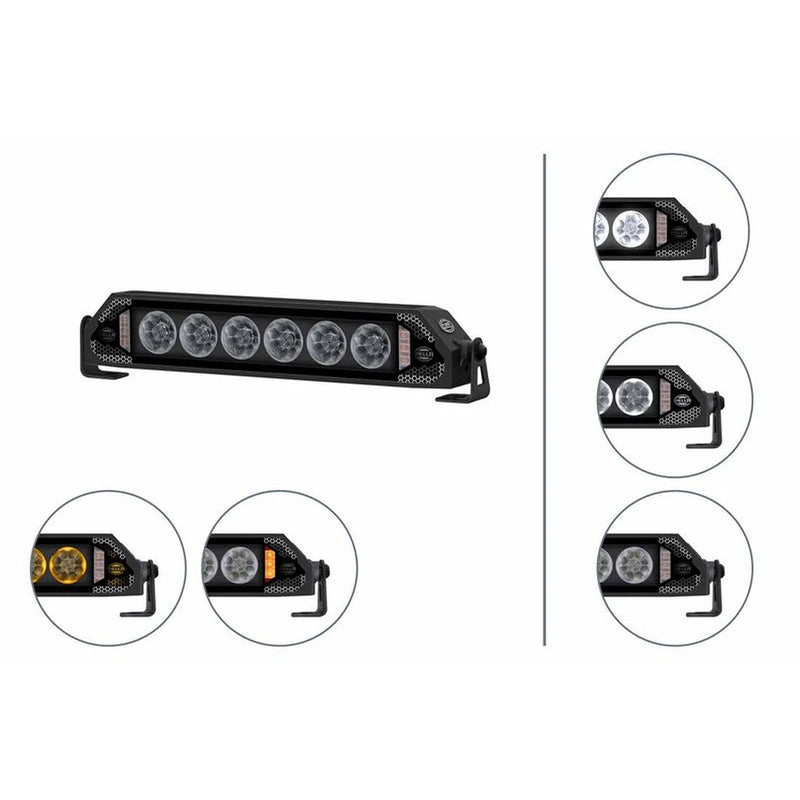

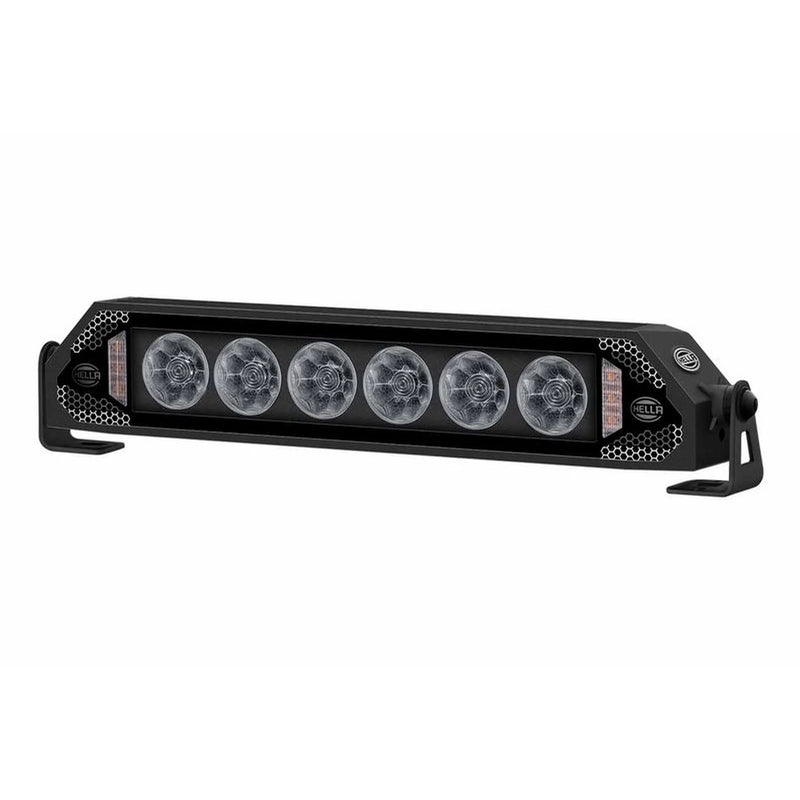

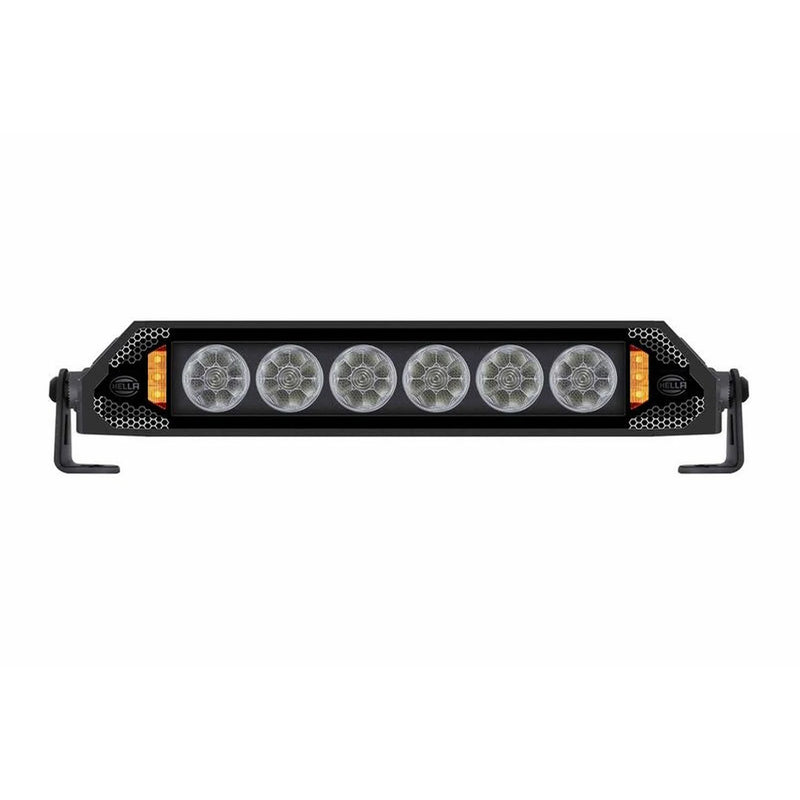

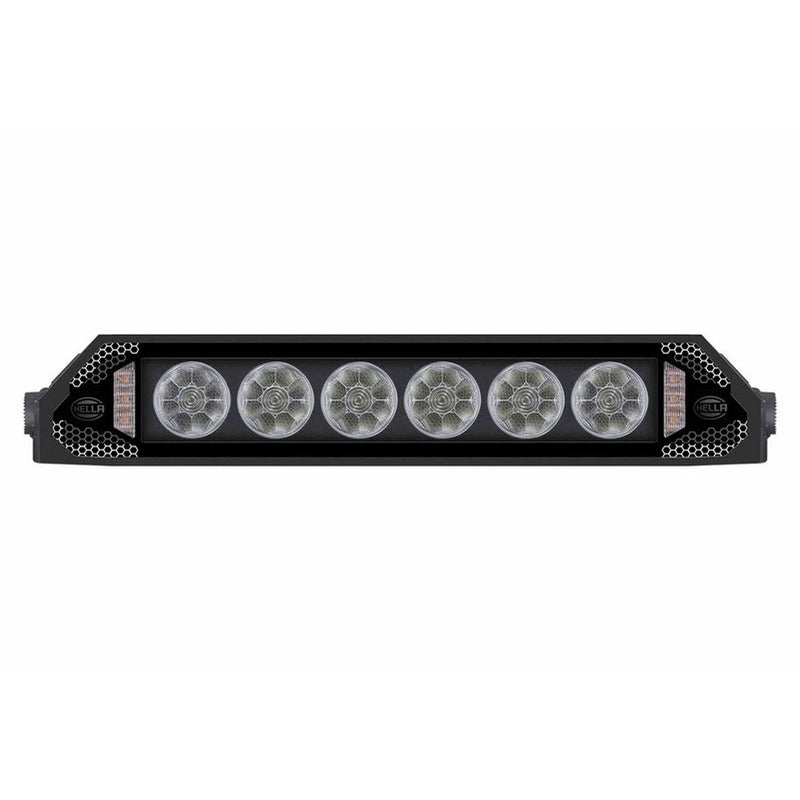

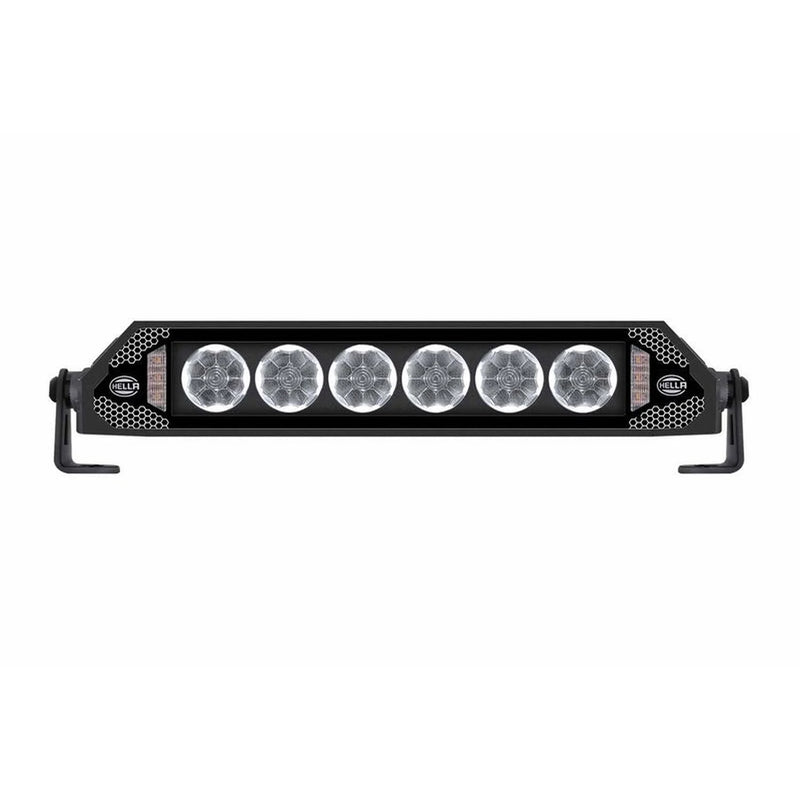

Hella Spotlight Dynaray 14'' Slim Spot Fl 1FJ Front 1FJ 359 100-111 1FJ 359
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Hella High Beam Headlight (Part Number 1FJ 359 100-111) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | High Beam Headlight |
| Position | Front |
| Mounting Type | Bolted |
| Fastening Type | Screw connection |
| Lamp Type | LED |
| Light Design | single line LED |
| Voltage | 24V |
| Rated Power | 836W |
| Voltage from | 10V |
| Voltage to | 30V |
| Fitting Position | Front |
| Height | 63mm |
| Length | 366mm |
| Depth | 61.5mm |
| Overall Height | 81mm |
| Light Function | High-boost |
| Number of light functions | 3 |
| Number of LEDs | 40 |
| Cable Length | 1500mm |
| Light colour | yellow (amber) |
| Colour Temperature | 6800 K |
| Plug Type | DEUTSCH plug |
| Frame Colour | black |
| Lens Colour | Crystal clear |
| Housing material | Aluminium |
| Housing Colour | black |
| Diffusing Lens Type | Clear diffusing lens |
| Diffusing Lens Material | PC (Polycarbonate) |
| Protection Type (IP Code) | IP67 |
| Registration Type | ECE approved |
| fulfils ECE standard | R65 |
| fulfils EMC/CISPR standard | CISPR 25 Class 5 |
| Temperature range from | -40°C |
| Temperature range to | +65°C |
| Reference number | 37.5 |
| Theoretical luminous flux | 4800 lm |
| Theoretical luminous flux in Boost mode | 3500 lm |
| Luminous Flux | 2400 lm |
| Luminous in boost mode | 3500 lm |
| max. light cone range at 1 lux (main light function) | 383m |
| max. light cone range at 1 lux (high boost function) | 453m |
| Weight | 1590g |
| Surface | Anodized |
| Manufacturer Part Number | 1FJ 359 100-111 |
