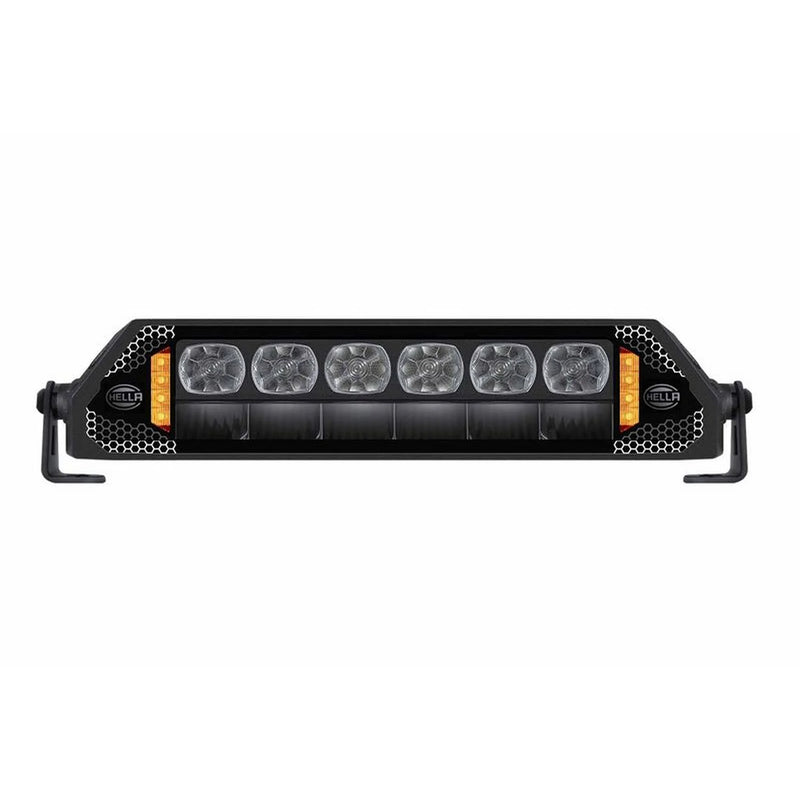

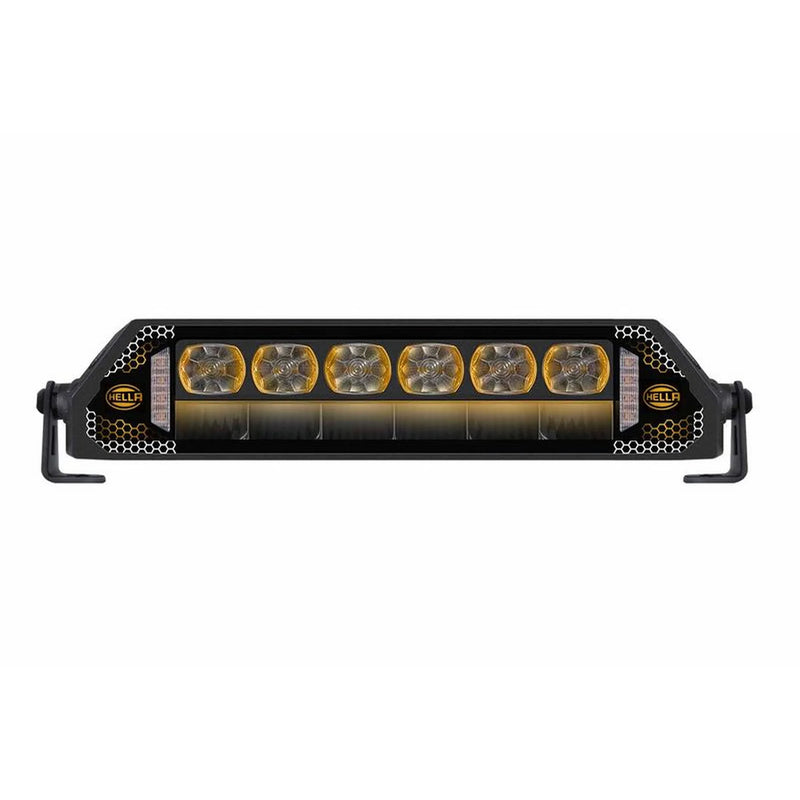

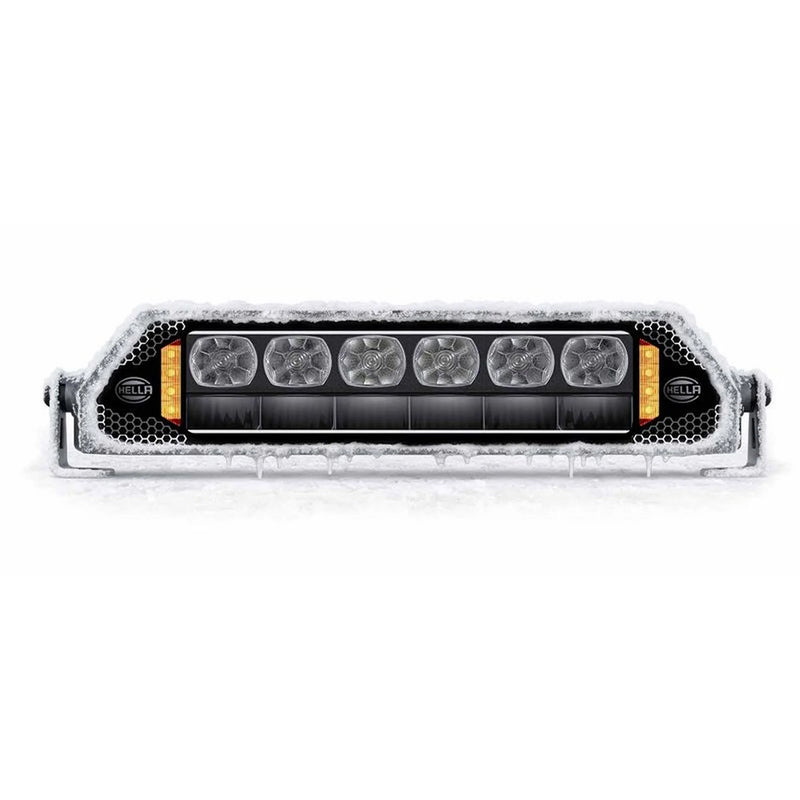

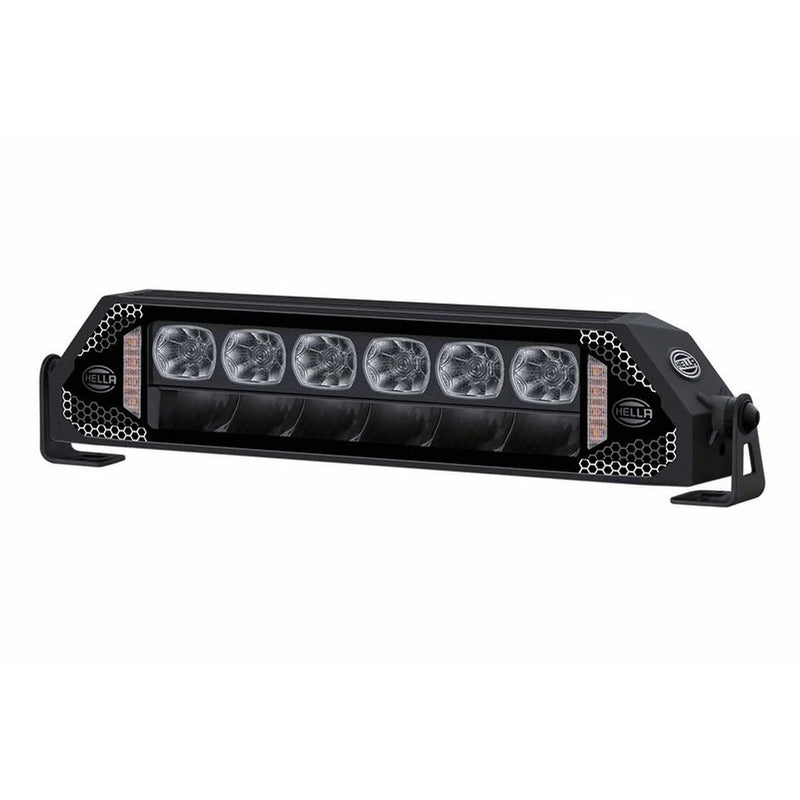

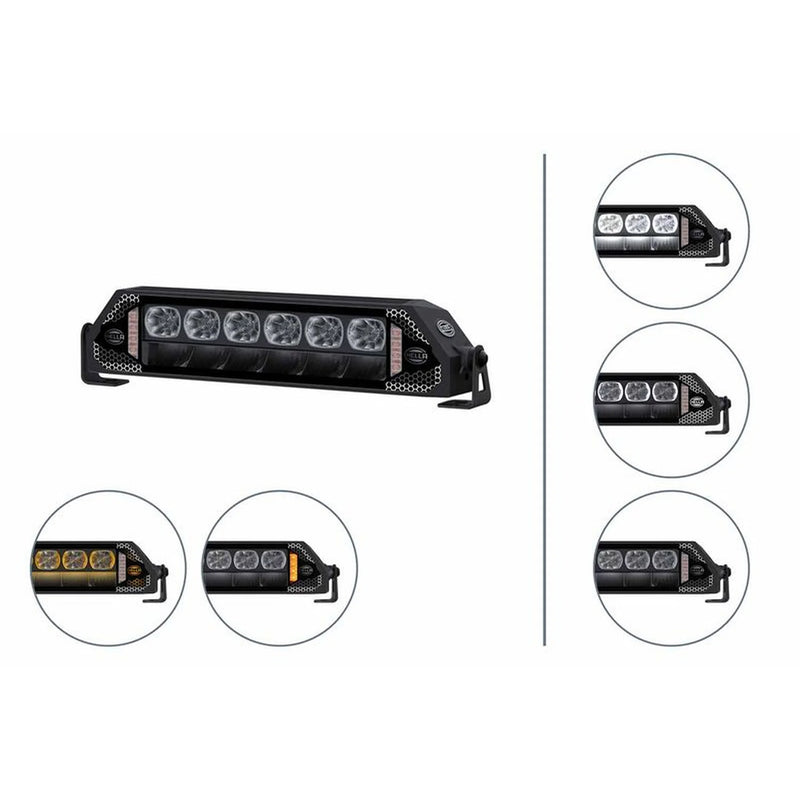

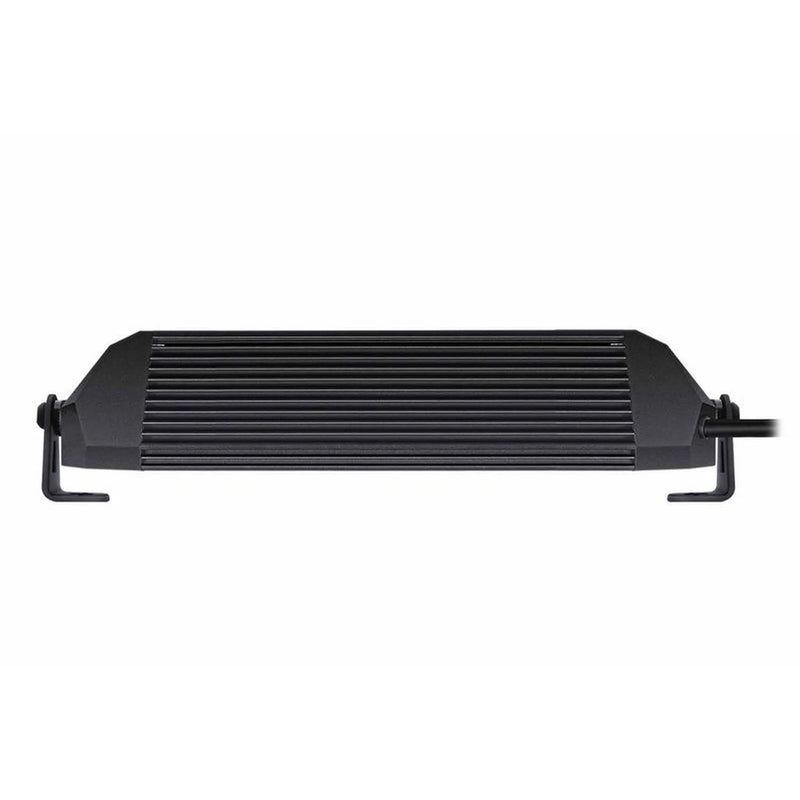

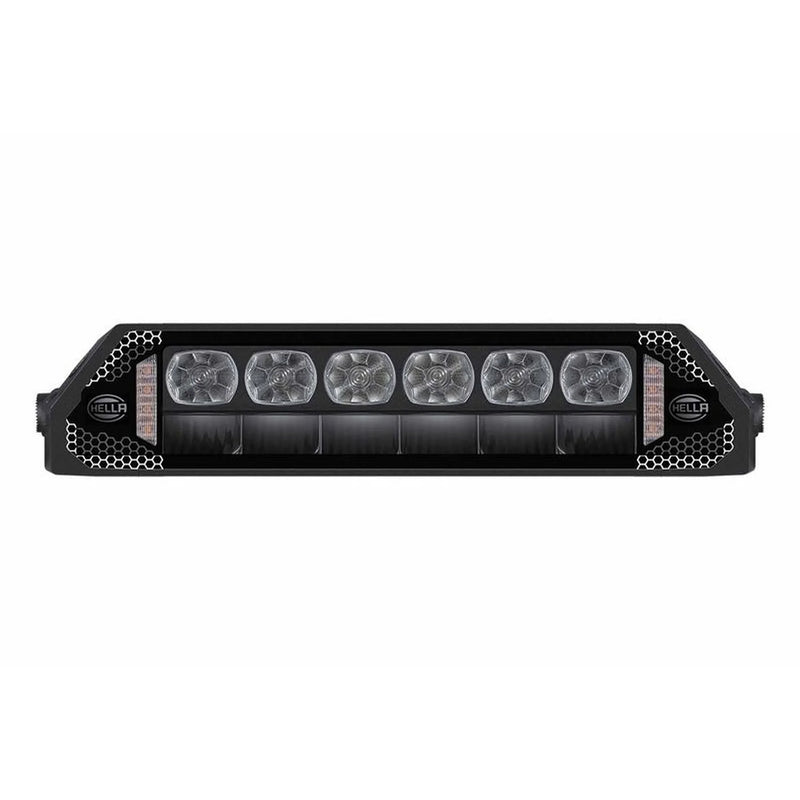

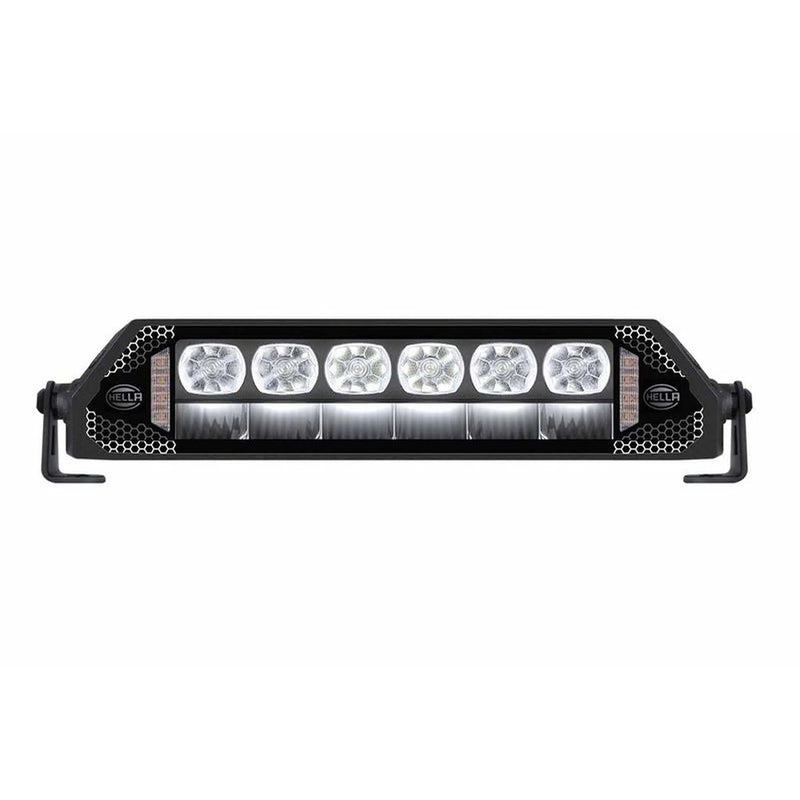

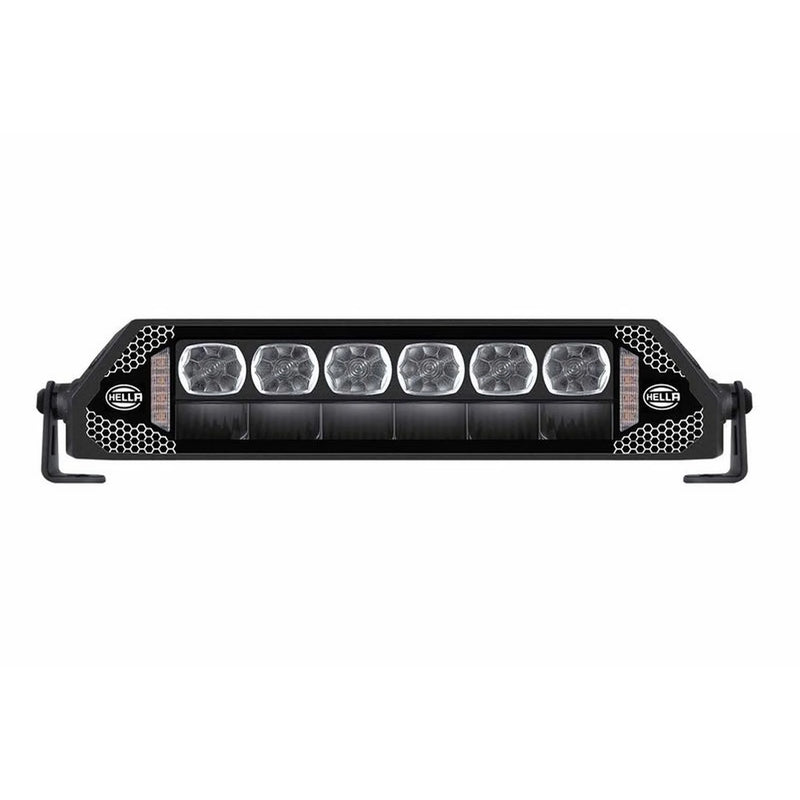

Hella Spotlight Dynaray 15'' Dr Spot Fl 1FJ Front 1FJ 359 100-131 1FJ 359
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Hella High Beam Headlight (Part Number 1FJ 359 100-131) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | High Beam Headlight |
| Position | Front |
| Mounting Type | Bolted |
| Fastening Type | Screw connection |
| Lamp Type | LED |
| Light Design | double line LED |
| Voltage | 24V |
| Rated Power | 114W |
| Voltage from | 10V |
| Voltage to | 30V |
| Fitting Position | Front |
| Height | 78mm |
| Length | 386mm |
| Depth | 75mm |
| Overall Height | 90mm |
| Light Function | High-boost |
| Number of light functions | 3 |
| Number of LEDs | 50 |
| Cable Length | 1500mm |
| Light colour | yellow (amber) |
| Colour Temperature | 6800 K |
| Plug Type | DEUTSCH plug |
| Frame Colour | black |
| Lens Colour | Crystal clear |
| Housing material | Aluminium |
| Housing Colour | black |
| Diffusing Lens Type | Clear diffusing lens |
| Diffusing Lens Material | PC (Polycarbonate) |
| Protection Type (IP Code) | IP67 |
| Registration Type | ECE approved |
| fulfils ECE standard | R65 |
| fulfils EMC/CISPR standard | CISPR 25 Class 5 |
| Temperature range from | -40°C |
| Temperature range to | +65°C |
| Reference number | 45 |
| Theoretical luminous flux | 6600 lm |
| Theoretical luminous flux in Boost mode | 6600 lm |
| Luminous Flux | 2110 lm |
| Luminous in boost mode | 3850 lm |
| max. light cone range at 1 lux (main light function) | 430m |
| max. light cone range at 1 lux (high boost function) | 582m |
| Weight | 2045g |
| Surface | Anodized |
| Manufacturer Part Number | 1FJ 359 100-131 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
Why Buy Hella?
Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
