Description

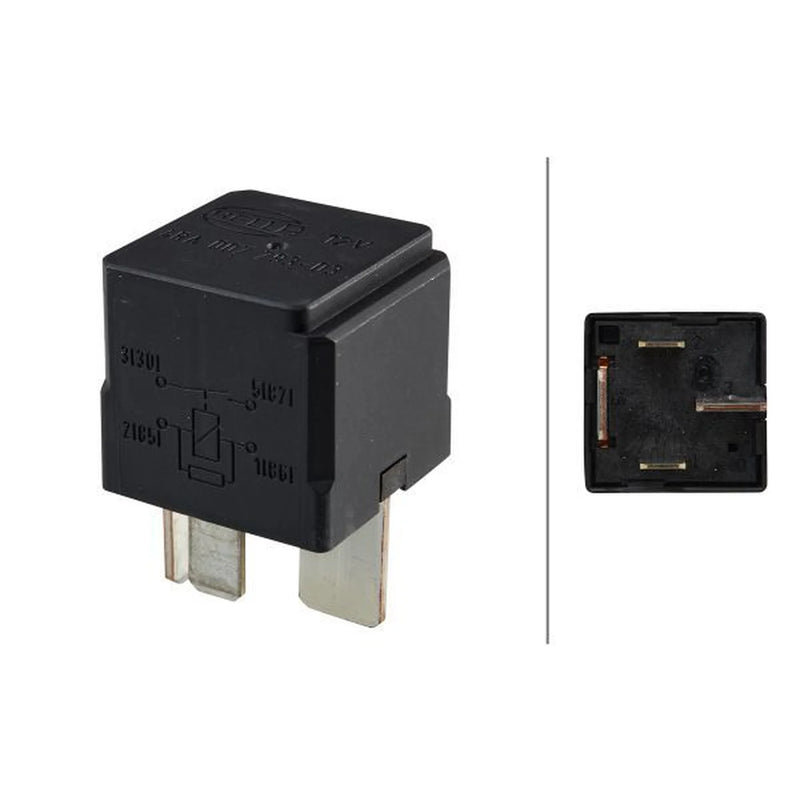

This Hella Relay, main current (Part Number 4RA 007 793-031) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Relay, main current |
| Relay function | Normally open contact |
| Supplementary Article/Supplementary Info 2 | with resistor |
| Supplementary Article/Supplementary Info | without holder |
| Protection Type (IP Code) | IP54 |
| Voltage | 12V |
| Capacity at 12V | 50A |
| Corresponds to the original part in colour | yellow |
| Colour | black |
| for OE number | 90226846 |
| Inductive Load | 46A |
| Capacitive Load | 44A |
| Ohmic Load | 50A |

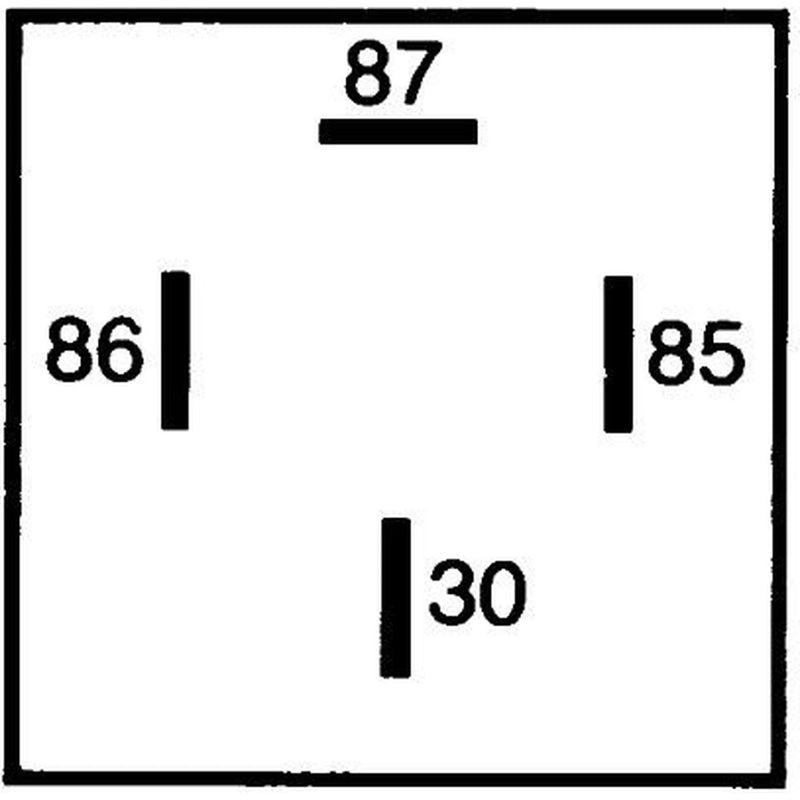

| Number of pins | 4 |

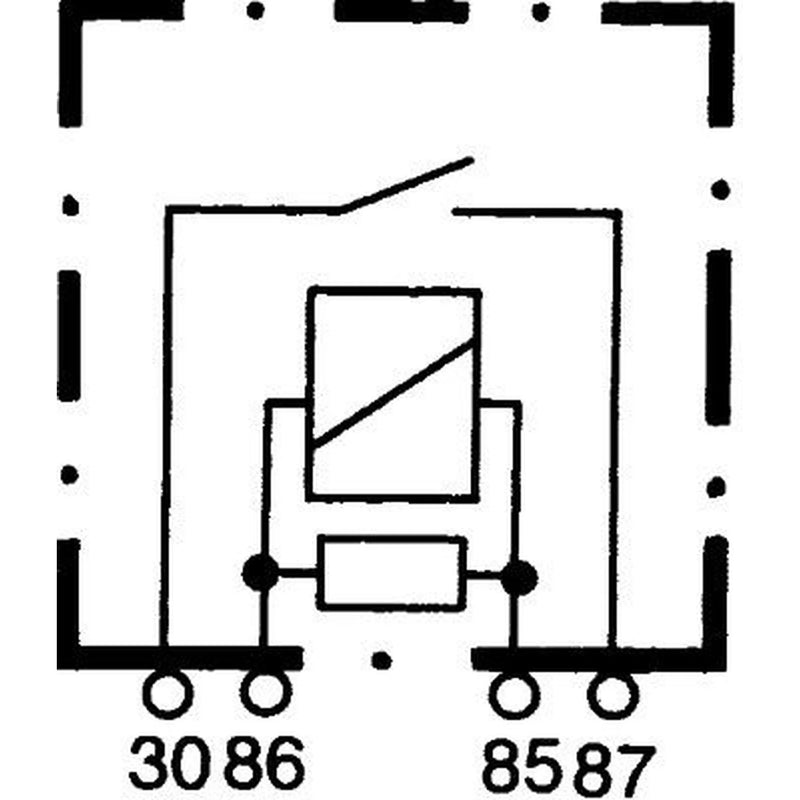

| Wiring Diagramme | S2 |
| Switch Function | High Performance Contact |
| Plug Type ID | B3 |
| Temperature range | 80°C |
| SVHC | 1303-86-2; Diboron trioxide |
| Manufacturer Part Number | 4RA 007 793-031 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Aebi | 44905138 |
| Agco | 4270844M1 |
| Agromehanika | 557074 |
| Case Ih | 368459A1 |
| Caterpillar | 459-6044 |
| Fendt | 4270844M1 |
| JCB | 716/R5752, 8121/01060 |
| John Deere | AL 20 7376 |
| Jungheinrich | 52027388 |
| Kenworth | 007793031 |
| Kubota | W21TS02126 |
| Linde | 7916291274 |
| Manitou | 746004 |
| Massey Ferguson | 4 270 844 M1 |
| Maybach | 002 542 02 19, 002 542 15 19, 002 542 26 19, 002 542 26 19 28, 002 542 26 19 64, 002 542 87 19, 002 542 88 19, A 002 542 02 19, A 002 542 15 19, A 002 542 26 19, A 002 542 26 19 28, A 002 542 26 19 64, A 002 542 87 19, A 002 542 88 19 |
| Mercedes-Benz | 002 542 02 19, 002 542 15 19, 002 542 26 19, 002 542 26 19 28, 002 542 26 19 64, 002 542 87 19, 002 542 88 19, A 002 542 02 19, A 002 542 15 19, A 002 542 26 19, A 002 542 26 19 28, A 002 542 26 19 64, A 002 542 87 19, A 002 542 88 19, A 254 226 19 28, A 254 226 19 64 |
| Opel | 1238612, 5246350, 90 226 846, 9522061 |
| Reform | 900540543 |
| Sany | 60222130 |
| Steinbock | 520 27388 |
| Still | 7916291274 |
