Description

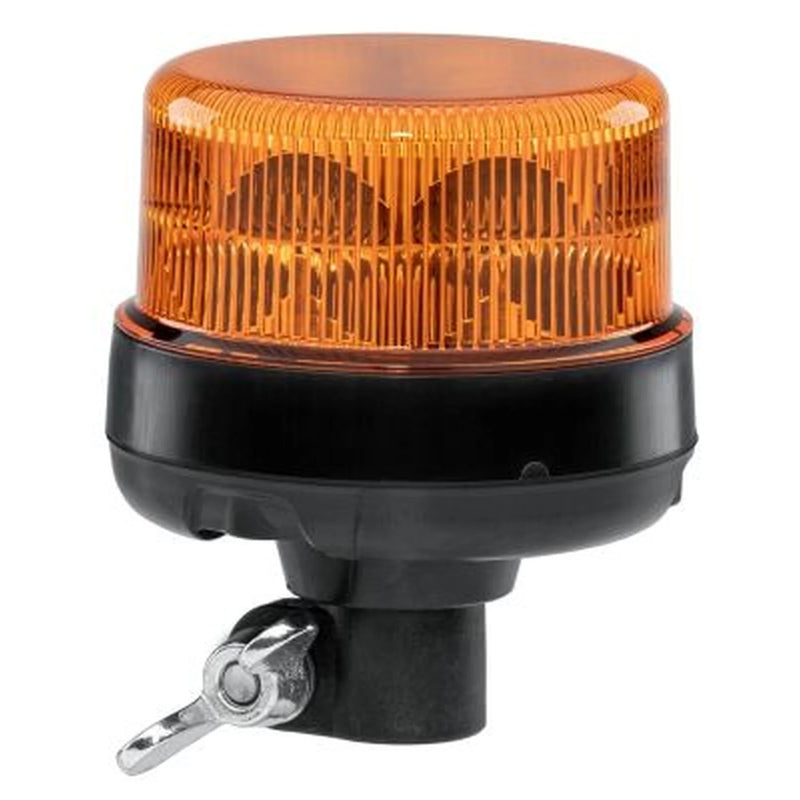

This Hella Rotating Beacon (Part Number 2XD 066 146-011) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Rotating Beacon |
| Mounting Type | Flexible pipe sockets |
| Lamp Type | LED |
| Light Design | LED |
| Voltage | 24V |
| Power Consumption | 19W |

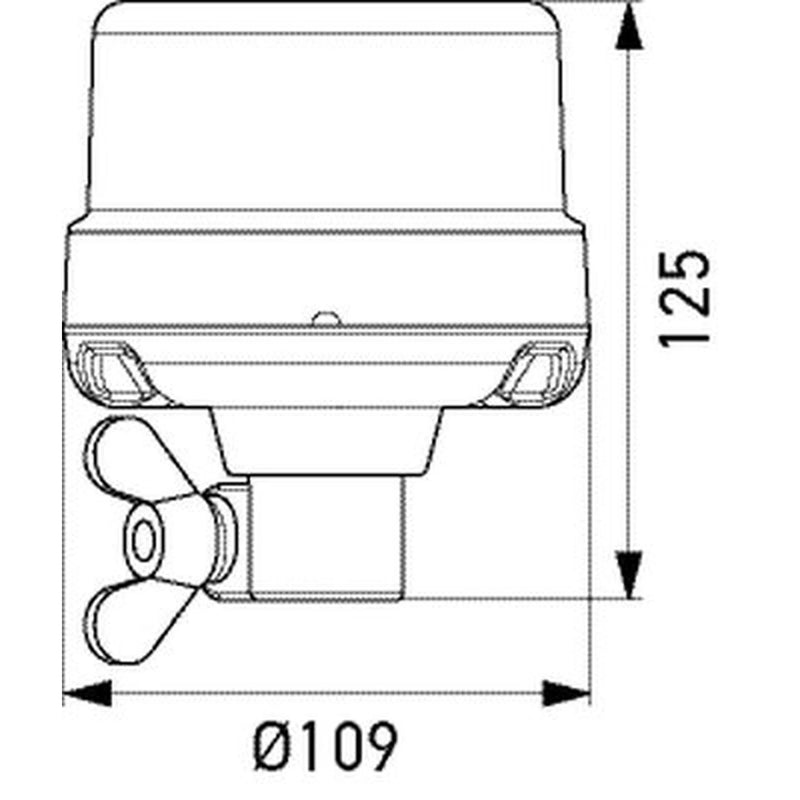

| Height | 125mm |
| Outer Diameter 1 | 109mm |
| Light Function | with flashing warning signal |
| Number of LEDs | 16 |
| Light colour | yellow (amber) |
| Protection Type (IP Code) | IP6K9K |
| Registration Type | SAE approved |
| fulfils ECE standard | TA1 |
| fulfils test standard | RCM |
| Lens Colour | yellow (amber) |
| Housing Colour | black |
| Flash rate per minute | 126 |
| Housing material | EPDM (ethylene propylene diene Monomer (M-class) rubber) |
| Temperature range from | -40°C |
| Temperature range to | +60°C |
| Weight | 338g |
| Diffusing Lens Material | PC (Polycarbonate) |
| Quantity | 1 |
| fulfils EMC/CISPR standard | Class 5 |
| fulfils SAE standard | J845 Class 1 |
| Cable Length | 150mm |
| Plug Type ID | DIN standard |
| Manufacturer Part Number | 2XD 066 146-011 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Agco | ACX4222570 |
| Amazone | NA305 |
| Bucher | 09300189-0 |
| DAF | 2281056 |
| Dieci | BEM2148, BEM2148 V.00 |
| Grimme | B94.09228 |
| Hitachi | ZE0000022100 |
| Hüffermann | 2-EL0003-139 |
| Iseki | 32.7779.1 |
| John Deere | AXE92636 |
| Kubota | 3J03739951 |
| Weiro | 26825 |
| Yanmar | 5050022302 |
