Hella Led-Spotlight - 12/24V - Rectangular - Off-Road Li Left 1FE 016 773-021
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Hella High Beam Headlight (Part Number 1FE 016 773-021) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | High Beam Headlight |
| Position | Left |
| Mounting Type | Bolted |
| Fastening Type | Vertical |
| Lamp Type | LED |
| Voltage | 24V |
| Voltage from | 9V |
| Voltage to | 32V |

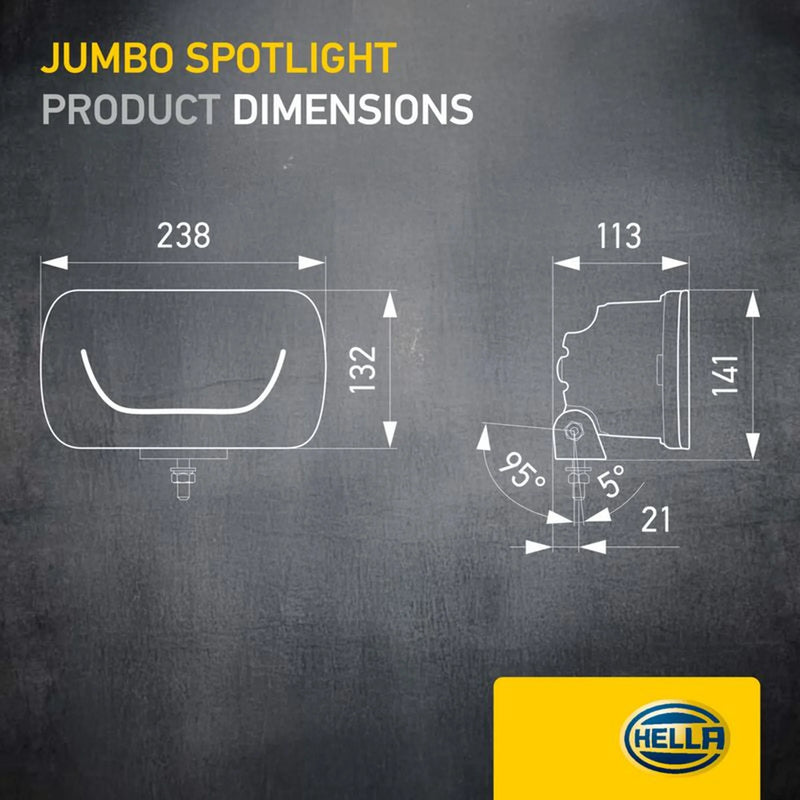

| Overall Height | 141mm |
| Width | 238mm |
| Depth | 113mm |
| Light Distribution | Off-Road Illumination |
| Light Function | with position light (LED) |
| Light colour | yellow (amber) |
| Number of light functions | 3 |
| Cable Length | 800mm |
| Lens Colour | Crystal clear |
| Shape | rectangular |
| Housing material | Thermoplast |
| Diffusing Lens Material | Plastic |
| Fitting Position | Left |
| Height | 132mm |
| Fitting Depth | 23mm |
| Housing Type | Synthetic Material Housing |
| Housing Colour | black |
| Length | 5 inch |
| Protection Type (IP Code) | IPX9K |
| fulfils ECE standard | R10 |
| Colour Temperature | 6000 K |
| Luminous Flux | 541 lm |
| Weight | 680g |
| Diffusing Lens Type | Clear diffusing lens |
| Plug Type | open cable ends |
| Power Consumption | 2.7W |
| Number of LEDs | 5 |
| Quantity | 1 |
| SVHC | 7439-92-1; Lead |
| Manufacturer Part Number | 1FE 016 773-021 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
Why Buy Hella?
Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
