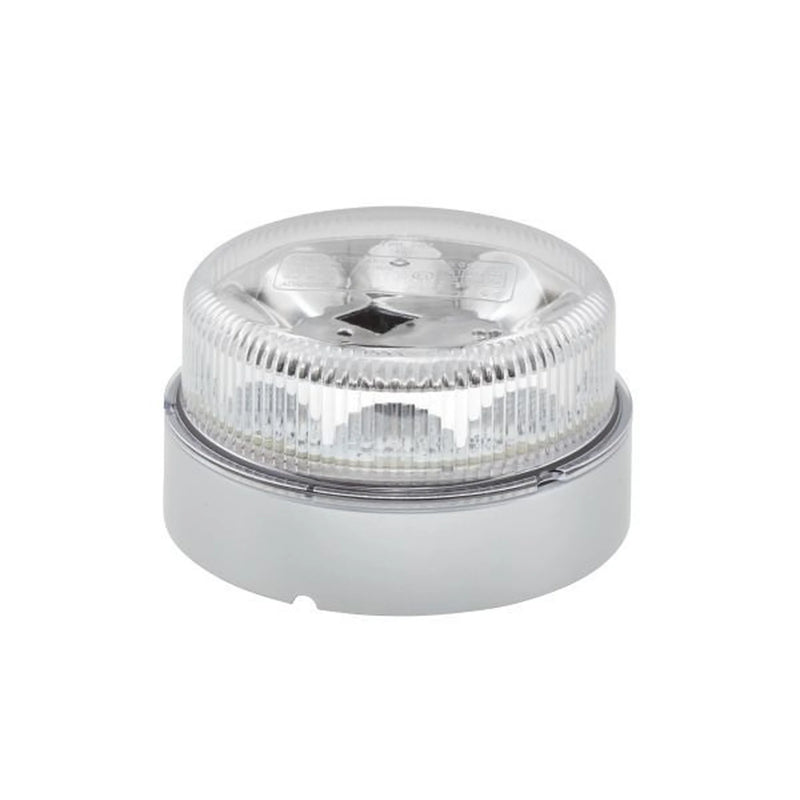

Hella Strobe-Type Beacon High
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Hella Strobe-type Beacon (Part Number 2XD 012 980-001) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Strobe-type Beacon |
| Mounting Type | Bolted |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 24V |
| Height | 88mm |
| Outer Diameter 1 | 149mm |
| Light Function | with flashing warning signal |
| Light colour | yellow (amber) |
| Number of LEDs | 10 |
| Plug Type | Euro flat plug |
| Protection Type (IP Code) | IP6K9K |
| Registration Type | SAE approved |
| fulfils SAE standard | J845 Class 1 |
| fulfils ECE standard | TA1 |
| fulfils EMC/CISPR standard | Class 5 |
| Lens Colour | Crystal clear |
| Housing Colour | silver |
| Power Consumption | 16W |
| Flash rate per minute | 121 |
| Housing material | Aluminium |
| Temperature range from | -40°C |
| Temperature range to | +60°C |
| Weight | 830g |
| Cable Length | 150mm |
| Diffusing Lens Material | PC (Polycarbonate) |
| Reverse polarity protection | Yes |
| Quantity | 1 |
| Supplementary Article/Supplementary Info 2 | Electromagnetic Compatibility (EMC) |
| LED Colour | yellow (amber) |
| Assembly number | up to 4 |
| Manufacturer Part Number | 2XD 012 980-001 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Aebi | 1069182-4 |
| Bucher | 7020725 |
| DAF | 1541963, 1561963 |
| Faun | 5644996 |
| Humbaur | 409.00217 |
| Iveco | 500051178 |
| Kamag | 61301464 |
| Kempf | 142687 |
| Langendorf | 1315938 |
| Liebherr | 13161809 |
| Mafi | 000,580,0729 |
| Scania | 20223245, 2870468, SP1068034 |
| Schwarzmüller | 102472 |
| Spierings | 1073270 |
| Tatra | TW05834 |
Why Buy Hella?
Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
