Description

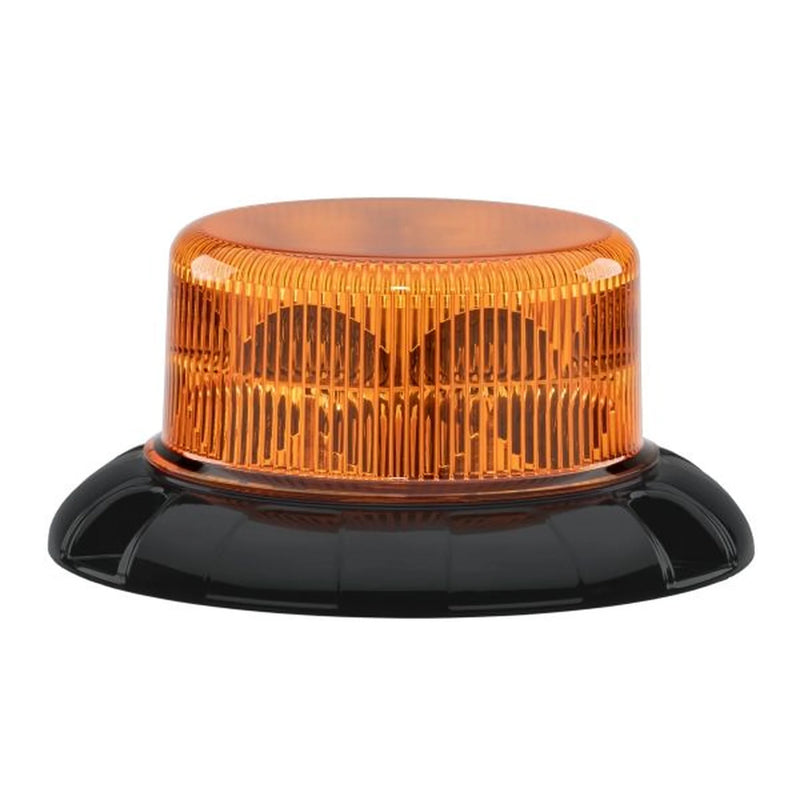

This Hella Strobe-type Beacon (Part Number 2XD 066 146-041) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Hella |
|---|---|
| Part Type | Strobe-type Beacon |
| Mounting Type | Bolted |
| Voltage | 24V |
| Lamp Type | LED |
| Light Design | LED |

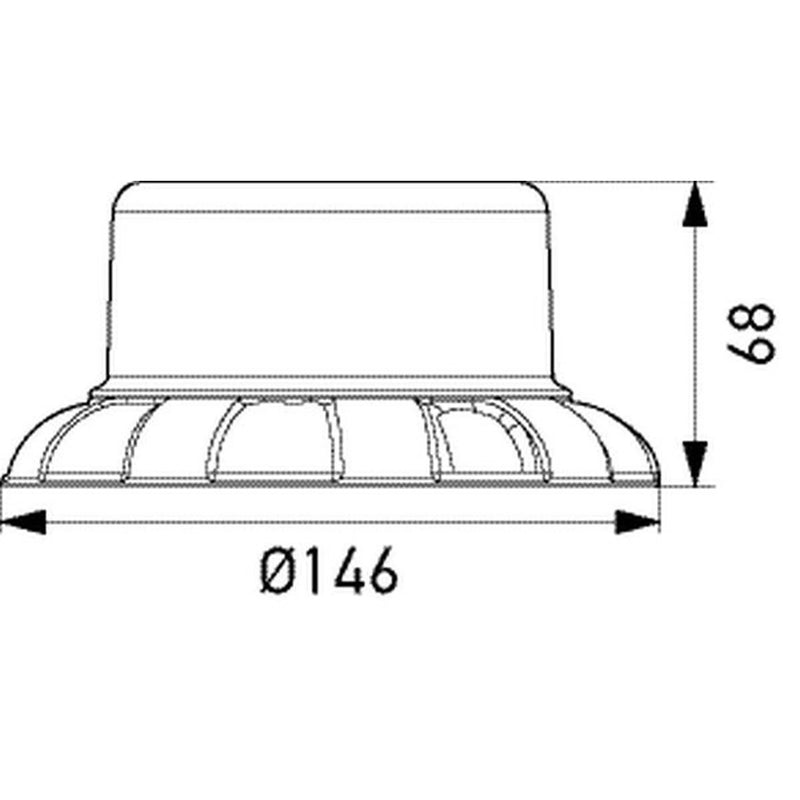

| Height | 68mm |
| Light Function | with flashing warning signal |
| Flash rate per minute | 126 |
| Housing Colour | black |
| Lens Colour | yellow (amber) |
| Outer Diameter 1 | 146mm |
| Light colour | yellow (amber) |
| Registration Type | ICAO-tested |
| Protection Type (IP Code) | IP6K9K |
| fulfils ECE standard | R10 |
| fulfils SAE standard | J845 Class 1 |
| fulfils EMC/CISPR standard | Class 5 |
| Housing material | ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) |
| Weight | 256g |
| Timing Chain Size | 150 |
| Plug Type | Blade Terminal |
| Number of LEDs | 16 |
| Operating temperature from | -40°C |
| Operating temperature to | +60°C |
| Power Consumption | 19W |
| Diffusing Lens Material | PC (Polycarbonate) |
| Manufacturer Part Number | 2XD 066 146-041 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
Why Buy Hella?
Hella is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
