Bosch Starter Motor 12V 1.7kW 9 Teeth fits VW Passat B1 1977-1980 1.5
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Bosch Starter (Part Number 0 986 015 320) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

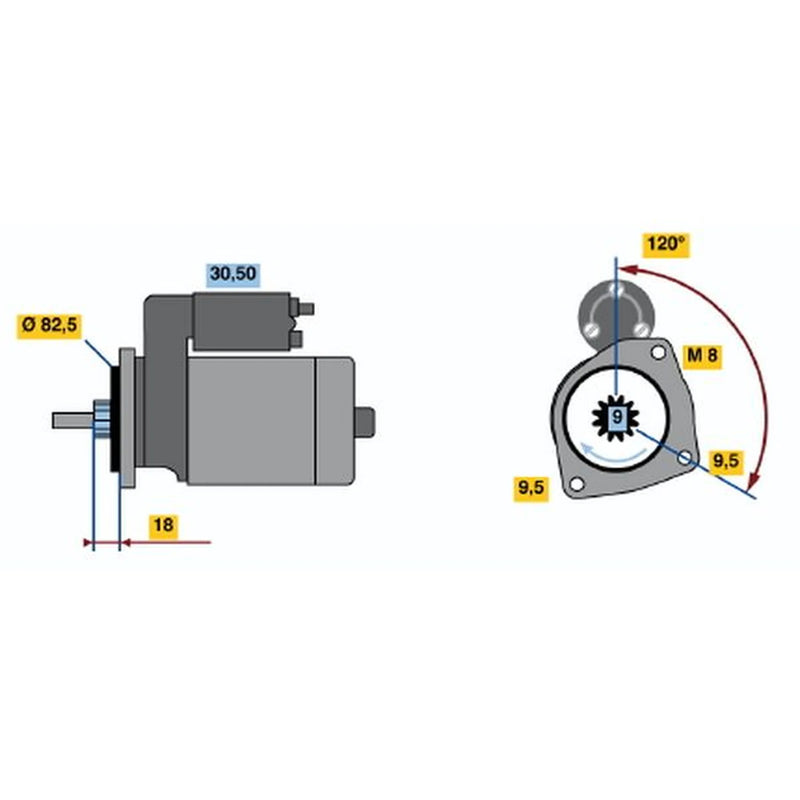

Specifications
| Brand | Bosch |
|---|---|
| Part Type | Starter |
| Voltage | 12V |
| Rated Power | 1.7kW |
| Number of mounting bores | 2 |
| Number of threaded holes | 1 |
| Number of Teeth | 9 |
| Clamp | 30 |
| Flange Diameter | 82.5mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | 15mm |
| Starter Type | Self-supporting |
| Thread Size 1 | M8x1.25 |
| Bore Diameter | 9.5mm |
| Bore Ø 3 | 9.5mm |
| Length | 270mm |
| Position/Degree | rechts |
| Mounting Angle | 120 degrees |
| Mounting bore angle measurement | 120 degree |
| Manufacturer Part Number | 0 986 015 320 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
| Make | Model | Years |
|---|---|---|
| VW | PASSAT B1 (32) | 1977-1980 |
| VW | PASSAT B1 Estate (33) | 1977-1980 |
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Linde | 0009710107, 0009710197 |
| VW | 068 911 023 L, 068 911 023 LX |
Why Buy Bosch?
Bosch is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
