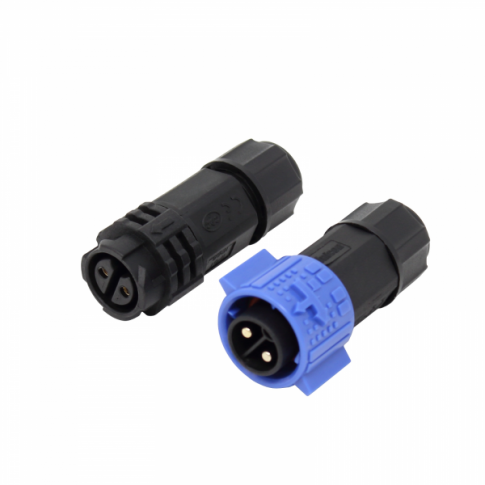

Photonic Universe Pair of 2-pin IP67 waterproof locking connectors 300V 20A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
These versatile 2-pin connectors have an IP67 protection rating and a UL94-V0 flame-resistant rating, making them highly durable and reliable in protecting the internal electric connections/wires in harsh environment applications, such as outdoor lighting systems, marine equipment, PV systems and outdoor security cameras/CCTV.
They feature an easy-to-use interlocking mechanism which does not require any special tools; this keeps the connection secure from accidentally unplugging, whilst allowing for fast connection/disconnection whenever necessary.
These connectors are rated for voltages and currents of up to 300V/20A. They are only suitable for dual-core round cables and can only accept cables with a 1.0-4.0mm2 gauge.
Please note: the internal ends of the connector pins are designed for soldering to the cable for the best performance.
Technical Specification
Specifications:
- Number of contacts/pins: 2
- Withstanding voltage: 1500V
- Protection level: IP67
- Flame-resistant rating: UL94-V0
- Cable gauge: 1.0 - 4.0mm2
- Cable outer diameter: ?4.5 - ?11
- Operating temperature: -40°C - 105°C
