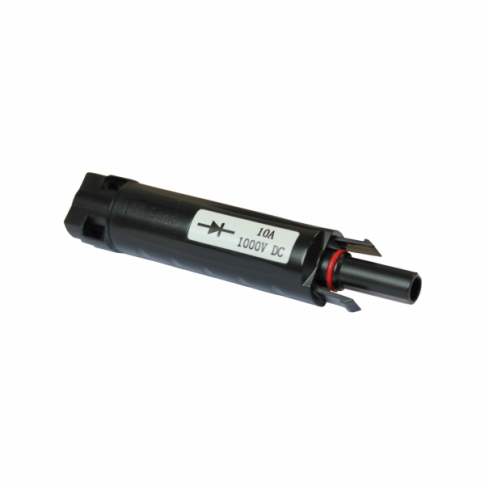

Photonic Universe MC4-compatible adaptor with 10A blocking diode
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
This MC4-compatible adaptor with a 10A blocking diode allows you to connect several solar panels in parallel (to common positive and common negative terminals) and run them through a single solar charge controller. It eliminates the risk of back flow of power through solar panels, particularly when different sized solar panels are used in the same array, or when one or more solar panels are prone to shading.
The adaptor can also be used for a single solar panel as a blocking diode, to ensure that no battery power is fed back through the solar panel at night time.
Subject to the maximum current and voltage rating of the adaptor (1000V 10A DC), it can also be used in more complex solar arrays with multiple strings of solar panels connected in series, in parallel, to ensure that power only flows in one direction.
The adaptor features a male MC4-compatible connector and a female MC4-compatible socket, which means it can easily be plugged into the end of a solar panel cable with a compatible connector.
The adaptor can be easily disassembled if a diode inside needs to be replaced, and quickly reassembled. It is also fully waterproof, and suitable for outdoor applications.
Technical Specification
