Mains Hook Up Inlet Socket White for Motorhome, Caravan, Camper, Boat PO114
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.

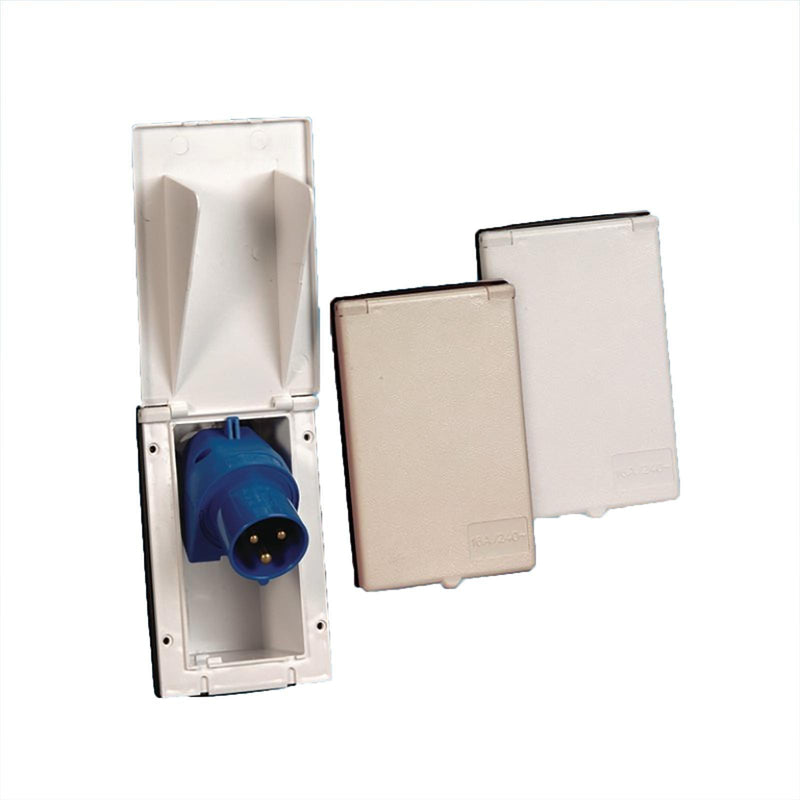

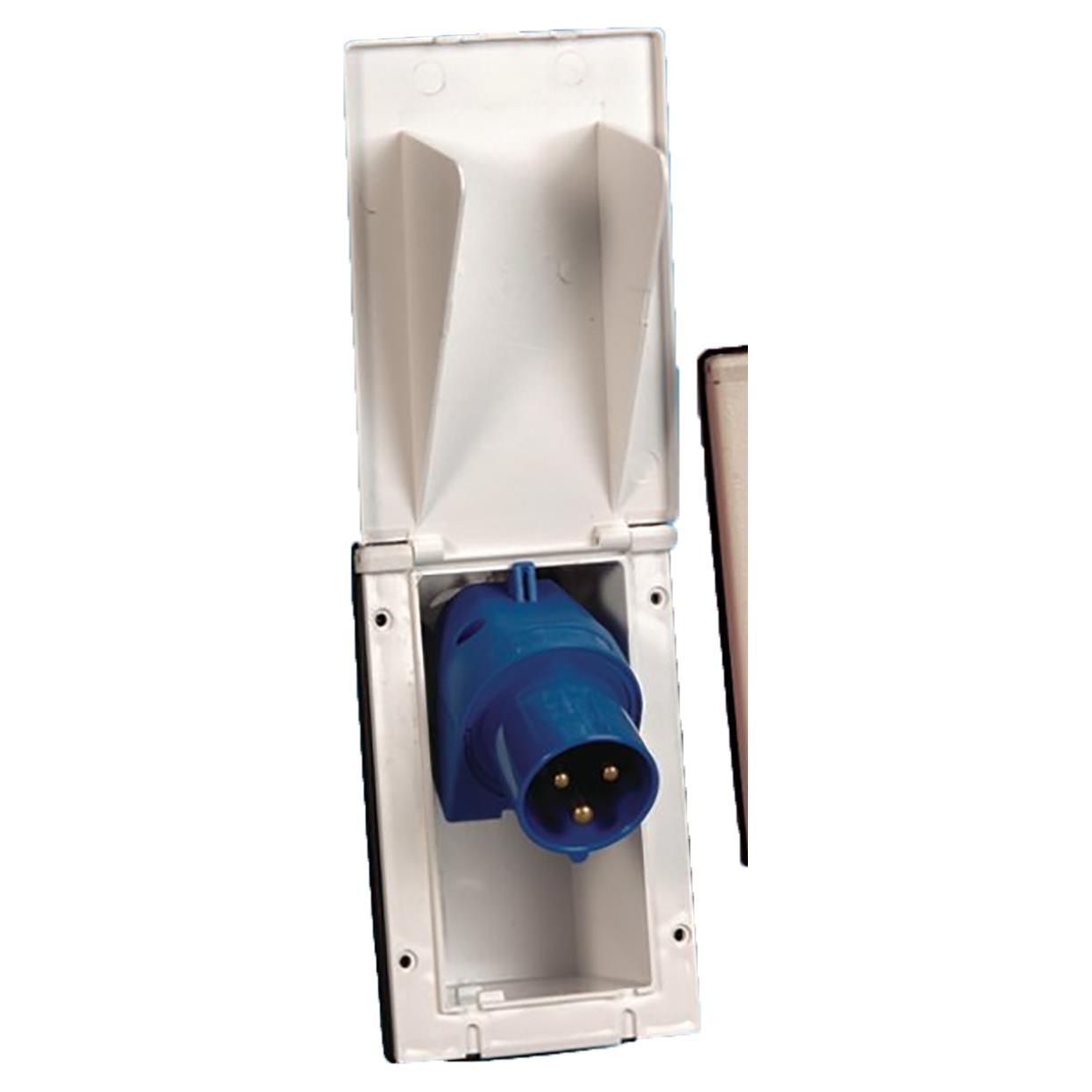

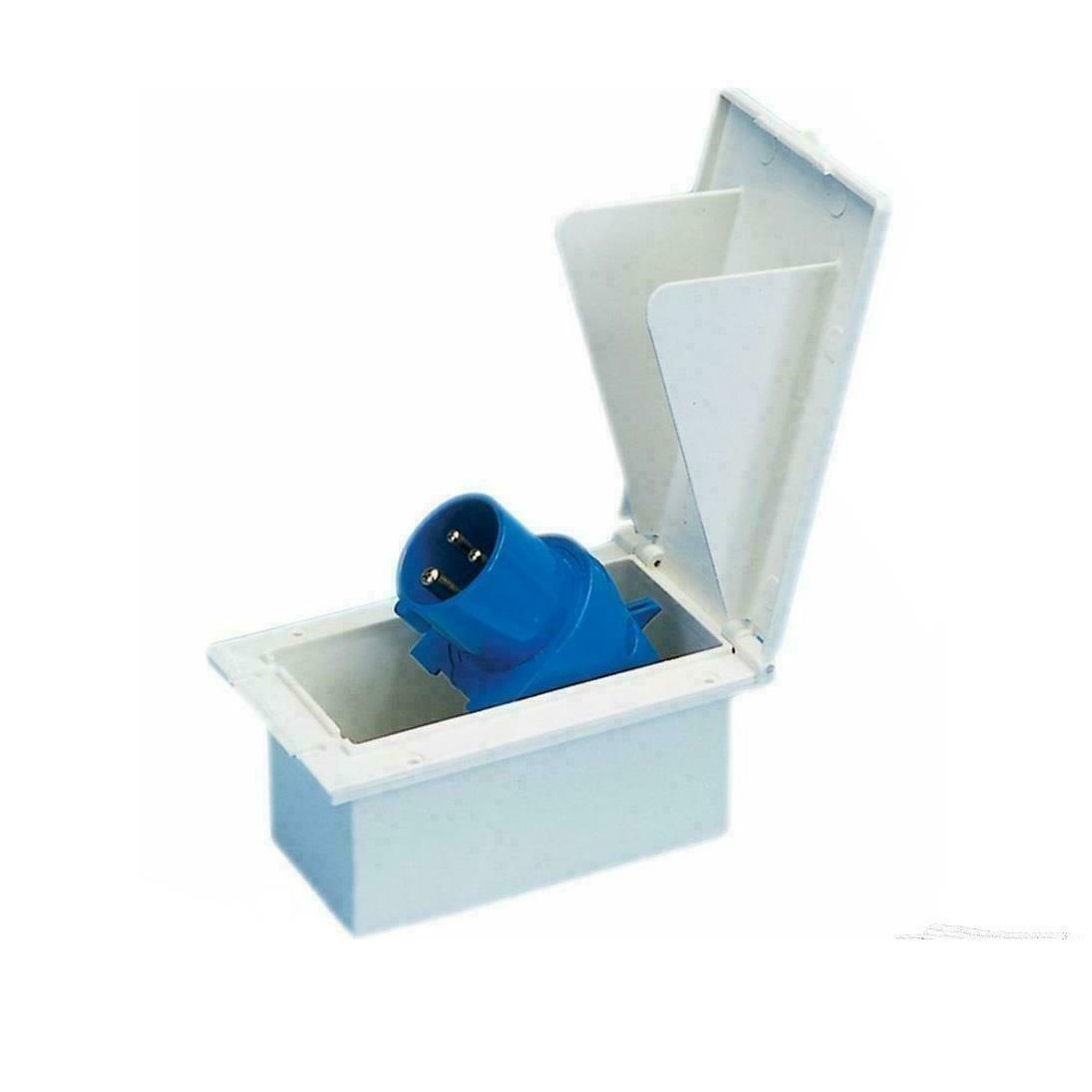

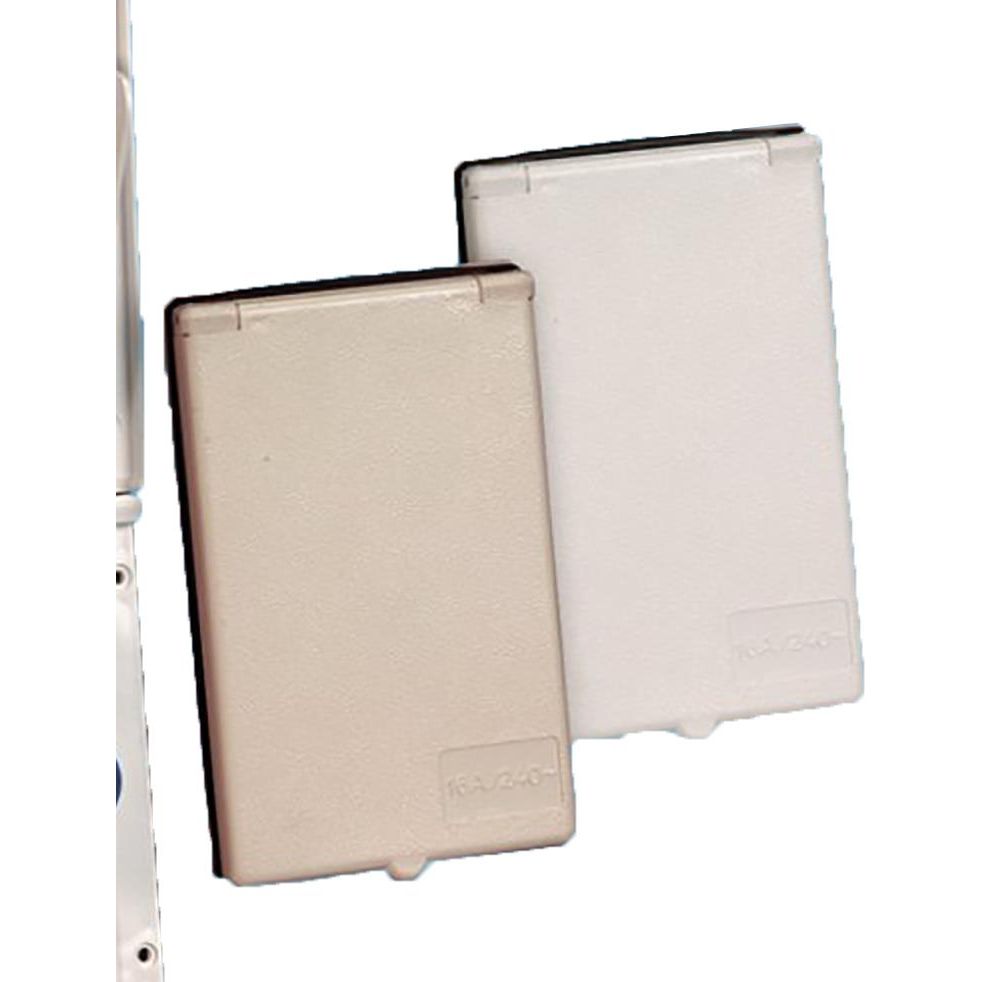

APPLIANCE INLET - FOR 240V MAINS. CARAVANS, CAMPERS, BOATS, RV's, HORSEBOXES etc.
RECESSED MODEL, colour WHITE Pt.no. PO114W
2 pole and earth, rated to 16amps (approx 4kW) at 240v.
Generally in the style of a BS4343 device, and 'CE' marked
The front flange has a sponge rubber seal to stop water ingress. There are 4 corner mounting holes to suit countersunk screws (screws not provided) accessed when the cover is opened. A rear flange is fited on the inside for the fixing screws to screw into.
THIS DEVICE HAS EXPOSED MALE PINS, AND IS DESIGNED TO BE FITTED TO AN APPLIANCE (eg BOAT, CARAVAN, CAMPER etc) TO RECEIVE AN INCOMING MAINS ELECTRICAL SUPPLY. UNDER NO CIRCUMSTANCES MUST THIS DEVICE BE USED AS A 'SOCKET' ON AN OUTGOING LIVE SUPPLY. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
The cover on the back face has an opening for the cable to exit into the vehicle or boat, and a grommet is included.
Dimensions -
flange approx 99mm wide x 157mm high.
cut out required approx 73mm wide x 138mm high
cover is 103mm wide x 160mm high.
depth behind the flange is 63mm
weight 350g
