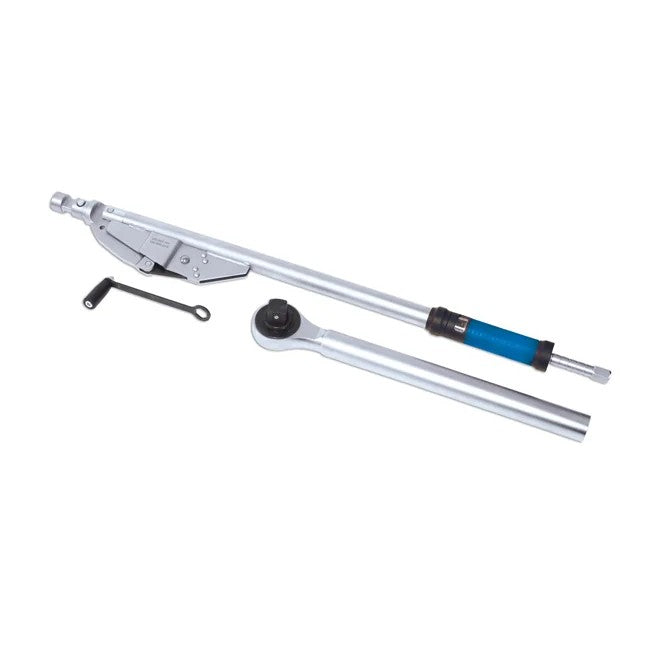

Laser Tools Breakback Torque Wrench 3/4"D 200-800Nm - PL

An industrial 3/4"D breakback torque wrench, with a range of 200 to 800Nm (150 to 600lb-ft) and a push-thru drive allowing it to torque in both clockwise and anti-clockwise directions. The breakback mechanism gives the user a clear indication that the required torque has been reached, by pivoting back at the joint, helping to prevent over-torquing. It also features a two-piece design for ease of storage, easy to read scale, and a soft grip handle.

Features

• Range: 200 - 800Nm (150 - 600lb-ft); tolerance ±4%.
• 36 teeth ratchet mechanism; 3/4"D x 1330mm long.
• Features a 2pc design for ease of storage, together with a push-thru drive which allows both clockwise & anti-clockwise operation.
• Manufactured from Chrome Vanadium & carbon steel, with a Chrome Molybdenum square drive & a Polypropylene (PP) & Nitrile butadiene rubber (NBR) handle. Supplied in a blow mould case for storage.
• All Laser torque wrenches (mechanical & digital) are supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017. 1"D breakback torque wrench also available, please see Part No. 8877.
