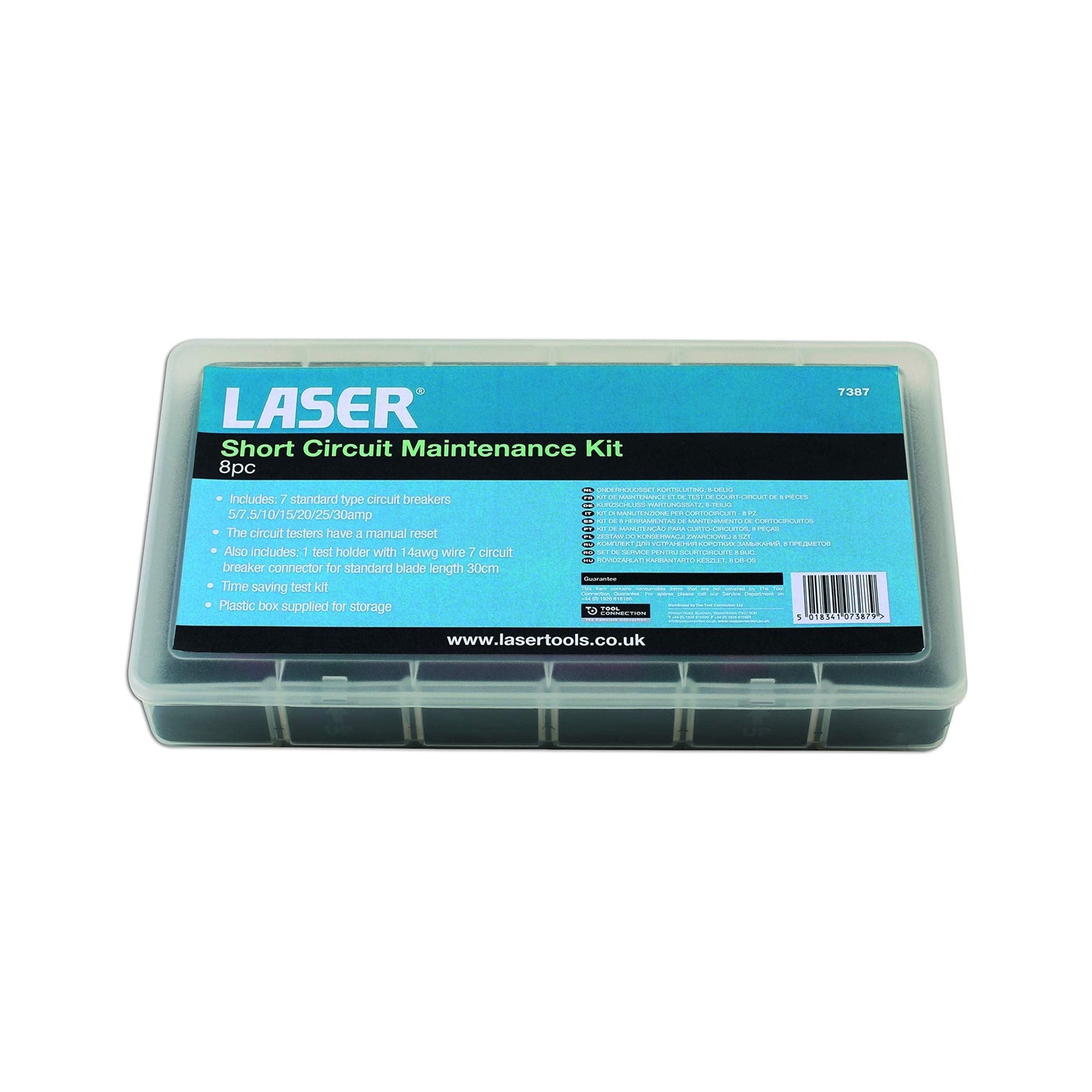

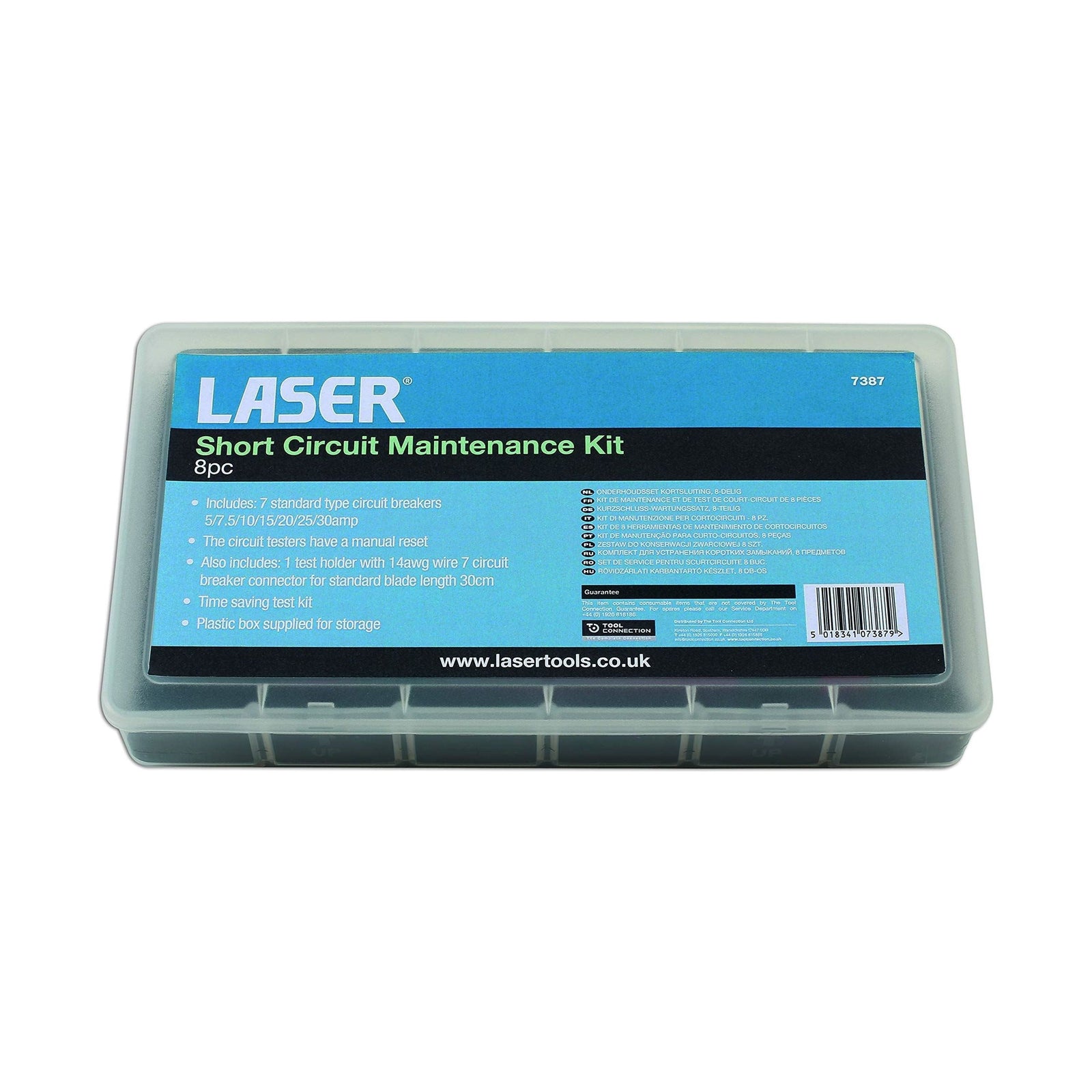

Laser Short Circuit Diagnostic Kit 8pc 7387
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.

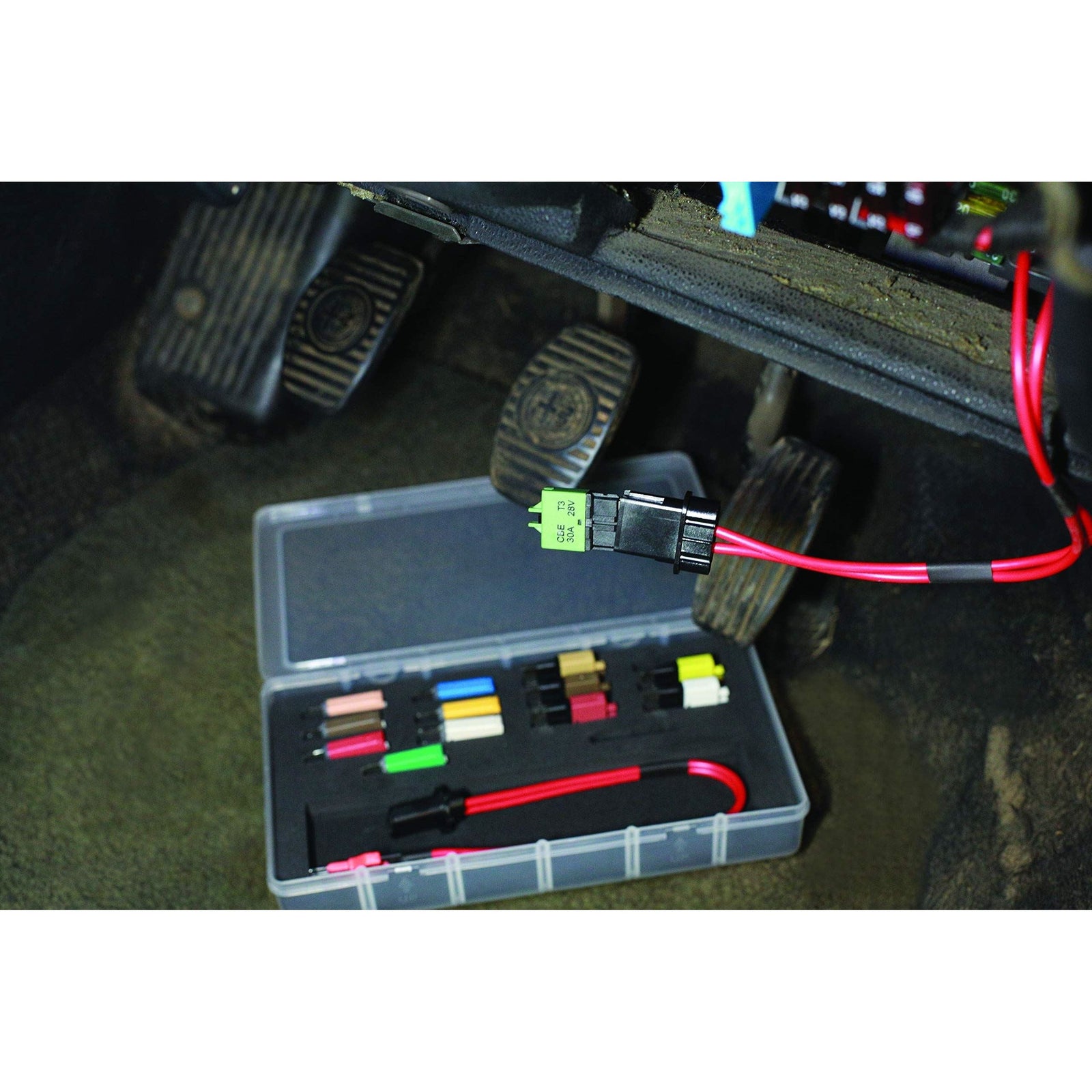

Tracing a short circuit can be a very time consuming exercise. This Short Circuit Diagnostic Kit provides a solution in the form of a set of circuit breaker fuses, designed to fit in place of the traditional fuse. The circuit breaker will safely break the circuit when an overload is detected, just like a conventional fuse, but it is also manually resettable, allowing the technician to reset the circuit breaker fuse to run their tests as many times as they need.

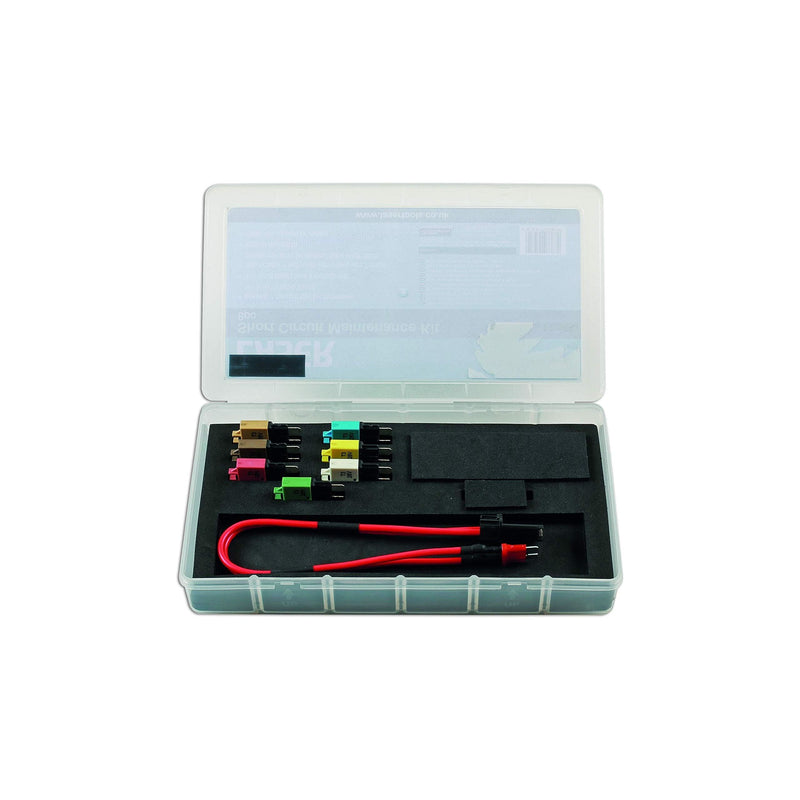

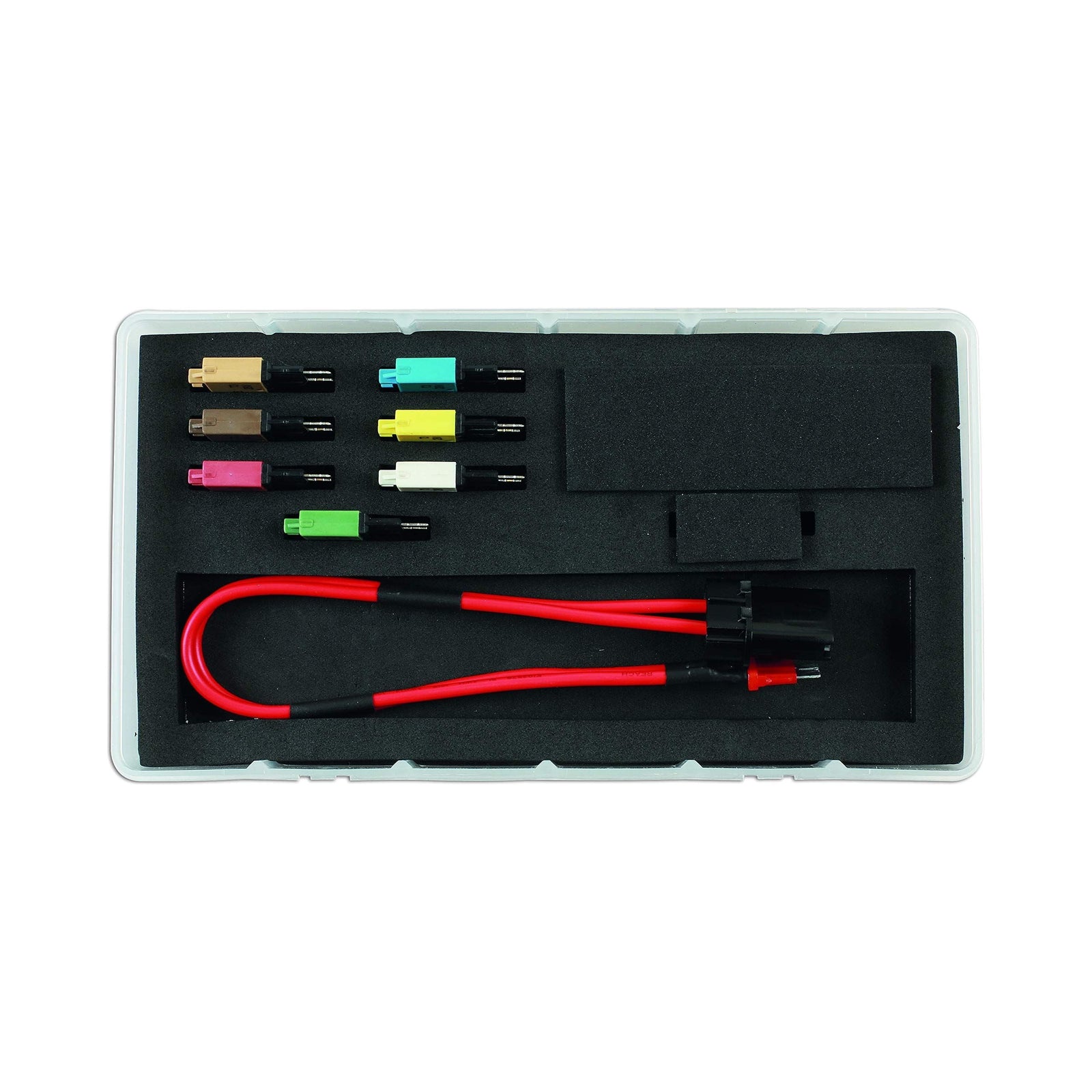

Contents includes: 7 manually resettable circuit breaker standard blade fuses & 300mm extension loop lead.
Fuse ranges: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A
Supplied with 300mm (12) extension loop lead for better access
Manufactured to: SAE J553 (TYPE I & II & III) Circuit Breakers.
Ideal for use with Laser Part No. 6551 - Digital Amps Clamp. For resettable mini fuses, please see Laser Part No. 7386.
