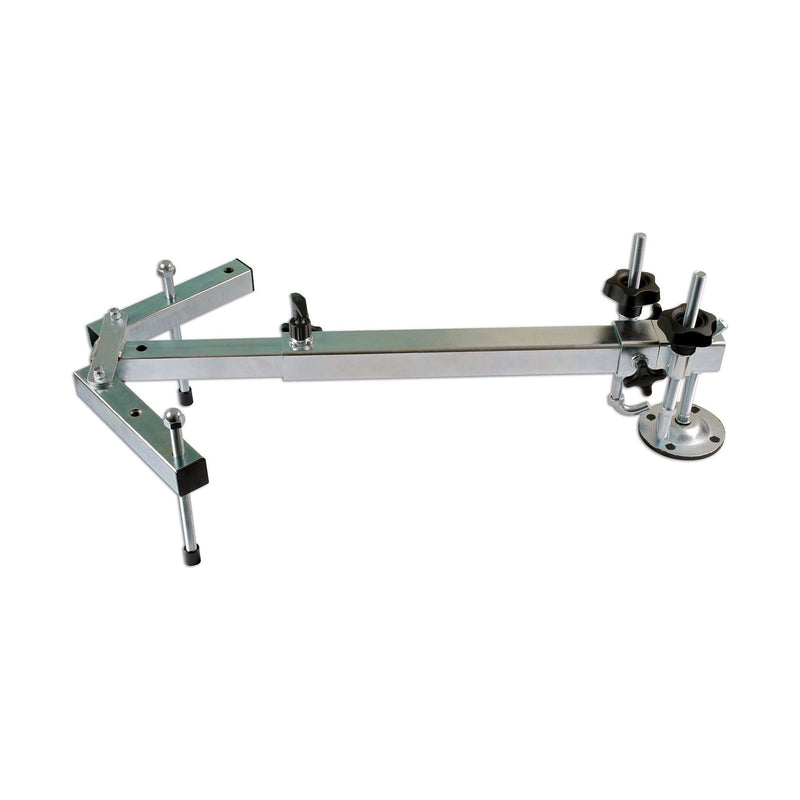

Laser Engine/Gearbox Support 5750
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Designed for transverse-engined vehicles, the frame will support the engine and/or gearbox when carrying out repair operations like clutch or gearbox removal, DMF change, removing and replacing engine and gearbox mounts, for cam belt replacement, etc.

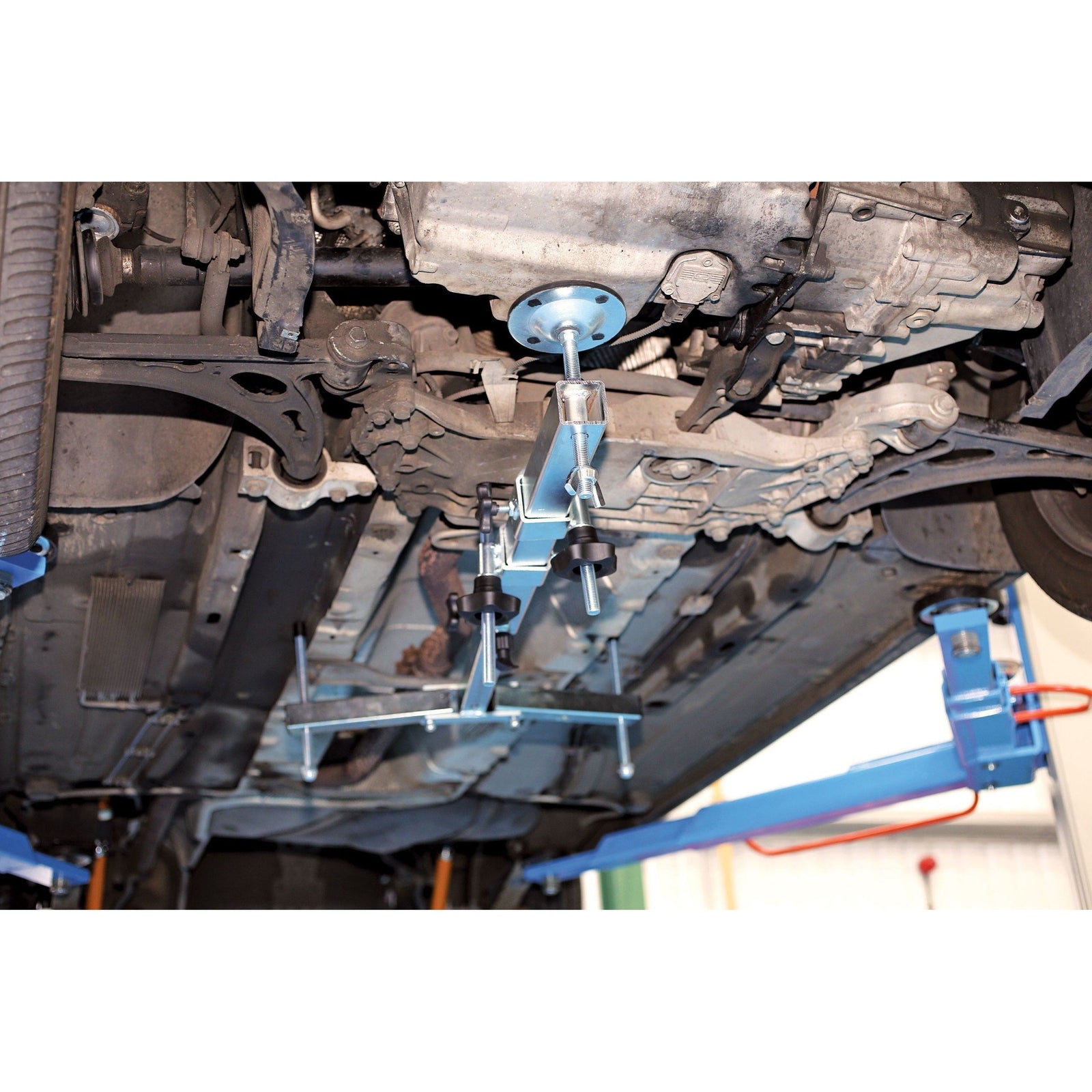

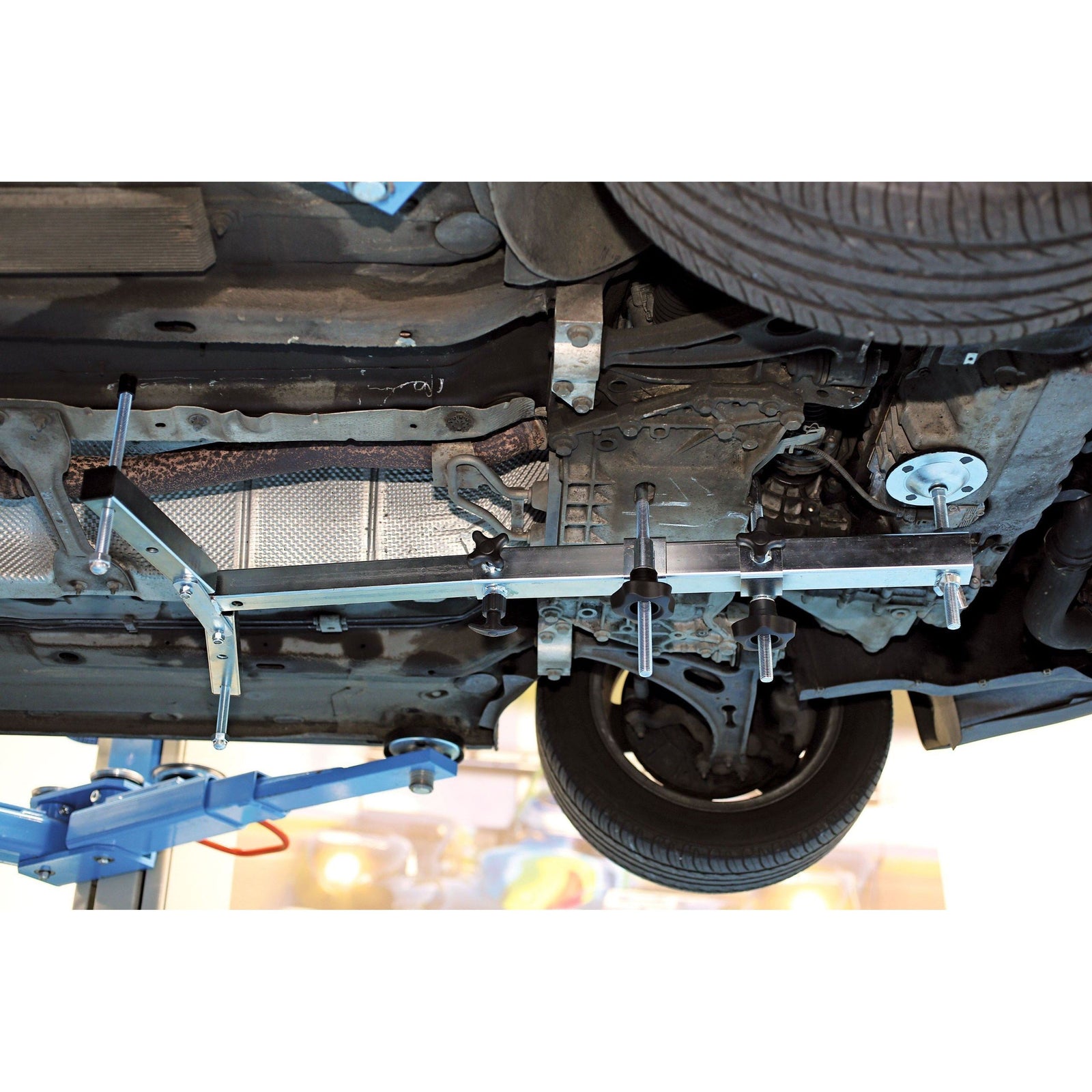

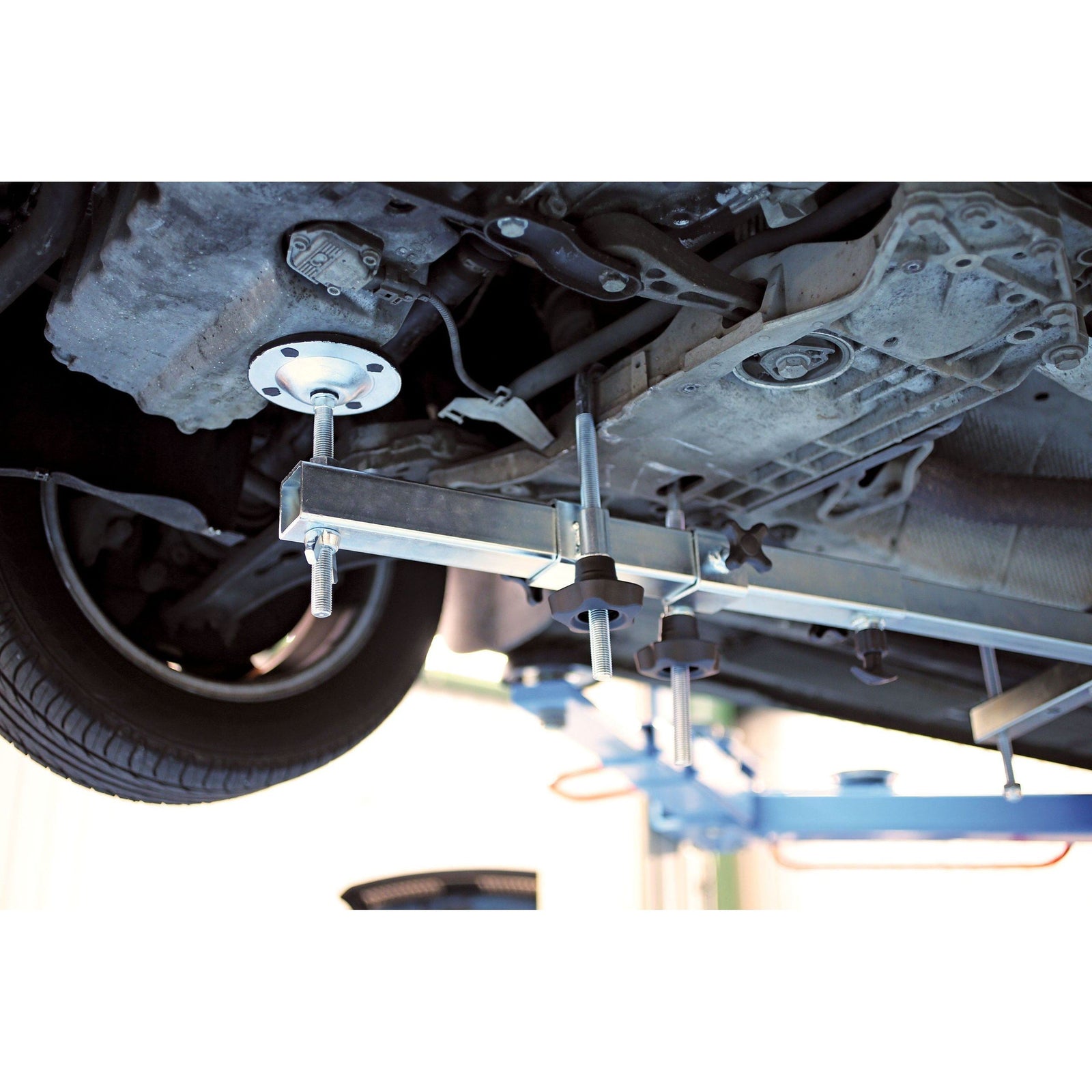

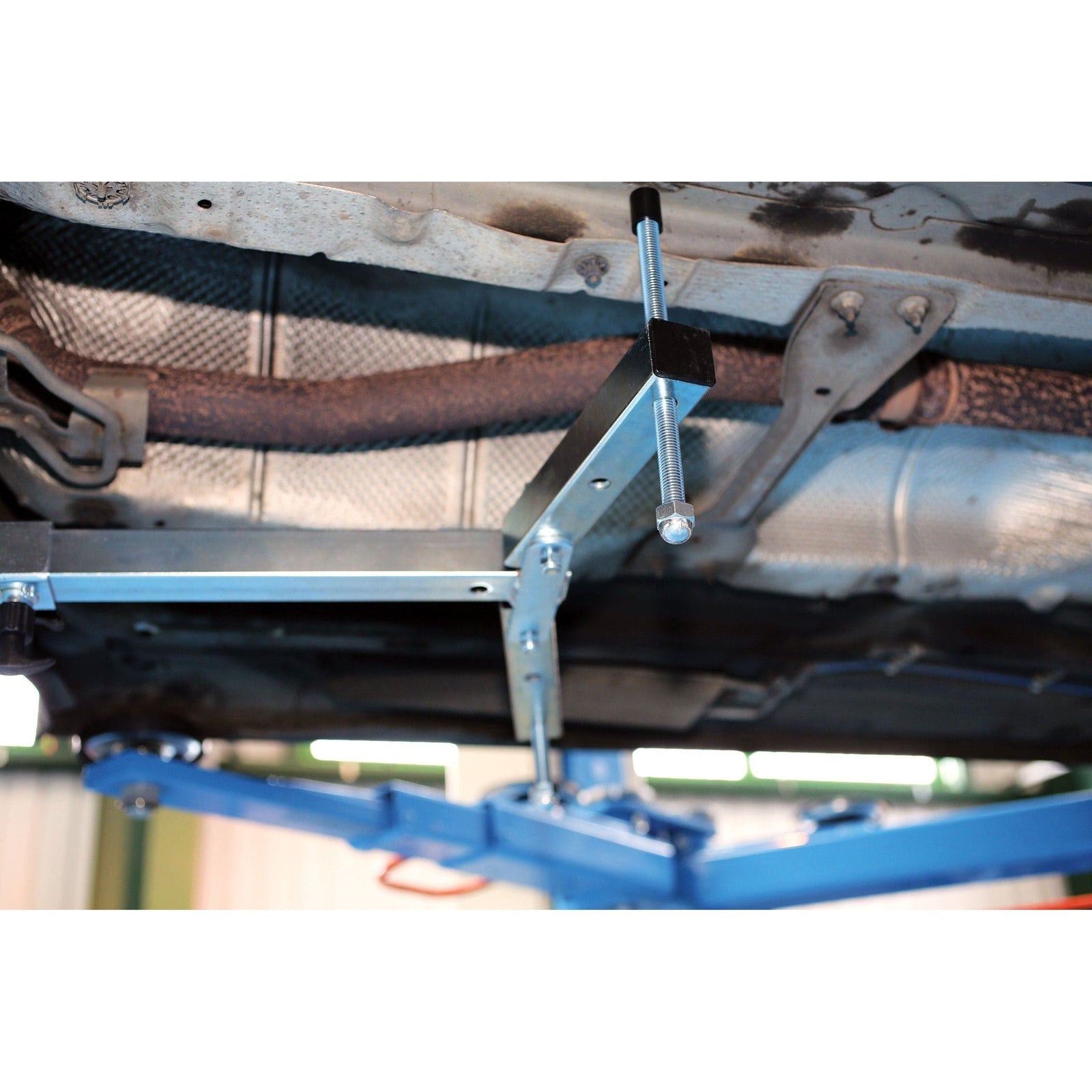

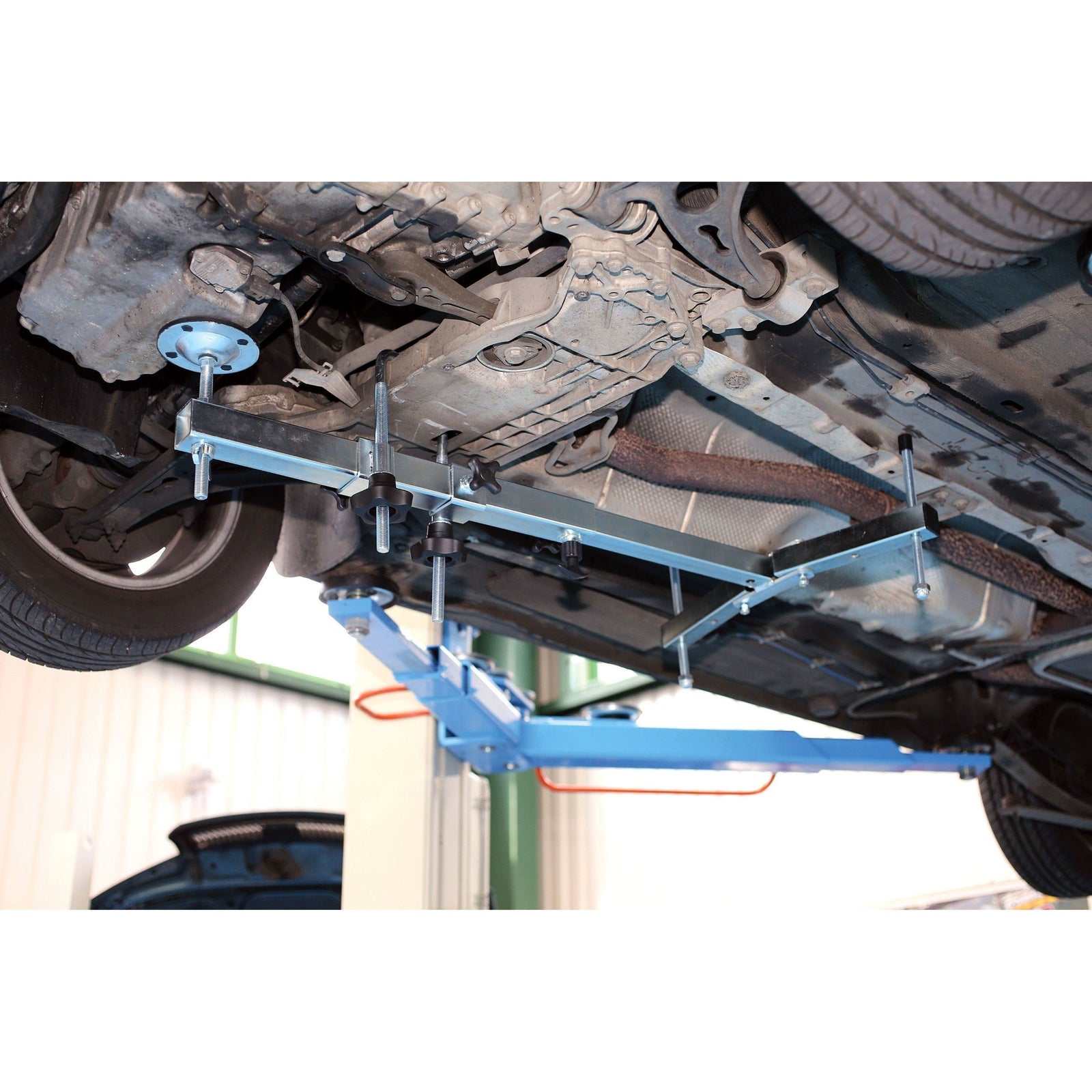

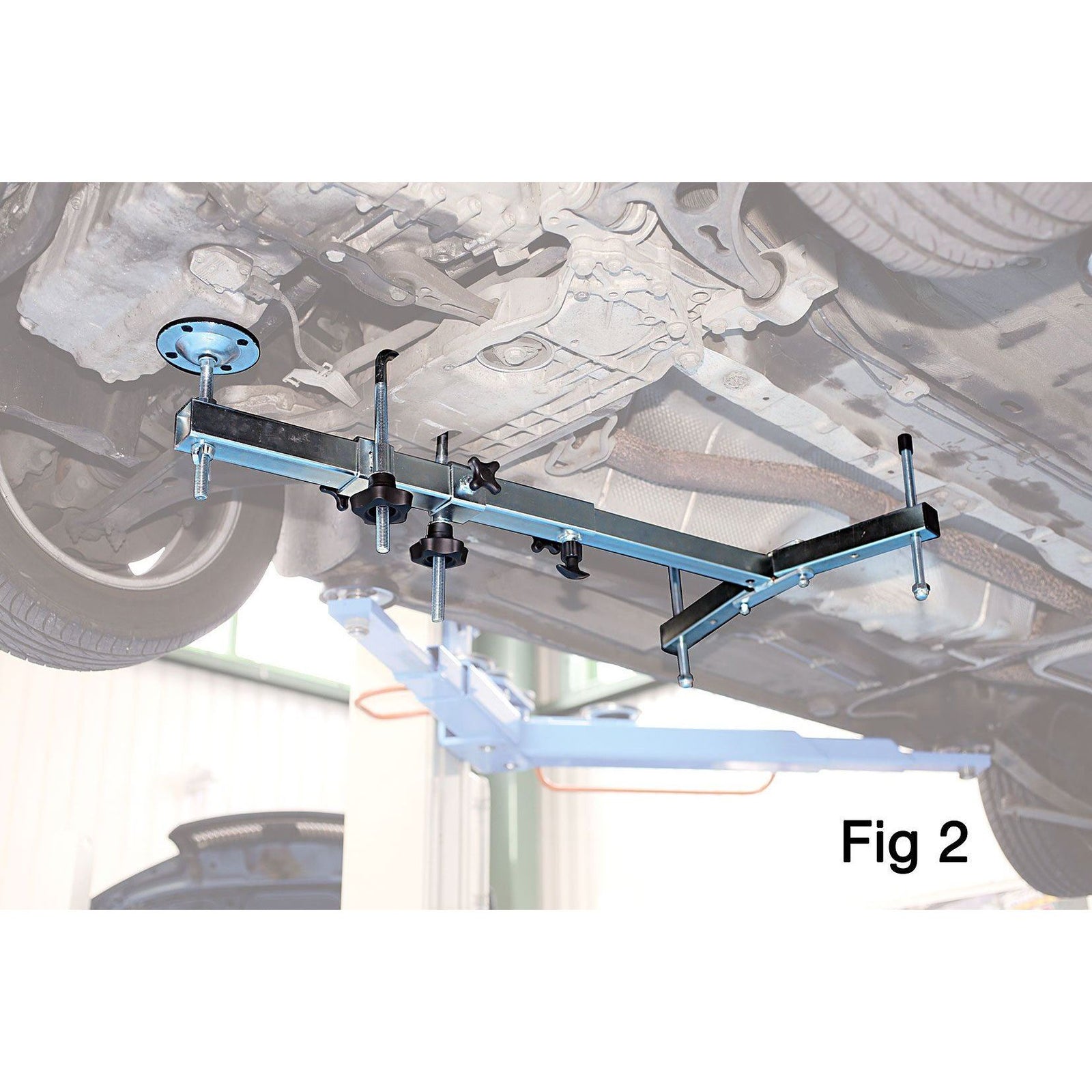

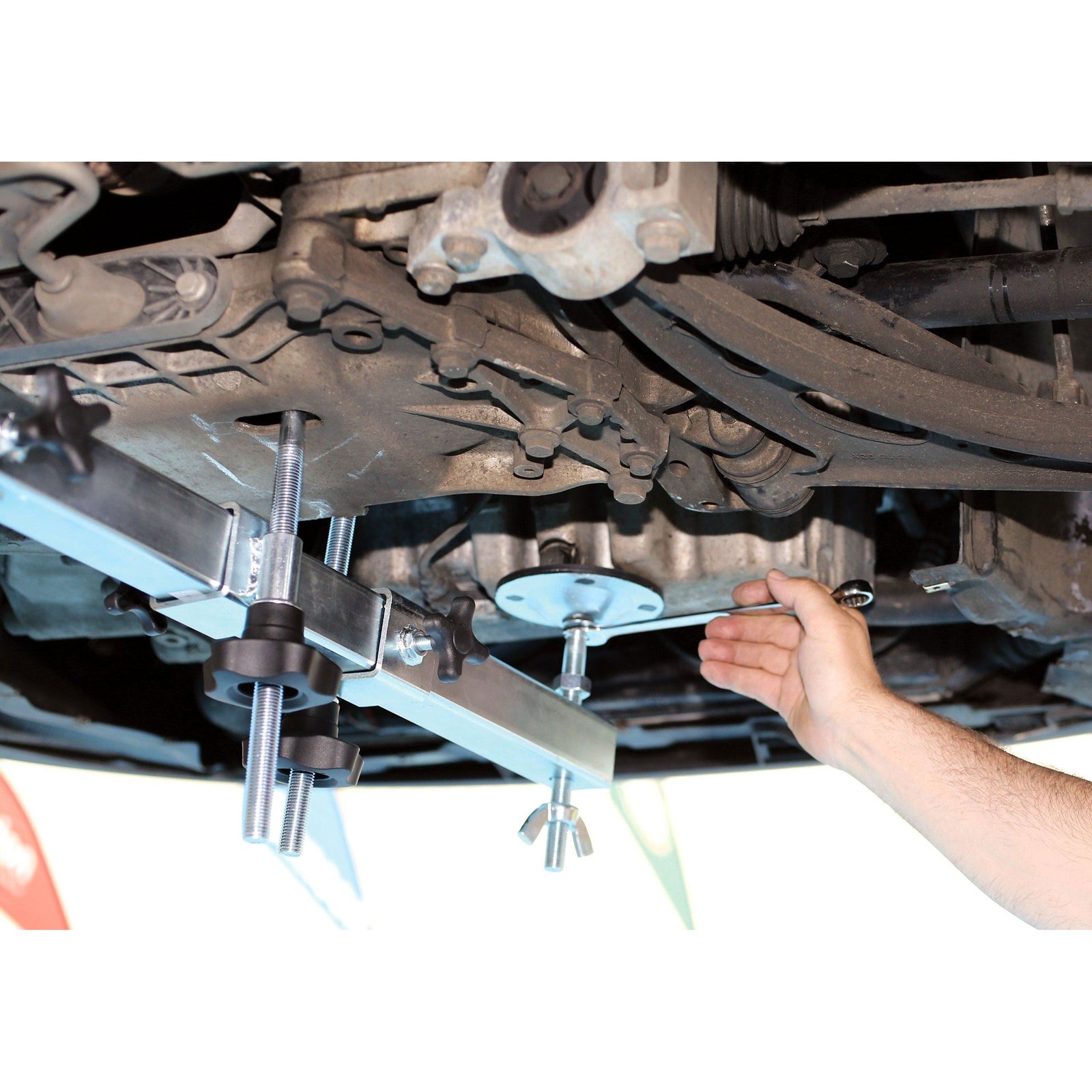

With car on ramp, engine/gearbox position and height can be adjusted from underneath.
Once support frame is secured in position, vehicle ramp can be moved up and down.
Length of frame, position of thrust pins, mounting support hooks and main support pad is fully adjustable to suit many applications.
Frame length: 600mm - 930mm (fully extended). Maximum width of thrust pins: 300mm (position 1), 500mm (position 2). Maximum load 400kg.
