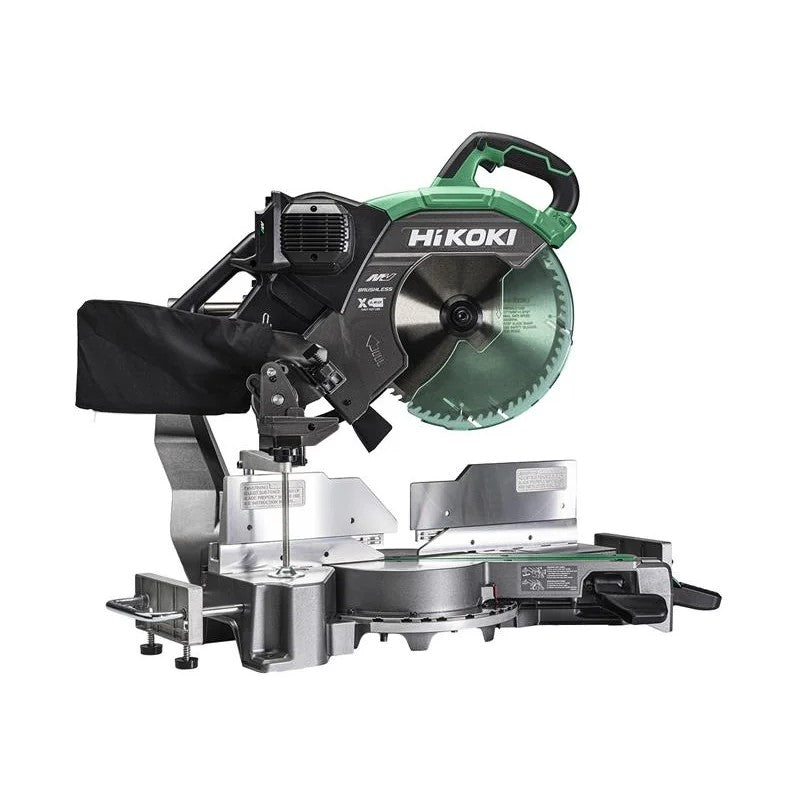

HiKOKI C3612DRAW4Z Sliding Compound Mitre Saw 36V Bare Unit - C3612DRAW4Z
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
The HiKOKI C3612DRAW4Z Sliding Compound Mitre Saw built with dual bevel, 45° to the left and right, and convenient bevel adjustment on the front. The motor features Torque Boost motor technology: Auto switch mode for fastest cuts and automatic detection of the right motor setting. Torque mode for powerful and battery saving cuts.
The table can be extended on the right and the left for sawing wide workpieces. Positive stops allow for fast and accurate mitre adjustments. Shadow line technology perfectly marks the cutting line.
Bare Unit, NO battery or charger.
Supplied with: 1 x Dust Bag, 1 x Vise Assembly, 1 x Hex. Bar Wrench 8mm, 1 x Holder, 1 x TCT Saw Blade 305mm-D30 hole-NT60 and 1 x Carton Box.
Specifications:
No Load Speed: 4,000/3,200/min.
Blade Diameter x Bore: 305 x 30mm
Max. Cutting Dimension:
@0° 105 x 312mm
Bevel Left 45° 68 x 312mm
Bevel Right 45° 43 x 312mm
Mitre Left 45°/Bevel Left 45° 68 x 220mm
Mitre Right 45°/Bevel Right 45° 43 x 220mm
Mitre Left 31°/Bevel Right 45° 43 x 265mm
Mitre Right 31°/Bevel Left 45° 68 x 265mm
Max. Bevel Angle Left/Right: 45°/45°
Max. Mitre Angle Left/Right: 0-45°/0-57°
Dimensions (LxWxH): 873 x 916 x 724mm
Weight: 25.20kg without battery pack
Specifications
| Brand | HiKOKI |
| EAN | 4966376412990 |
| Type | Power Tools |
| Sub-Type | Saws (Powered) |
| Item Weight | 31.83 kg |
| Custom Bundle | No |
| Voltage | 36V |
| Manufacturer Part Number (MPN) | C3612DRAW4Z |
