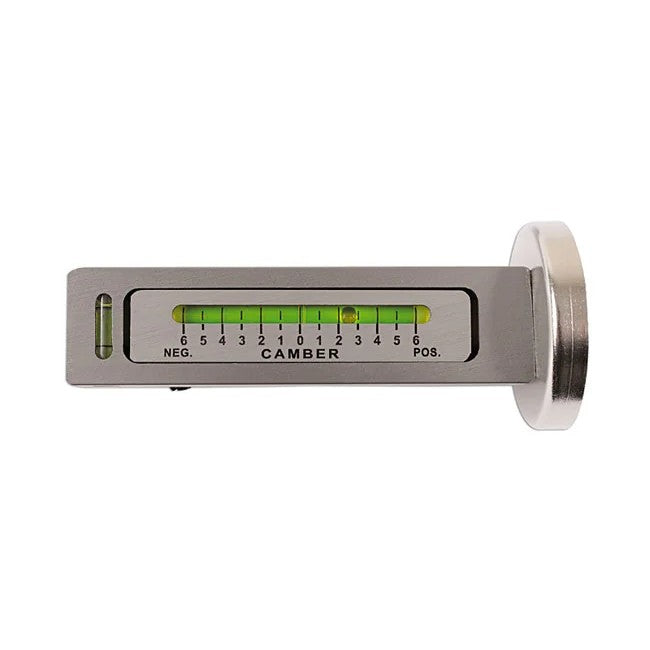

A magnetic gauge that attaches to the hub or disc brake to allow comparison of the castor and camber angle. Indicates the before and after adjustment to maintain proper wheel alignment and even tyre wear, making it useful after dismantling and re-assembly of the suspension to approximate the correct camber setting. The spirit level has a graduated camber scale from -3 to +3 the tool is easy to read. There is an adjustment knob on the back and a spirit level on the front for setting up the tool.
Features
- Magnetic gauge attaches to the hub or disc brake. Outside diameter: 55mm; Overall length: 130mm.
- Graduated from -3 to +3 increments. With a 65mm wide spirit level window for easy to read camber comparison readings.
- A useful tool to approximate the camber setting after dismantling & re-assembling the suspension (be sure to take readings before beginning work). For accurate digital camber measurement use the Laser Part No. 6657.
- Used to compare side to side after curbing or accidental suspension damage & can be used to check angles for comparison on any adjustable components.
- Supplied in a fitted, blow mould storage case (160 x 130 x 70mm). For easy attachment to alloy wheels use the Gunson Trackrite Camber Bar, Part No. 77137.
Specifications
| Brand | Gunson |
| EAN | 5018341770662 |
| Type | Tracking & Steering Geometry |
| Item Weight | 0.499 kg |
| Custom Bundle | No |
| Item Width | 134mm |
| Item Height | 73mm |
| Item Depth | 171mm |
| Country/Region of Manufacture | Taiwan Province of China |
| Customs Tariff Number | 90318080 |
| Sub-Type | STEE |
| Manufacturer Part Number (MPN) | GPL |
