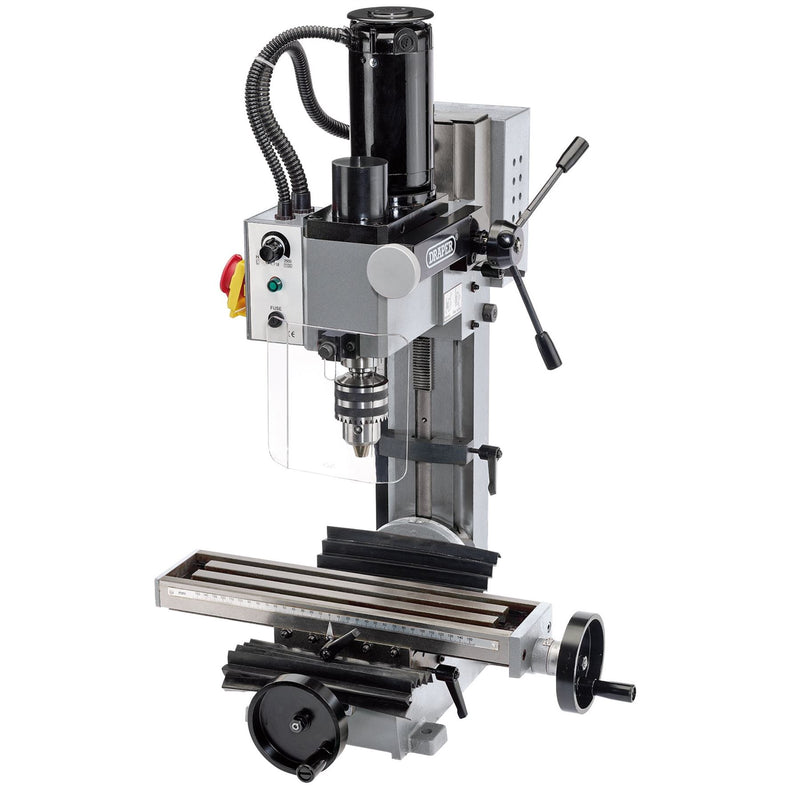

Draper Variable Speed Mini Milling/Drilling Machine, 350W 34023
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Bench mounting mini milling/drilling machine which will handle most materials. Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales. Column tilts from 0-45° from vertical. No-volt switch to prevent accidental switch on and approved three pin cable and approved plug. Carton packed.
Specifications
Drilling capacity 13mm
Face milling capacity 30mm
End milling capacity 16mm
Headstock travel 180mm
Cross axis 100mm
Longitudinal axis 220mm
Spindle tilt axis ±0-45°
Spindle taper MT3
Low spindle speed 100-1100r/min
High spindle speed 100-2500r/min
T-slot 12mm
Throat depth 170mm
Table size 390 x 92mm
Weight 60kg
