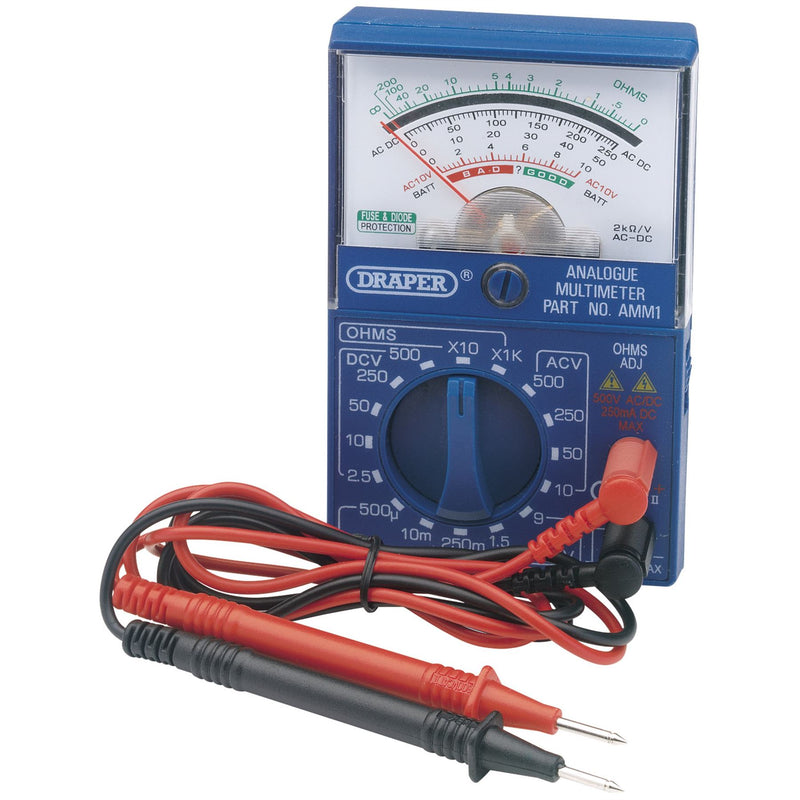

Draper Pocket Analogue Multimeter 37317
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Handy pocket analogue multimeter for use in electrical and automotive applications. Supplied with test probes, a crocodile clip probe set is available separately. Features: Measures AC and DC Voltage, Measures DC current, Measures resistance, 16 position
Contents
1 x Pocket Analogue Multimeter
2 x Test probes & leads
Specifications
AC Current: N/A
AC Voltage: 10V/50V/250V/500V
Automatic Power Off: N/A
Battery: 1 x AA
Capacitance: N/A
DC Current: 550uA/10mA/250mA/10A
DC Voltage: 2.5V/10V/50V/250V/500V
Dimensions: 64mm x 35mm x 102mm
Diode on/off Test: N/A
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 10Ω/1kΩ
Symbol Unit Data Hold: N/A
TACH: N/A
Temperature Range: N/A
Weight: 100g (approx.)
Standards
IEC61010 Specifications
