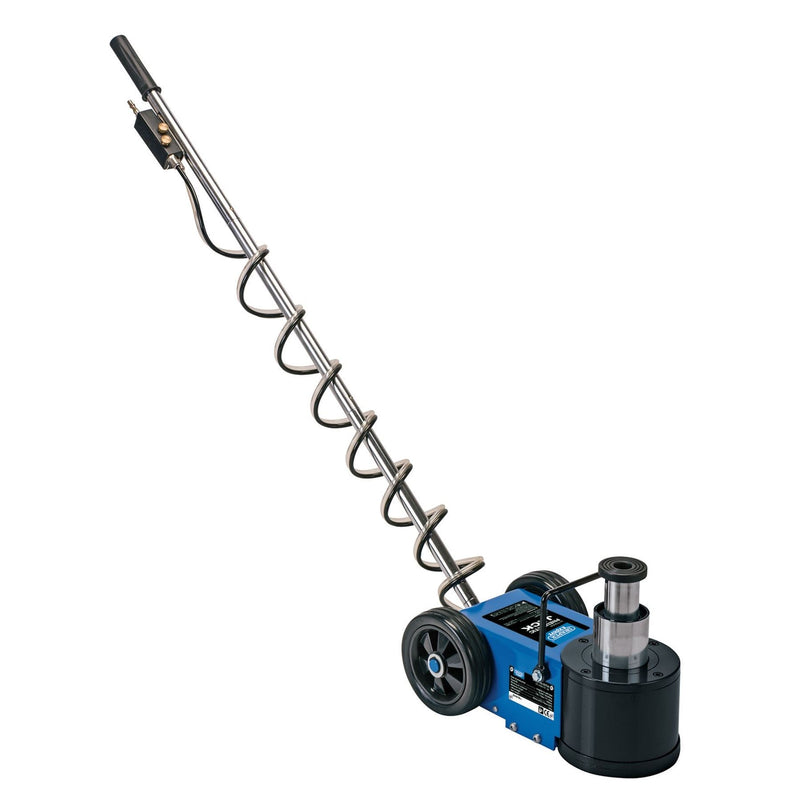

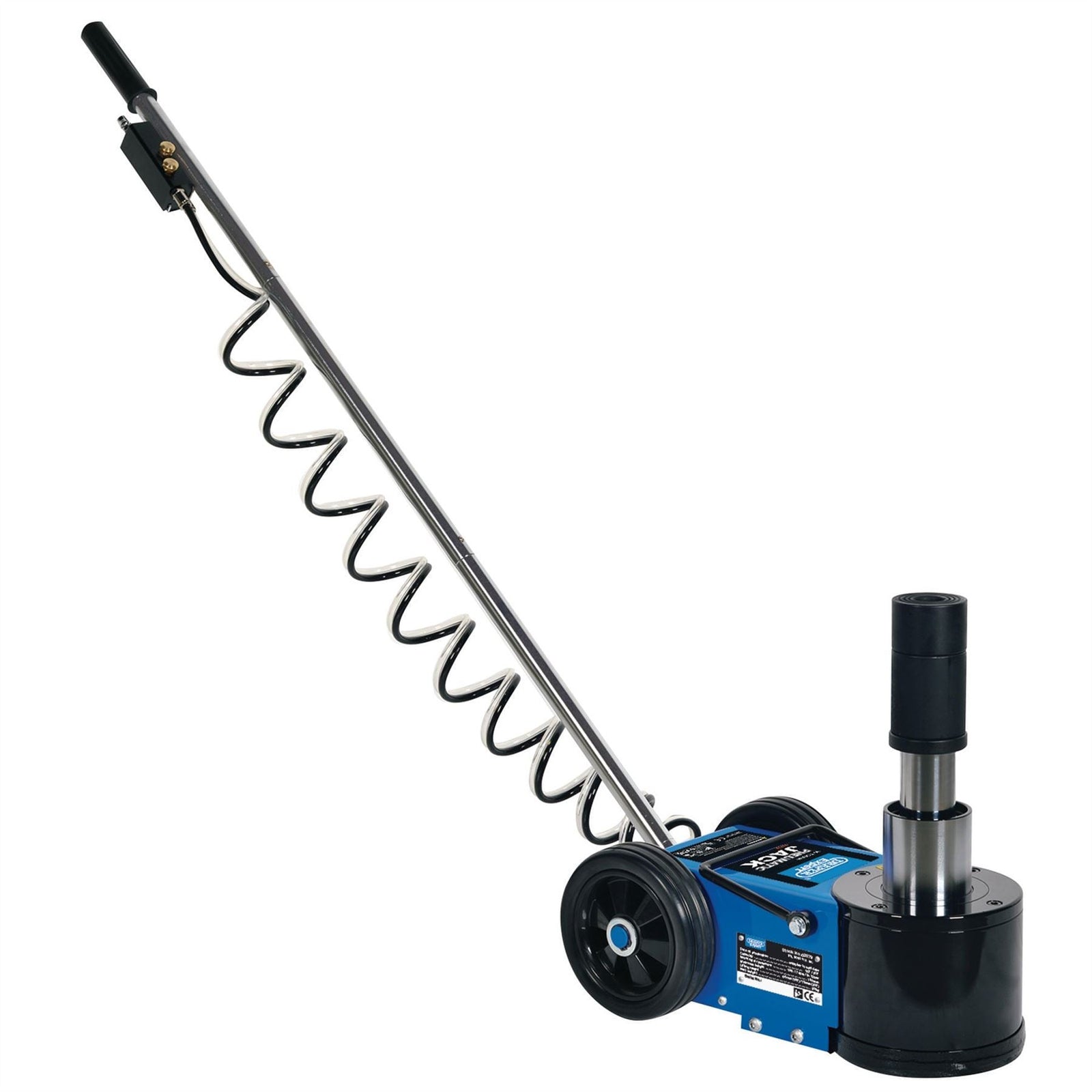

Draper Pneumatic Jack, 30 Tonne 03724
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Specifications
Capacity stage 1 30 Tonne (30,000kg)
Capacity stage 2 15 Tonne (15,000kg)
Minimum height 150mm
Maximum height stage 1 343mm (inc extensions)
Maximum height stage 2 409mm (inc extensions)
Lift height stage 1 73mm
Lift height stage 2 66mm
Operating air pressure 9 – 12BAR (130 – 174psi)
Air consumption 10.5cfm
Air inlet 1/4” BSP
Wheel diameter 165mm
Wheel width 42.5mm
Saddle diameter 70mm

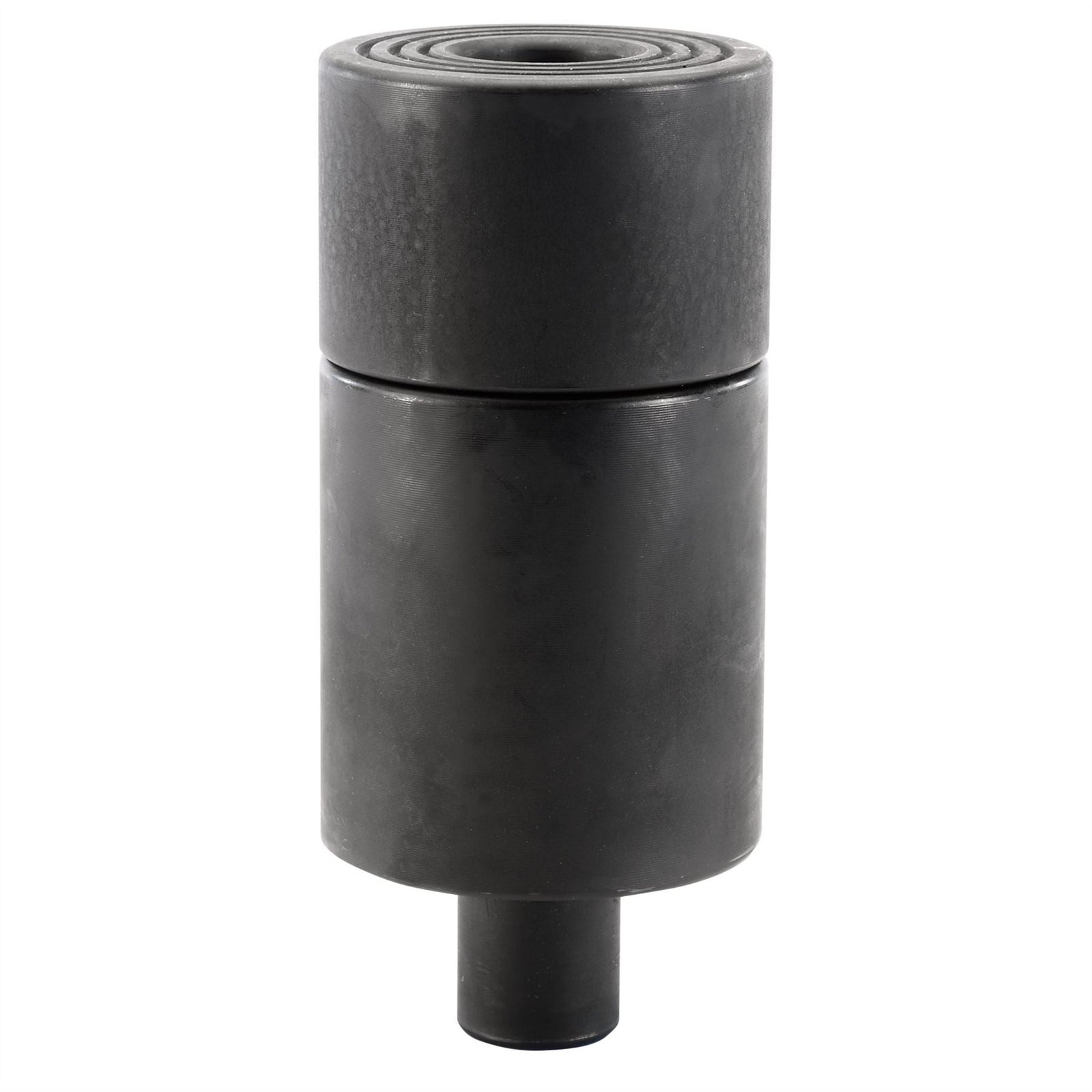

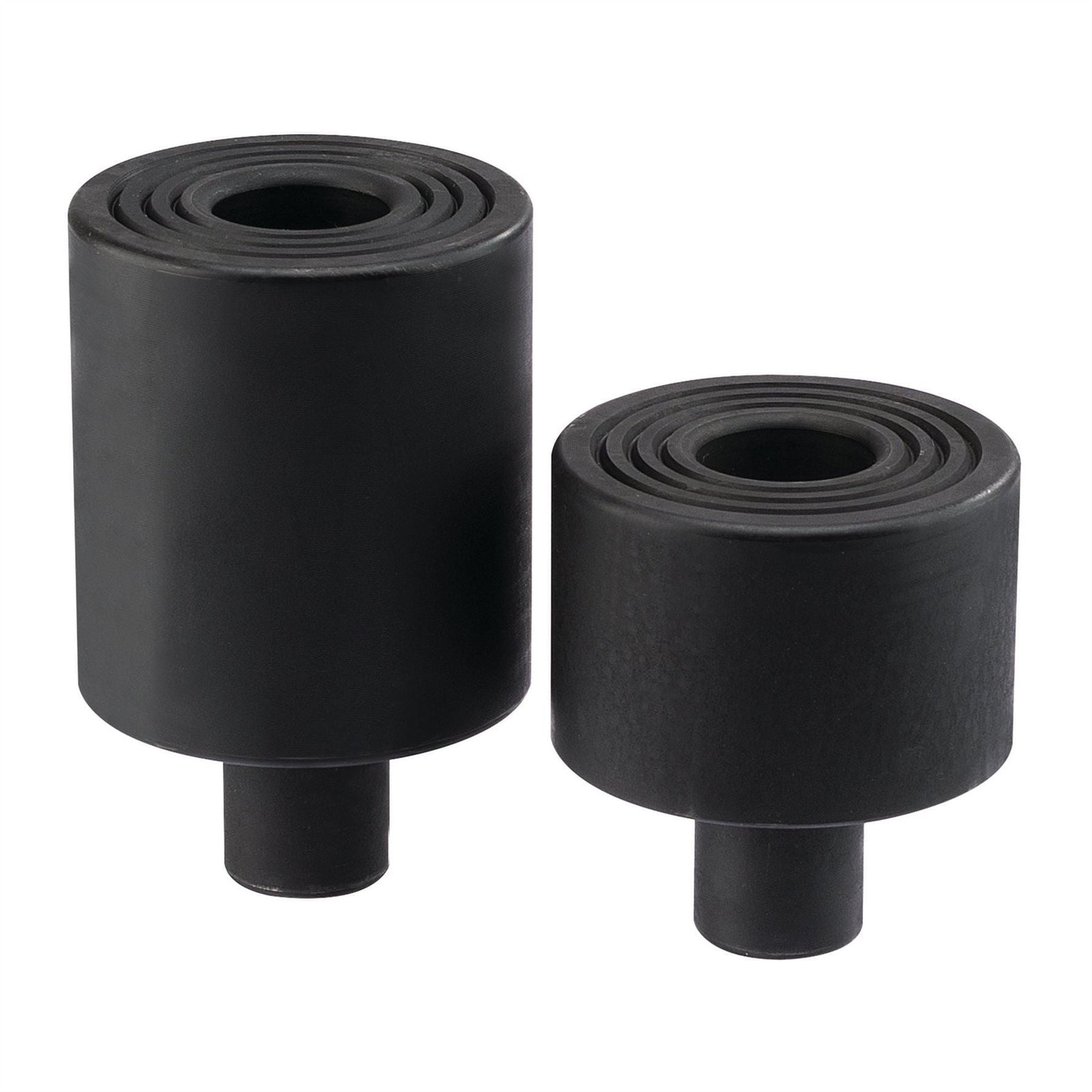

Extensions 45mm and 75mm
Handle length 1200mm
Chassis size 430 x 176 x 150mm
Nett weight 30kg
Standards
Manufactured to EN1494 Specification
