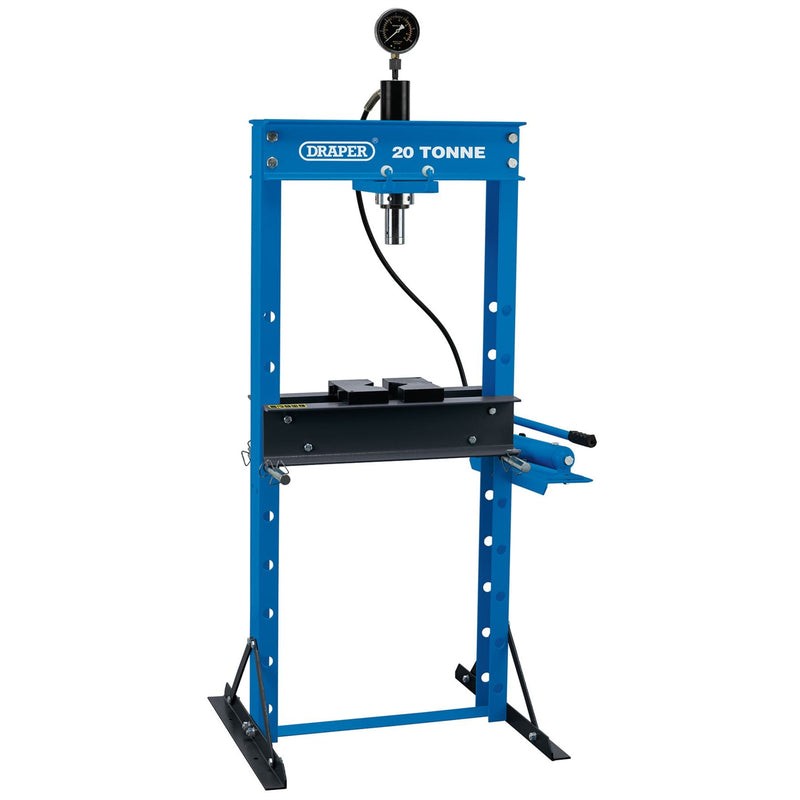

Draper Floor Press, 20 Tonne 70540
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Robust hydraulic 20 tonne floor press with sliding ram. There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to pretend the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.
Contents
1 x Floor Press, 20 Tonne
Specifications
Capacity: 20 tonnes
Frame Depth: 100mm
Frame Height: 1515mm
Frame width: 740mm
Max Table to Ram Height: 998mm (max.)
Min Table to Ram Height: 28mm (max.)
Overall height: 1785mm
Ram stroke: 185mm
Ram Type: Sliding
Table Settings: 9
Working table width: 550mm
Weight: 113kg
