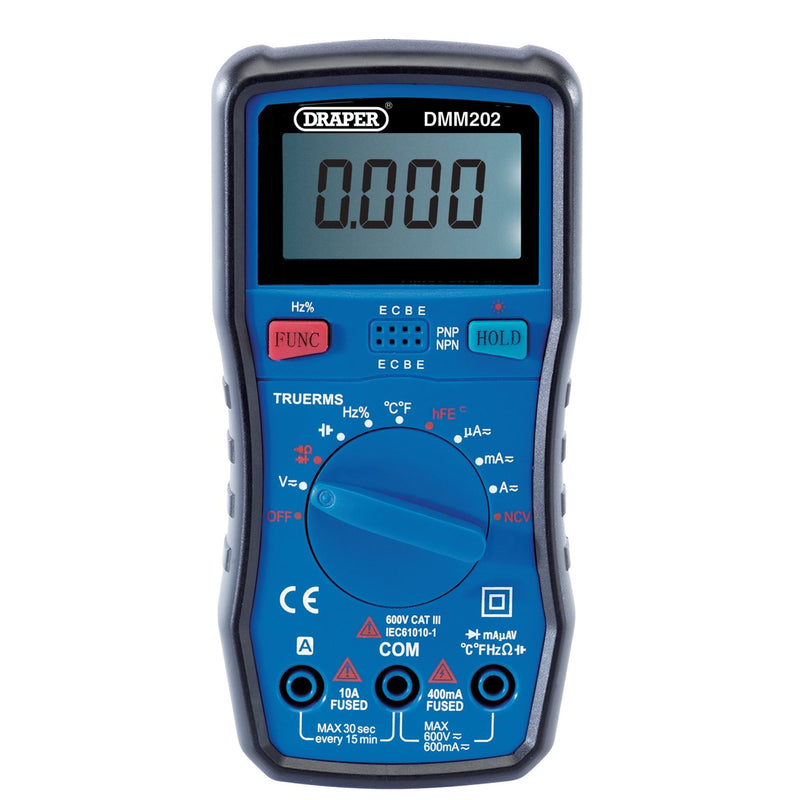

Draper Auto-Ranging Digital Multimeter, 1 x Test Leads, 1 x Temp Probe 41820
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Auto ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non contact voltage testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe and 1 x 6F22 9V battery.
Specifications
AC Current: 600µA/6000uA/60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: 6F22 9V
Capacitance: 10nF/100nF/1μF/10μF/100μF/1000mF/10mF/100mF
DC Current: 600µA/6000uA/60mA/600mA/6A/10A
DC Voltage: 600mV/6V/60V/600V
Dimensions: 172mm x 174mm x 50mm
Diode on/off Test: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -50℃ - 1000℃/-58℉ - 1832℉
Weight: 361g (approx.)
