Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit 70824
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.

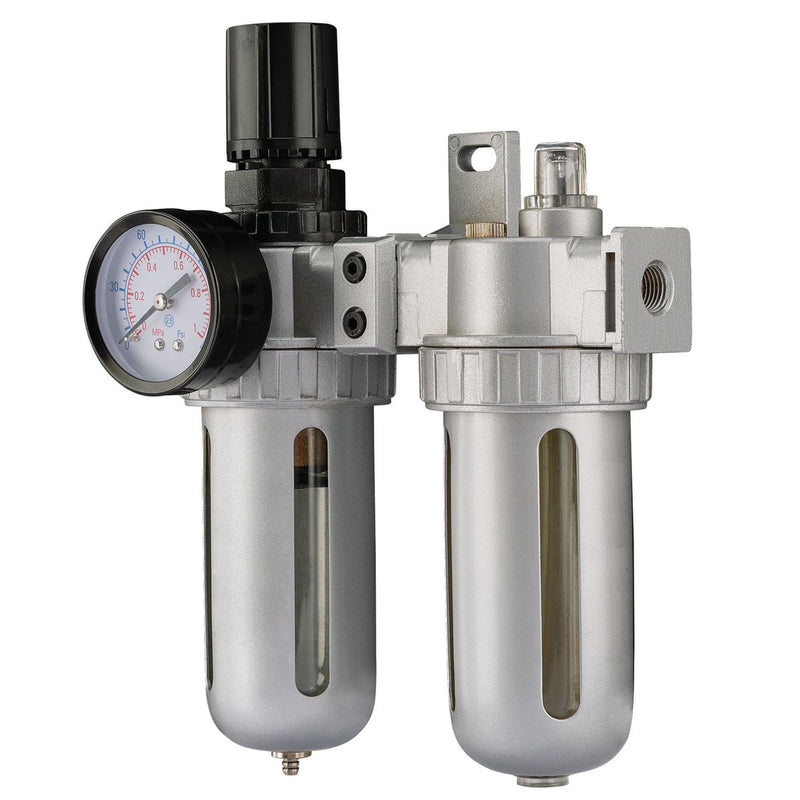

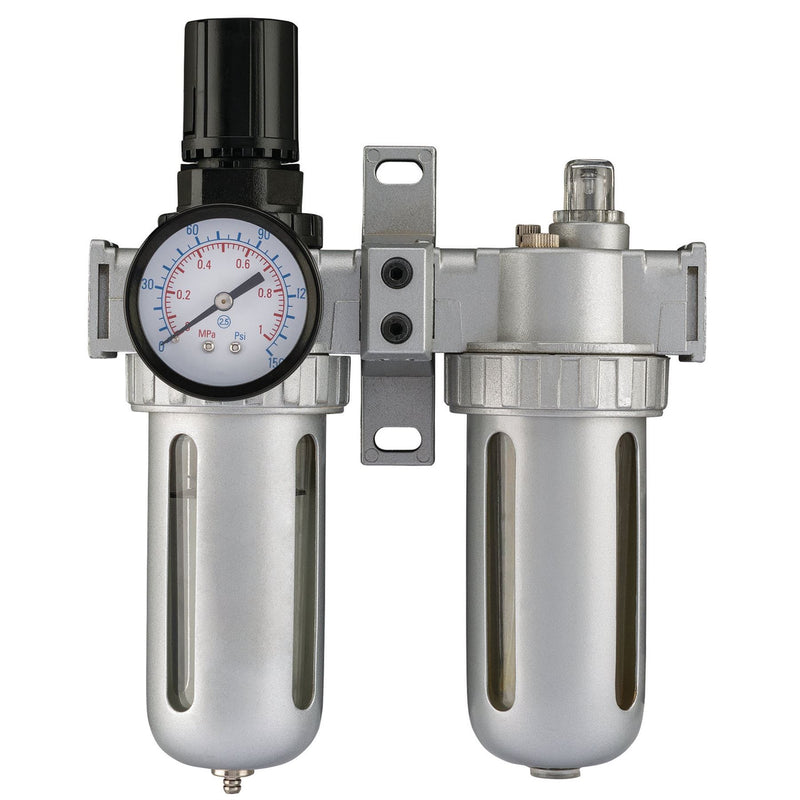

Designed to control output air pressure, eliminate moisture and contaminants from airflow and to lubricate tools during use. The main body of this unit is aluminium with polished silver finish. The gauge has steel casing and is duel-marked with psi and Mpa. Steel screw-on transparent bowl. Manual/semi-automatic drain, fitted with 40-micron filter. Complete with wall bracket.
Specifications
Inlet/outlet thread: 1/4" BSP
Max. inlet pressure: 145psi
Working temperature range: 5-60A„ƒ
Filtration element: 40um
Dimensions: 214 x 170 x 97mm
Weight: 0.98kg
