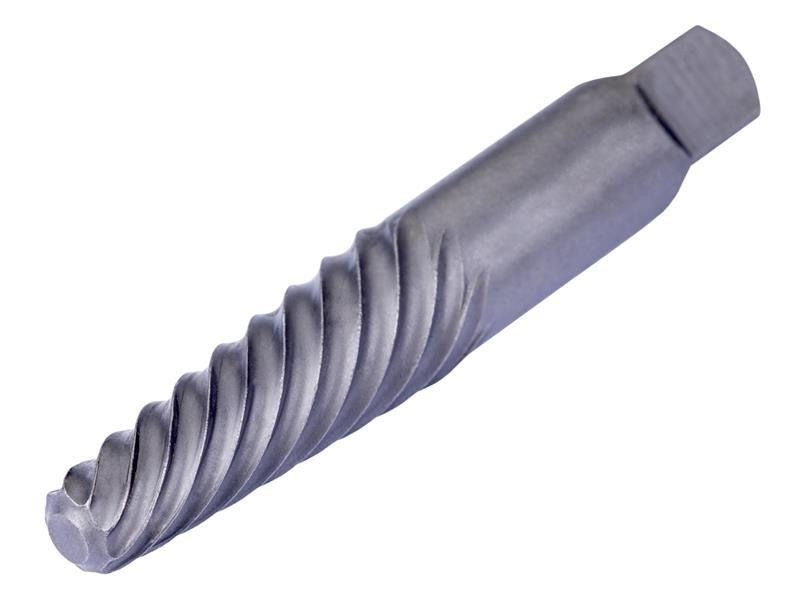

Dormer M9009 Screw Extractor M45-M50
14-day returns on all eligible orders
Contact us within 14 days of receiving your order to request a return.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
1 x Dormer M9009 Screw Extractor M45-M50
Specifications:
Bolt Size: M45 - M50
Drill Size for Low/Medium Tensile Screws: 27mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 28mm
Bolt Size Imperial: 1.3/4 - 2.1/8in
Drill Size for Low/Medium Tensile Screws: 1.1/16in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 1.3/32in
Cutting Diameter Step: 24.61mm
Cutting Diameter Second Cutting Step (DC_2): 32.3mm
Clamping Width (WSC): 24.6mm
Clamping Length (LSC): 22.6mm
Overall Length (OAL): 121.3mm
Net Weight: 640g.
