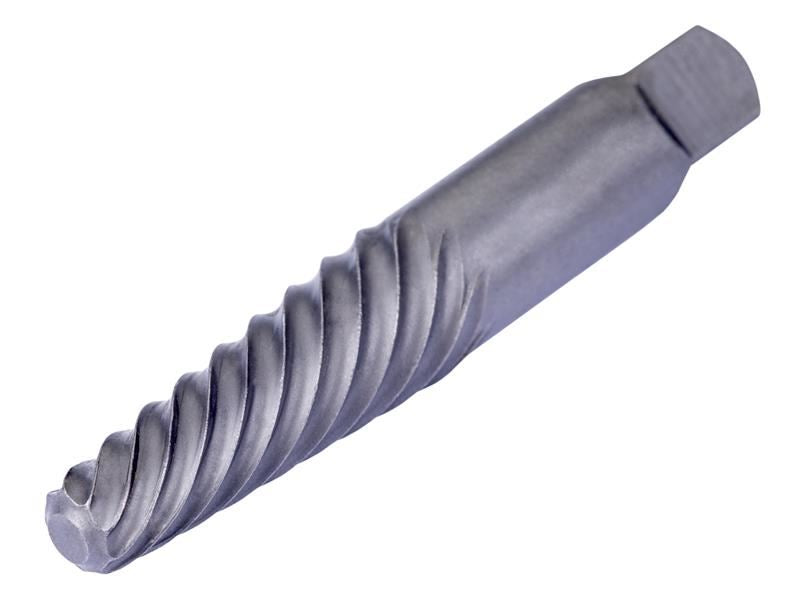

Dormer M9004 Screw Extractor M12-M14
14-day returns on all eligible orders
Contact us within 14 days of receiving your order to request a return.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
1 x Dormer M9004 Screw Extractor M12-M14
Specifications:
Bolt Size: M12 - M14
Drill Size for Low/Medium Tensile Screws: 5.5mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 6mm
Bolt Size Imperial: 7/16 - 9/16in
Drill Size for Low/Medium Tensile Screws: 7/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 15/64in
Cutting Diameter Step: 4.37mm
Cutting Diameter Second Cutting Step (DC_2): 8mm
Clamping Width (WSC): 6mm
Clamping Length (LSC): 8mm
Overall Length (OAL): 76.7mm
Net Weight: 24.7g.
