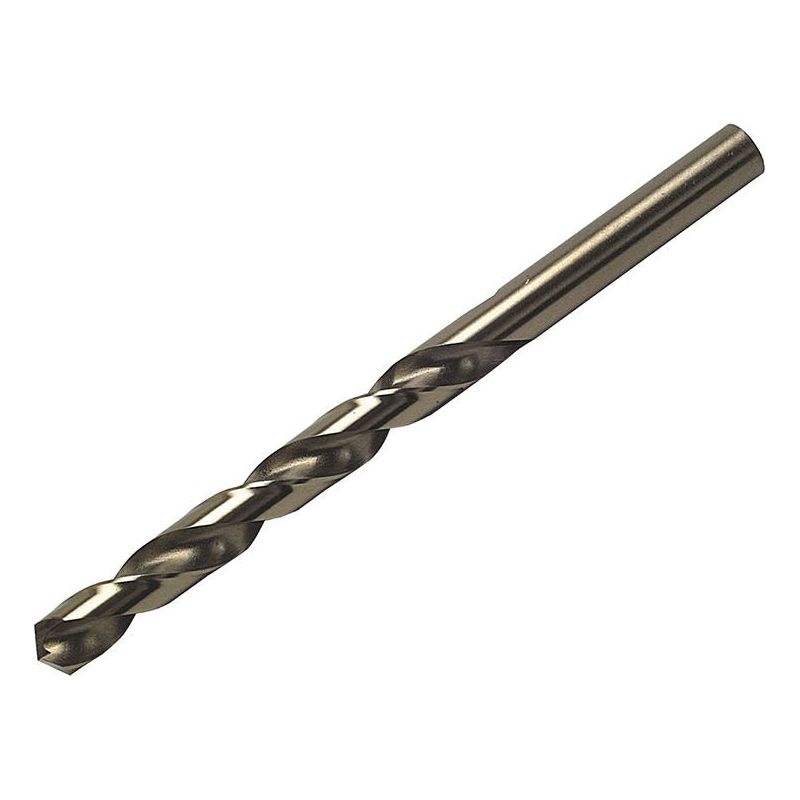

Dormer A777 HSCo Heavy-Duty Jobber Drill 3.20mm OL:65mm WL:36mm
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
A777 Metric Cobalt Jobber Drill Bits have a heavy-duty, 135° split point for use when greater heat is generated during drilling, e.g on higher tensile tougher materials and in particular the Aerospace Industry.
Specification
Flute Geometry: Standard Helix, Right hand spiral, Thick Web
Point Angle:
0.30 mm - 0.95 mm 118° Conical point
1.00 mm to 1.40 mm inclusive 135° 4 facet point
1.50 mm and above 135° split point sizes (Split point geometry to NAS 907 Aerospace Specification type P3 Point)
Surface Treatment: Bronze
Material: HSCo Cobalt steel
DIN 338 RN / BS328 / ISO 235
Tip diameter: 3.20mm
Working length: 36mm.
Overall length: 65mm.
