Connect HDSCS Connector 8 Pin 1.5 - CPL
Original price
£15.99
-
Original price
£15.99
Original price
£15.99
£15.99
-
£15.99
Current price
£15.99
Availability:
6 in stock, ready to be shipped
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
A HDSCS (Heavy-Duty Sealed Connector) includes terminals and seals. Suitable for a range of applications, including commercial and off-road vehicles.
Features
- HDSCS connector, designed for commercial vehicle & off-road vehicle use.

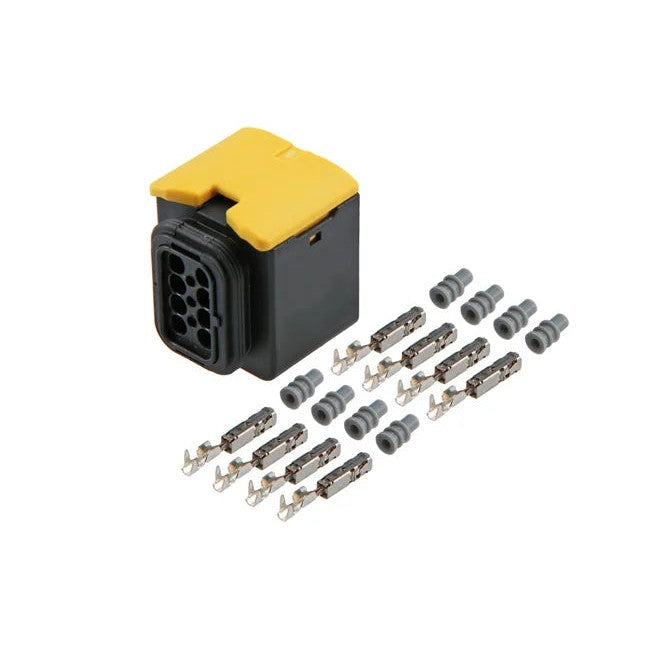

- Contains: 1x 8-pin connector housing, 8x 1.5 terminals & 8x weather seals (grey).
- To be used on 1.0mm² cable. For crimping tool, please see Laser Part No. 7002.
- Full range of sizes available, please see Part Nos. 34338 (2-pin 1.5), 34339 (2-pin 2.8), 34340 (3-pin 1.5), 34341 (4-pin 2.8), 34342 (6-pin 1.5), 34343 (10-pin 1.5/2.8), 34344 (12-pin 1.5). 34345 (16-pin 1.5/2.8), 34346 (7-pin 1.5/2.8), 34348 (8-pin 2.8) & 34349 (18-pin 1.5).
- Also included in 265pc assorted kit, please see Part No. 34337.
Specifications
| Brand | Connect |
| EAN | 5018341343477 |
| Type | Harness Connectors |
| Sub-Type | Harness Connectors |
| Item Weight | 0.034 kg |
| Custom Bundle | No |
| Item Width | 77mm |
| Item Height | 38mm |
| Item Depth | 140mm |
| Country/Region of Manufacture | China |
| Customs Tariff Number | 85369010 |
| Manufacturer Part Number (MPN) | CPL |
