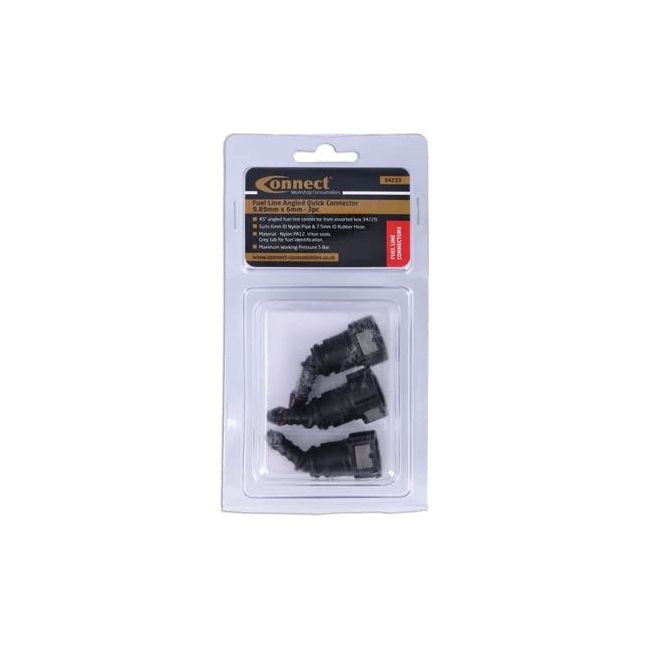

Connect 45 Angled Fuel Line Quick Connectors 9.89 x 6mm 3pc 34233
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
A set of 3 angled fuel line quick connectors allowing for tight connections on 6mm fuel lines. The 45 angle provides easier fixing in tight spaces. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected and disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks.
45 angled connectors, suits: 6mm nylon pipe; 7.5mm ID rubber hose.
Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40C to 120C.
Body manufactured from nylon PA12; O-ring from FKM seal (viton). Made to SAE J2044-2009 standards.
Grey tab for fuel identification (note: AdBlue specific connectors have red tabs).
Included in assorted box of 45 angled quick fuel line connectors, see Connect Part No. 34229.
