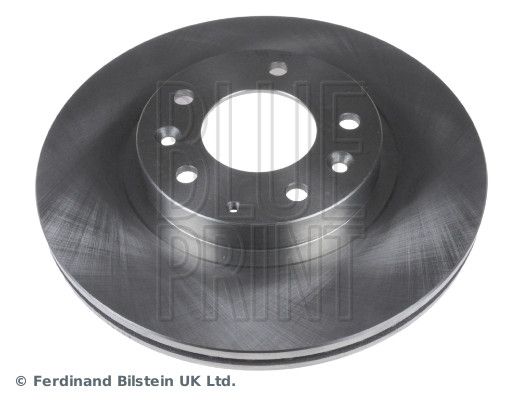

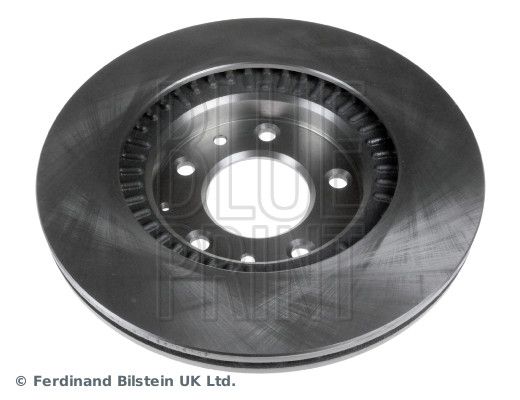

Blue Print Brake Disc - Front Axle
This Blue Print Brake Disc (Part Number: ADM54398) is designed for the Front Axle position and is manufactured to OE-quality standards for reliable performance and exact fitment.
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Vehicle Compatibility
| Make | Model | Year | Type | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Mazda | MX-5 Mk III (NC) | 2005-2014 | Convertible | 1.8 (NC18) | 93KW 126HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Mazda | MX-5 Mk III (NC) | 2005-2016 | Convertible | 2.0 (NC18) | 118KW 160HP | IMPORTANT: Check measurements & dimensions as variations exist |
↔ Swipe to see more columns on mobile
Specifications
| Part Number | ADM54398 |
| Brake Disc Thickness [mm] | 22 |
| Rim Hole Number | 5 |
| Number of mounting bores | 3 |
| Thickness [mm] | 45 |
| Outer Diameter [mm] | 290 |
| Bolt Hole Circle Ø [mm] | 114 |
| Surface | Coated |
| Brake Disc Type | internally vented |
| Fitting Position | Front Axle |
| Minimum thickness [mm] | 20 |
| Centering Diameter [mm] | 72 |
| EAN / Barcode | 5050063543988 |
OEM Cross References (5)
Why Choose Blue Print?
Blue Print is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
