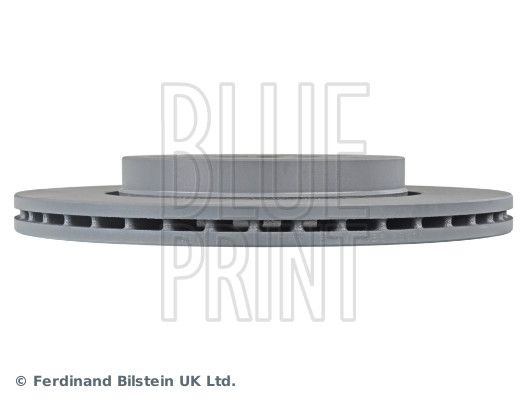

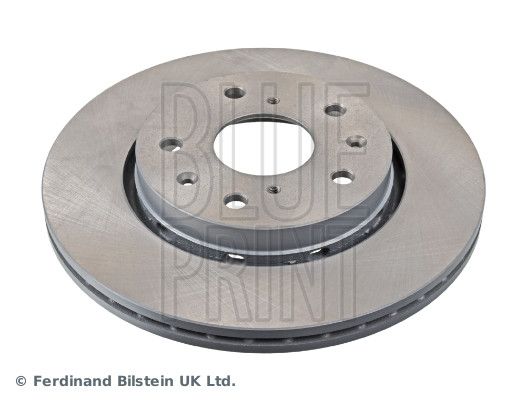

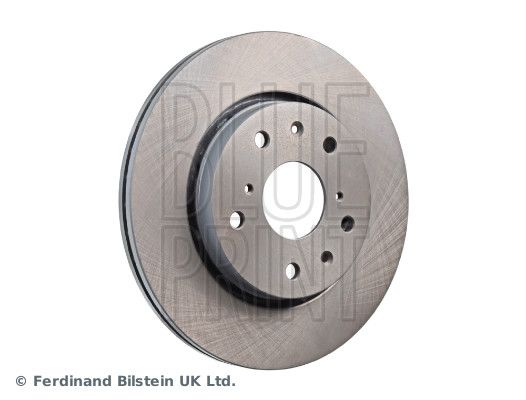

Blue Print Brake Disc - Front Axle
This Blue Print Brake Disc (Part Number: ADK84330) is designed for the Front Axle position and is manufactured to OE-quality standards for reliable performance and exact fitment.
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Vehicle Compatibility
| Make | Model | Year | Type | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Suzuki | SWIFT III (MZ, EZ) | 2006-2012 | Hatchback | 1.3 4x4 (RS413, ZD11S) | 66KW 90HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2006-2015 | Hatchback | 1.6 (RS416, RR 416, ZC31S) | 92KW 125HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2005-2015 | Hatchback | 1.3 (RS413, ZC11S) | 67KW 91HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2005-2012 | Hatchback | 1.3 (RS413, ZC11S) | 68KW 92HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2005-2012 | Hatchback | 1.3 4x4 (RS 413, ZD11S) | 68KW 92HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2005-2011 | Hatchback | 1.5 (RS415, ZC21S) | 75KW 102HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2005-2012 | Hatchback | 1.3 DDiS (RS413D) | 51KW 69HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Suzuki | SWIFT III (MZ, EZ) | 2005-2011 | Hatchback | 1.3 DDiS (RS413D) | 55KW 75HP | IMPORTANT: Check measurements & dimensions as variations exist |
↔ Swipe to see more columns on mobile
Specifications
| Part Number | ADK84330 |
| Brake Disc Thickness [mm] | 20 |
| Rim Hole Number | 5 |
| Number of mounting bores | 2 |
| Thickness [mm] | 40 |
| Outer Diameter [mm] | 276 |
| Bolt Hole Circle Ø [mm] | 114 |
| Surface | Coated |
| Brake Disc Type | internally vented |
| Fitting Position | Front Axle |
| Minimum thickness [mm] | 18 |
| Centering Diameter [mm] | 62 |
| EAN / Barcode | 5050063843309 |
OEM Cross References (4)
