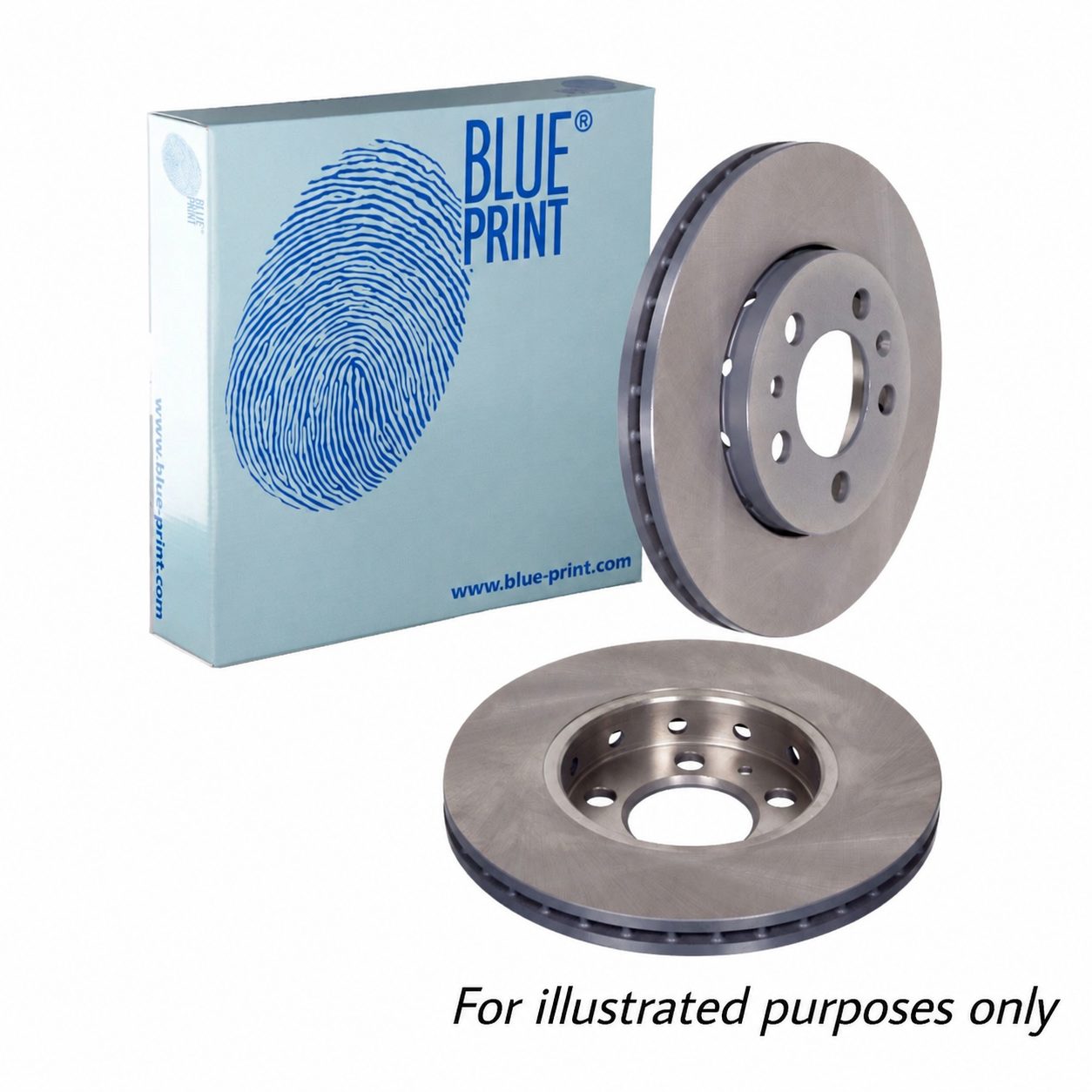

Blue Print 2 x Brake Disc Set Internally Vented Front
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.

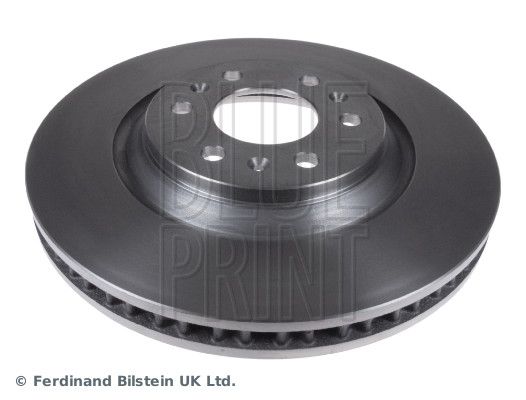

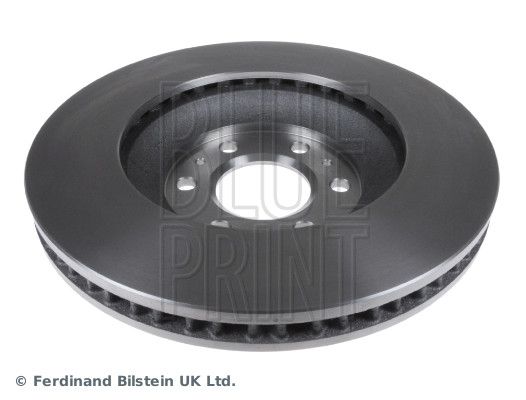

Blue Print Brake Disc - Front Axle
This Blue Print Brake Disc (Part Number: ADA104342) is designed for the Front Axle position and is manufactured to OE-quality standards for reliable performance and exact fitment.
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Vehicle Compatibility
| Make | Model | Year | Type | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Cadillac | SRX | 2004-2008 | SUV | 3.6 AWD | 190KW 258HP | IMPORTANT: Check measurements & dimensions as variations exist |
| Cadillac | SRX | 2003-2009 | SUV | 4.6 AWD | 239KW 325HP | IMPORTANT: Check measurements & dimensions as variations exist |
↔ Swipe to see more columns on mobile
Specifications
| Part Number | ADA104342 |
| Brake Disc Thickness [mm] | 32.2 |
| Rim Hole Number | 6 |
| Number of mounting bores | 3 |
| Thickness [mm] | 52 |
| Outer Diameter [mm] | 323 |
| Bolt Hole Circle Ø [mm] | 115 |
| Surface | Coated |
| Brake Disc Type | internally vented |
| Fitting Position | Front Axle |
| Minimum thickness [mm] | 30.7 |
| Centering Diameter [mm] | 70.7 |
| EAN / Barcode | 5050063629507 |
