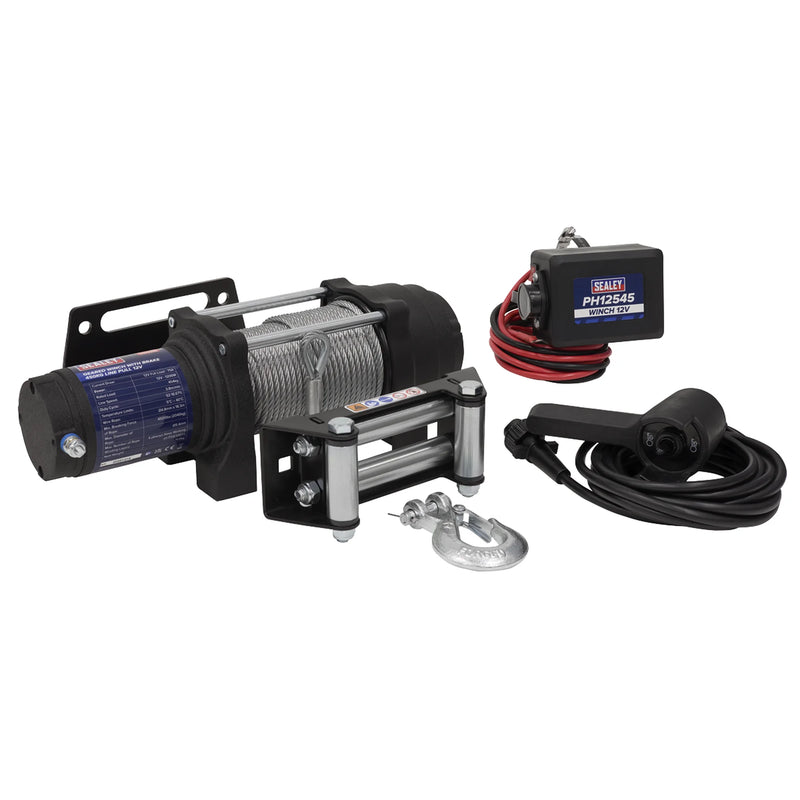

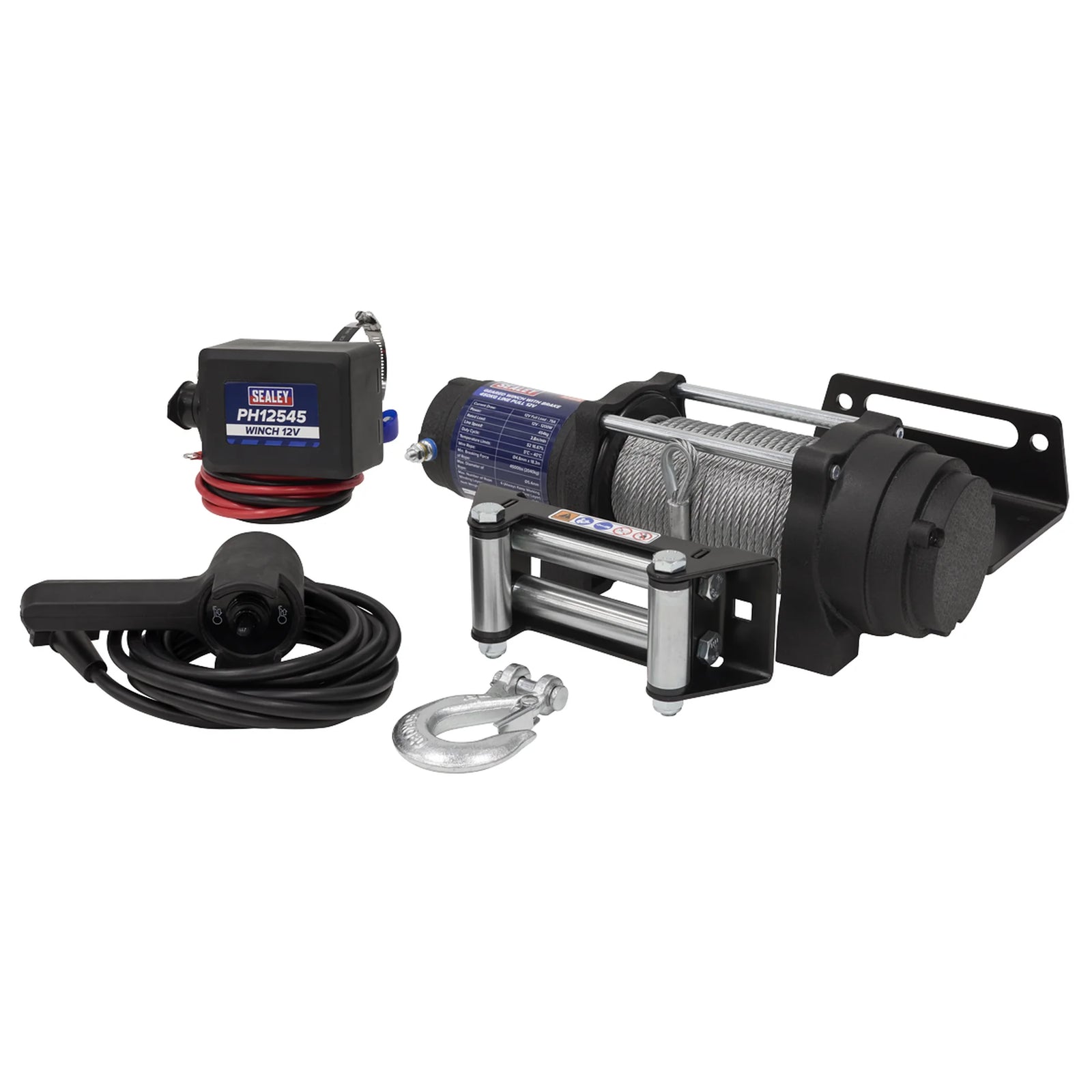

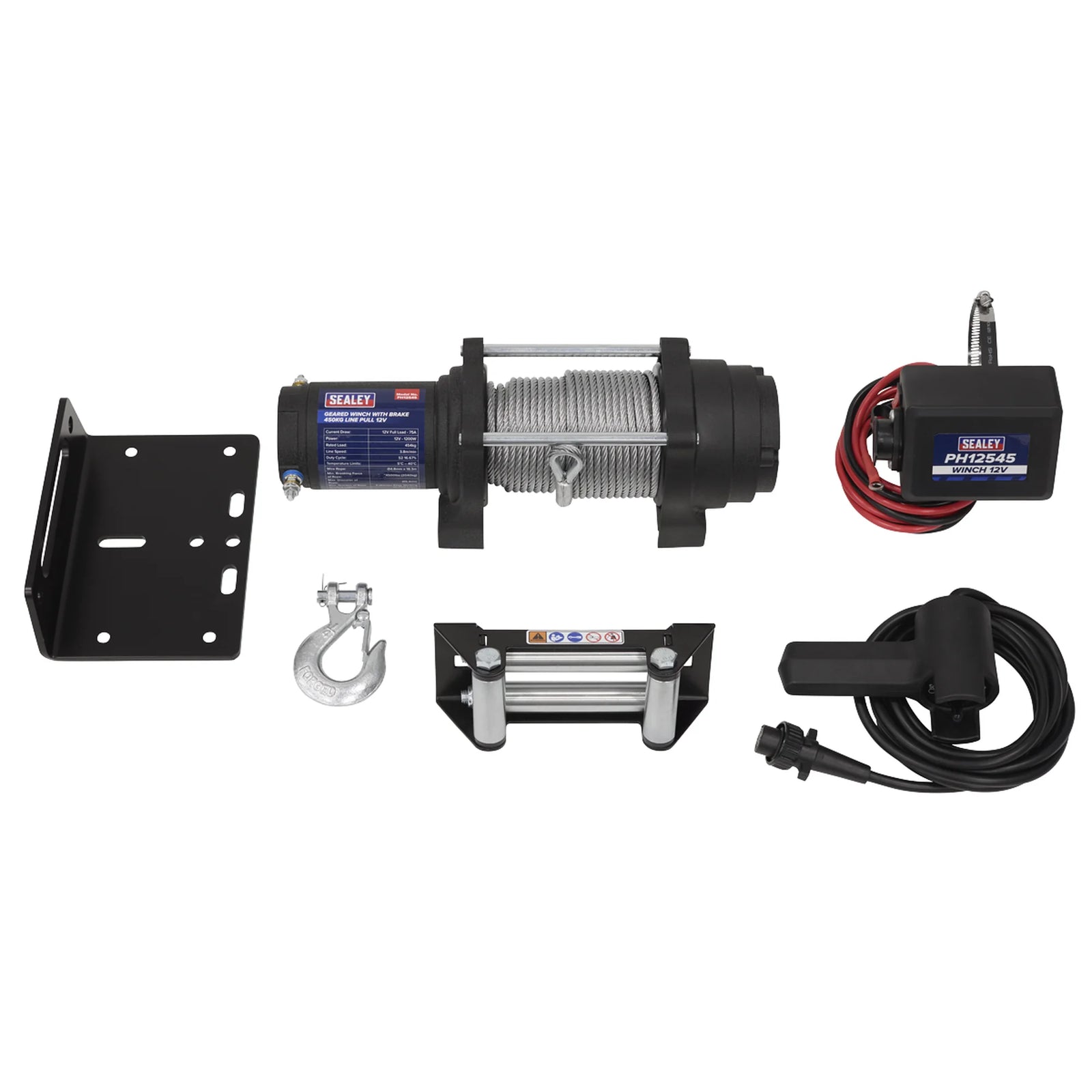

Sealey Geared Winch 450kg Line Pull 12V
14-day returns on all eligible orders
Contact us within 14 days of receiving your order to request a return.
Shipping information
Orders are picked, packed and dispatched from our Northampton warehouse.
- Free delivery to mainland UK addresses on orders of £40 or more.
- Orders under £40, and orders to Northern Ireland, have a delivery charge, shown at checkout before you pay.
- You will get an email with your tracking number once your order has shipped.
Full details are in our Shipping Policy.
Returns & warranty
Changed your mind? You can return an online order within 14 days of receiving it. Please contact us first for return instructions, then you have 14 days to send the goods back.
- Items must be unused, complete and in their original condition, with all accessories, instructions and original packaging.
- You arrange and pay for the return postage on change-of-mind returns. We refund the price of the item plus our standard delivery charge.
- Damaged in transit? Let us know within 48 hours of delivery - photos help.
- Faulty or wrong item? Contact us before sending anything back. Faulty goods are covered by your statutory rights.
Your statutory rights are not affected. Full details are in our Refund Policy, or email onlinesales@nn4online.co.uk.
The Sealey Geared Winch is designed for heavy-duty lifting and pulling tasks with a remarkable line pull capacity of 450kg. This winch features a reliable 12V motor and a robust braking system for enhanced safety.
- Reinforced Steel Drum: Ensures durability and strength.
- Weatherproof Design: Rated IP68, this winch performs well in all weather conditions.
- 3-Stage Planetary Gears: Increases pulling power effectively.
- Dual Brake System: Combines mechanical and dynamic braking for load stability.
- Long Wire Rope: Comes with an 18.3m wire length for extended reach.
Specifications
| Brand | Sealey |
| EAN | 5054630632662 |
| Type | Janitorial, Material Handling & Leisure |
| Sub-Type | Winches |
| Item Weight | 15.5 kg |
| Custom Bundle | No |
| Model No | PH12545 |
| Current Draw | 12V Full Load - 75A |
| Gear Ratio | 140:1 |
| Line Pull* | 454kg 1000lbs |
| Line Speed* | Full Load - 3.8m/min |
| Motor Power | 12V - 1200W |
| Nett Weight | 11kg |
| Rated Capacity | 454kg 1000lbs |
| Min. Breaking Rope Force | 4500lbs (2040kg) |
| Max. Rope Diameter | Ø5.4mm |
| Max. No. of Rope Winding Layers | 4 (Always Keep Working on First Layer) |
| Wire Rope Diameter | Ø4.8mm |
| Wire Rope Length | 18.3m |
| Voltage | 12V |
| Power Source | Battery |
| Manufacturer Part Number (MPN) | PH12545 |
