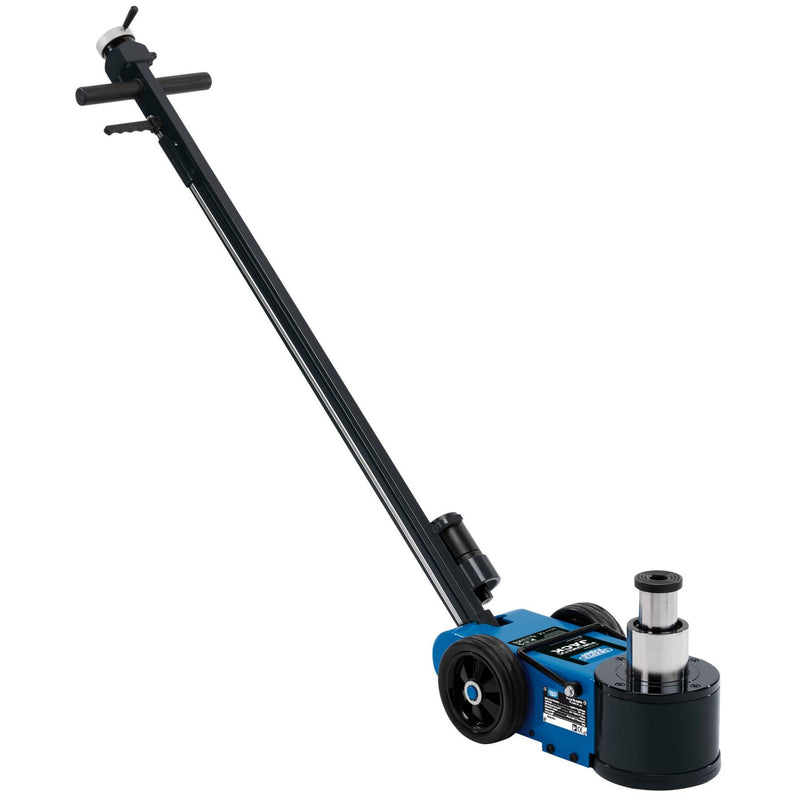

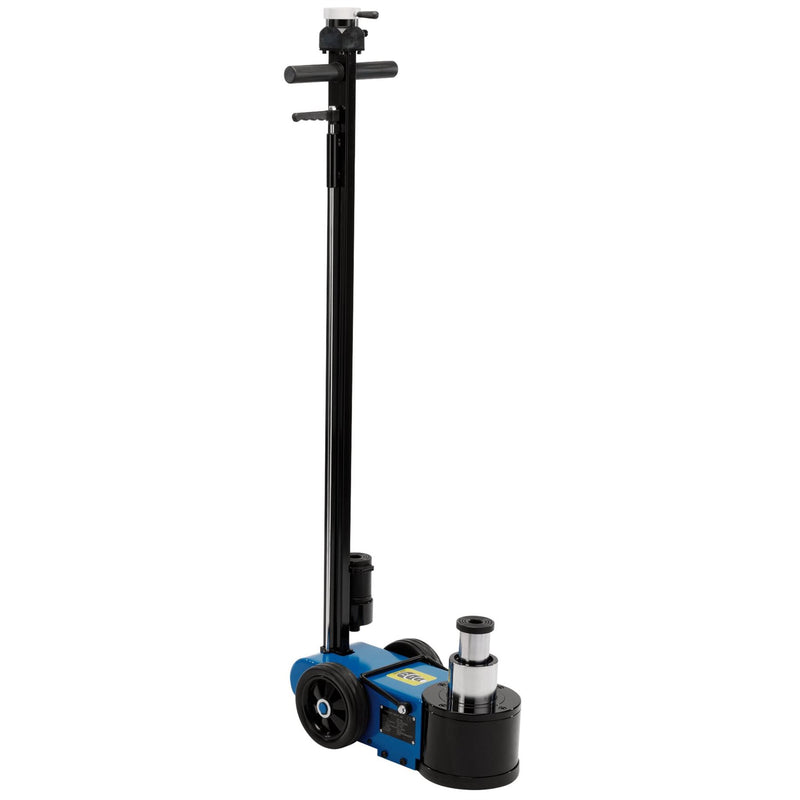

Draper Pneumatic Jack, 40 Tonne 02079
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Specifications
Capacity stage 1 40 Tonne (40,000kg)
Capacity stage 2 20 Tonne (20,000kg)
Minimum height 150mm
Maximum height stage 1 343mm (inc extensions)
Maximum height stage 2 409mm (inc extensions)
Lift height stage 1 73mm
Lift height stage 2 66mm
Operating air pressure 9 – 12BAR (130 – 174psi)
Air consumption 11.5cfm
Air inlet 1/4" BSP
Wheel diameter 165mm)
Wheel width 42.5mm
Saddle diameter 70mm
Extensions 45mm and 75mm
Handle length 1300mm
Chassis size 480 x 186 x 150mm
Nett weight 40kg
Standards
Manufactured to EN1494 Specification
