Bosch Starter Motor 24V 5.4kW 11 Teeth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Bosch Starter (Part Number 0 986 011 480) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

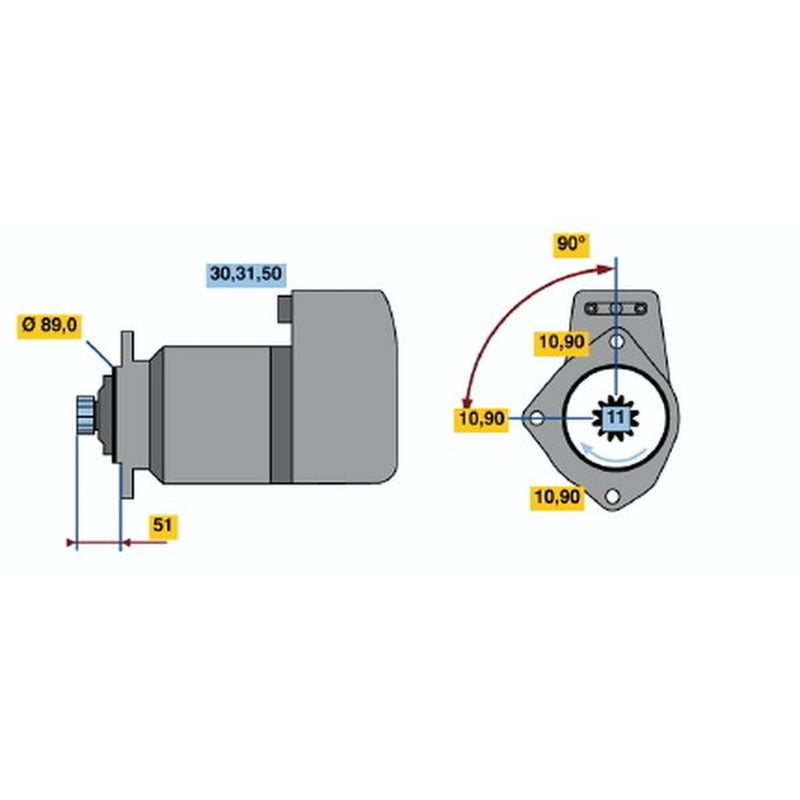

Specifications
| Brand | Bosch |
|---|---|
| Part Type | Starter |
| Voltage | 24V |
| Rated Power | 5.4kW |
| Number of mounting bores | 3 |
| Number of threaded holes | 0 |
| Number of Teeth | 11 |
| Clamp | 31 |
| Flange Diameter | 89mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | 47.5mm |
| Starter Type | Floating pinion |
| Bore Diameter | 10.5mm |
| Bore Diameter 2 | 10.5mm |
| Bore Ø 3 | 10.5mm |
| Length | 375mm |
| Position/Degree | rechts |
| Mounting Angle | 90 degrees |
| Mounting bore angle measurement | 90 degree |
| Manufacturer Part Number | 0 986 011 480 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Faun | 1701 052, 1701 071 |
| Magirus-Deutz | 01163558, 01174637, 116 3558, 117 4637 |
