Bosch Starter Motor 24V 3.2kW 9 Teeth fits Fiat Series 65 1975-1979
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Bosch Starter (Part Number 0 986 011 160) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

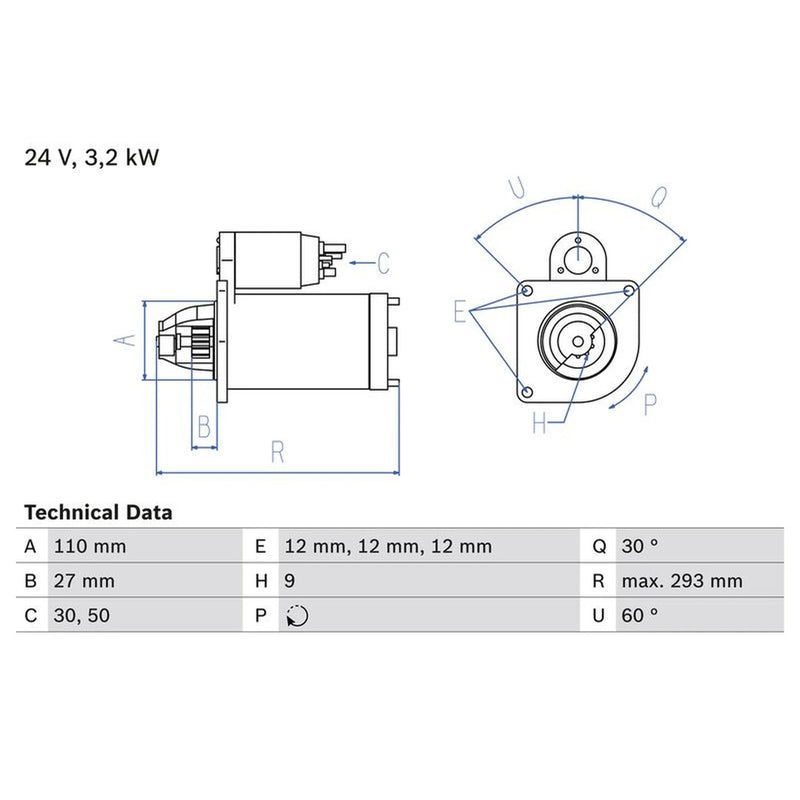

Specifications
| Brand | Bosch |
|---|---|
| Part Type | Starter |
| Voltage | 24V |
| Rated Power | 3.2kW |
| Number of mounting bores | 3 |
| Number of threaded holes | 0 |
| Number of Teeth | 9 |
| Clamp | 30 |
| Flange Diameter | 110mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | 27mm |
| Starter Type | Self-supporting |
| Bore Diameter | 12mm |
| Bore Diameter 2 | 12mm |
| Bore Ø 3 | 12mm |
| Length | 293mm |
| Position/Degree | links |
| Mounting Angle | 60 degrees |
| Jaw opening angle measurement | 30 Degree |
| Mounting bore angle measurement | 60 degree |
| Manufacturer Part Number | 0 986 011 160 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
| Make | Model | Years |
|---|---|---|
| Fiat | Series 65 | 1975-1979 |
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Fiat | 4691200, 4706931, 4744841, 4752403, 4807377, 6706931, 77080560, 77080561 |
| Iveco | 42498142, 4744841, 4807377, 504038038 |
| Lancia | 4691200, 4706931, 4744841, 4752403, 4807377, 6706931, 77080560, 77080561 |
Why Buy Bosch?
Bosch is a trusted name in OE-quality replacement parts. Every component is manufactured to original equipment standards, providing reliable performance, exact fitment and long service life.
- OE-quality construction
- Tested to manufacturer specifications
- Trusted by professional workshops
- Backed by manufacturer warranty
