Bosch Starter Motor 12V 1.6kW 9 Teeth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Bosch Starter (Part Number 0 986 022 500) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

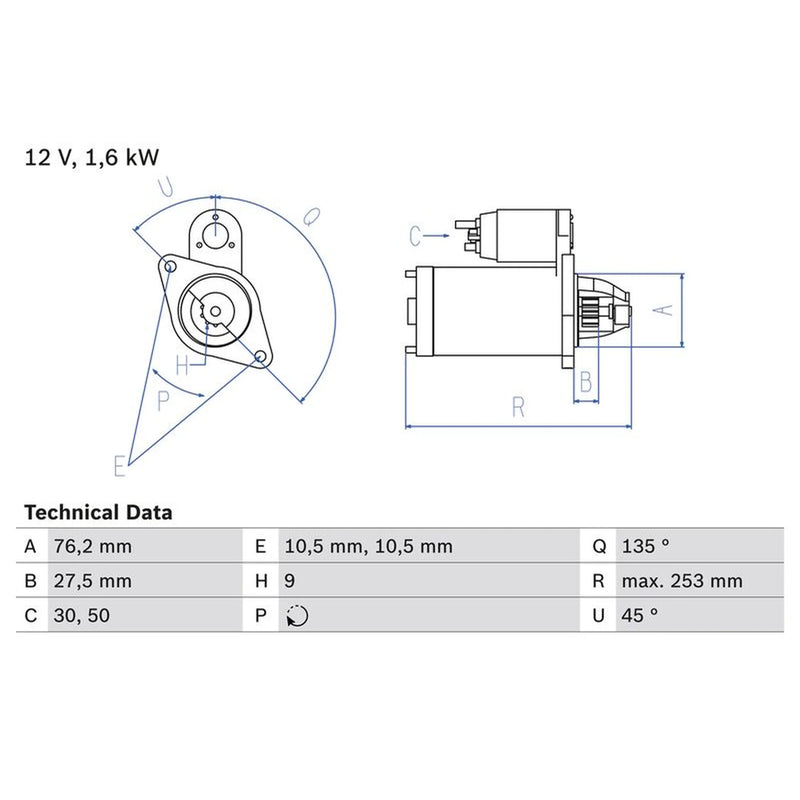

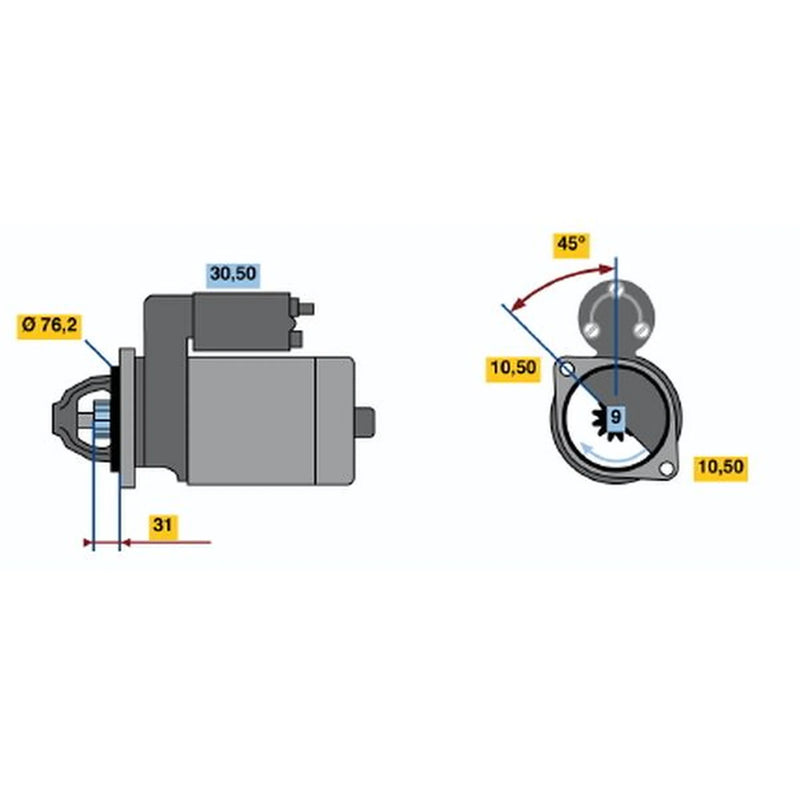

Specifications
| Brand | Bosch |
|---|---|
| Part Type | Starter |
| Voltage | 12V |
| Rated Power | 1.6kW |
| Number of mounting bores | 2 |
| Number of threaded holes | 0 |
| Number of Teeth | 9 |
| Clamp | 30 |
| Flange Diameter | 76.2mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | 27.5mm |
| Starter Type | Self-supporting |
| Bore Diameter | 10.5mm |
| Bore Diameter 2 | 10.5mm |
| Length | 253mm |
| Position/Degree | links |
| Mounting Angle | 45 degrees |
| Jaw opening angle measurement | 135 Degree |
| Mounting bore angle measurement | 45 degree |
| Manufacturer Part Number | 0 986 022 500 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Lombardini | 5840147, 58401470, 5840224, 58402240 |
