Bosch Starter Motor 24V 4kW 9 Teeth
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description
This Bosch Starter (Part Number 0 986 017 990) is OE-quality replacement, supplied for direct fitment to compatible vehicles.

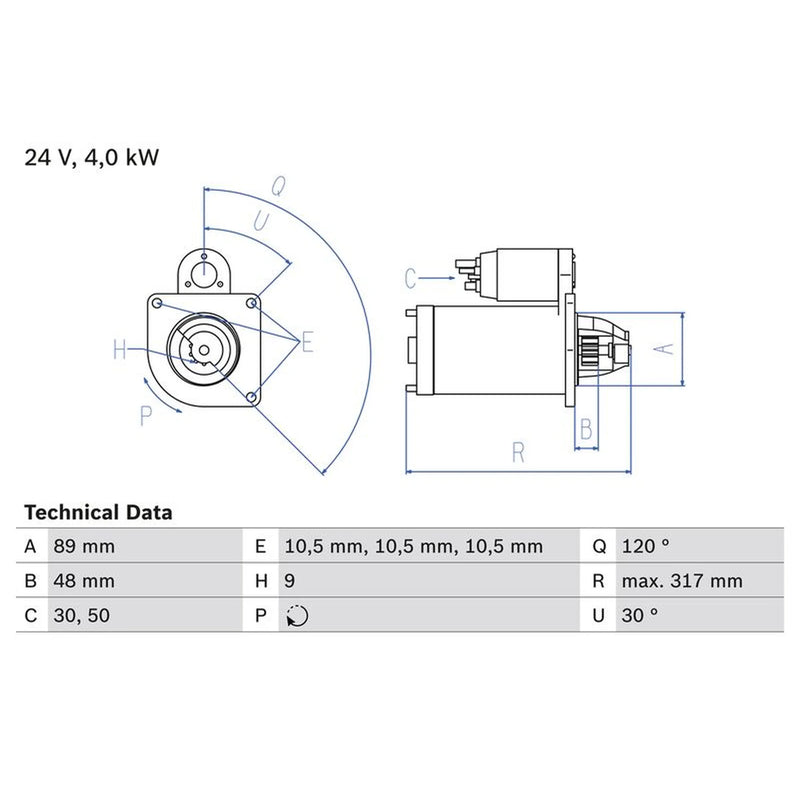

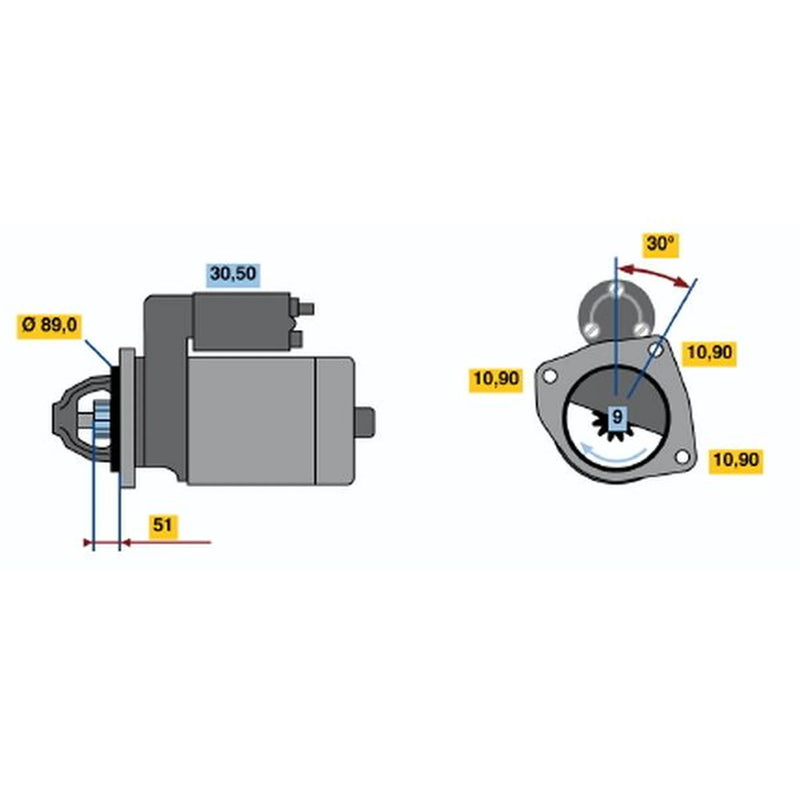

Specifications
| Brand | Bosch |
|---|---|
| Part Type | Starter |
| Voltage | 24V |
| Rated Power | 4kW |
| Number of mounting bores | 3 |
| Number of threaded holes | 0 |
| Number of Teeth | 9 |
| Clamp | 30 |
| Flange Diameter | 89mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | 48mm |
| Starter Type | Self-supporting |
| Bore Diameter | 10.5mm |
| Bore Diameter 2 | 10.5mm |
| Bore Ø 3 | 10.5mm |
| Length | 317mm |
| Position/Degree | rechts |
| Mounting Angle | 30 degrees |
| Jaw opening angle measurement | 120 Degree |
| Mounting bore angle measurement | 30 degree |
| Manufacturer Part Number | 0 986 017 990 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Mercedes-Benz | A 004 151 86 01, A 004 151 86 01 80, 004 151 86 01, 004 151 86 01 80 |
