Bosch Main Power Relay
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
Description

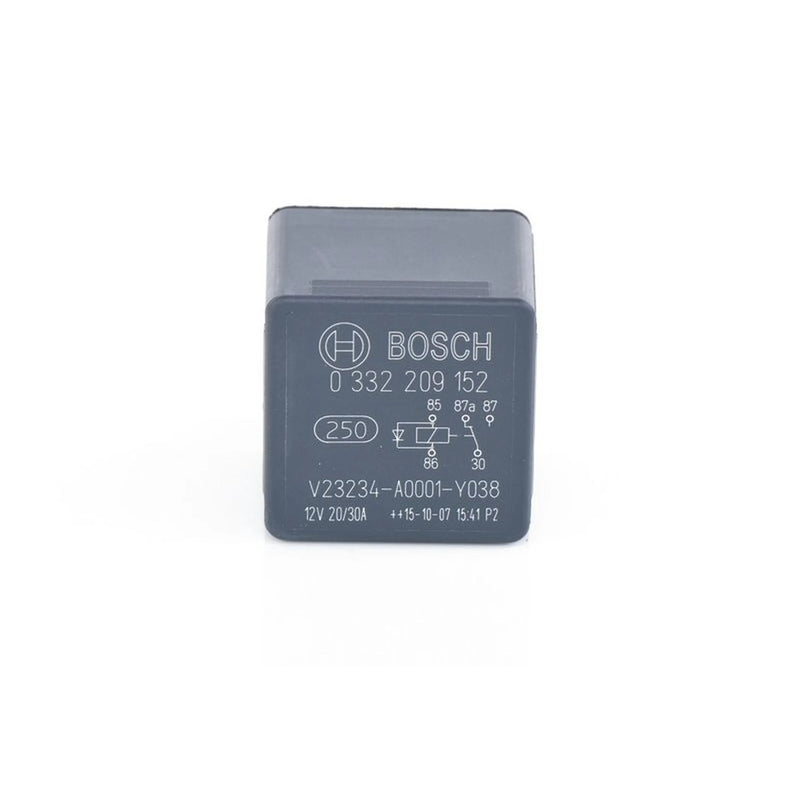

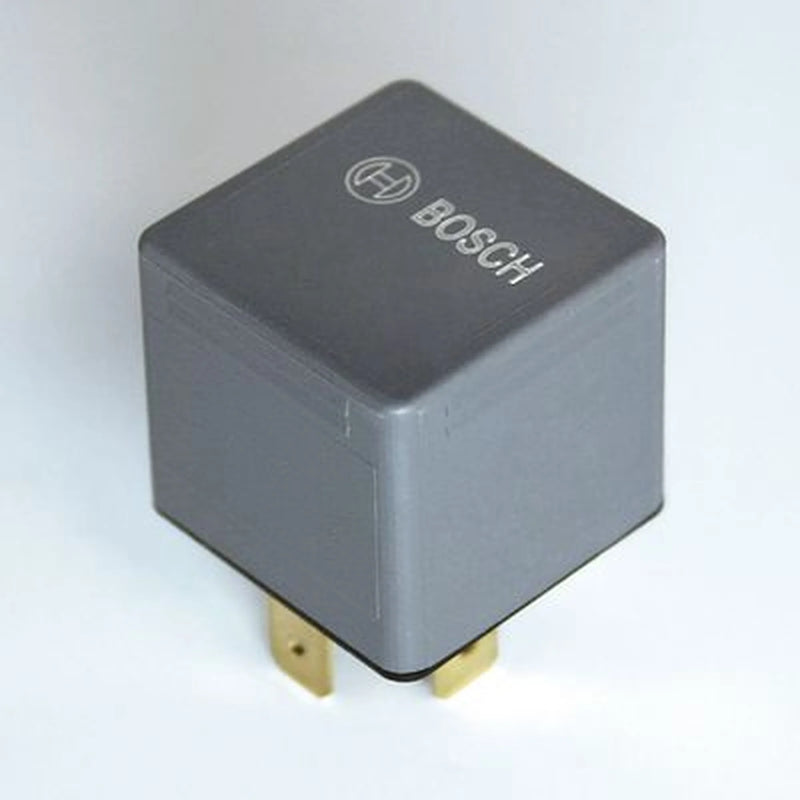

This Bosch Relay, main current (Part Number 0 332 209 152) is OE-quality replacement, supplied for direct fitment to compatible vehicles.
Specifications
| Brand | Bosch |
|---|---|
| Part Type | Relay, main current |
| Current Strength | 30A |
| Voltage | 12V |

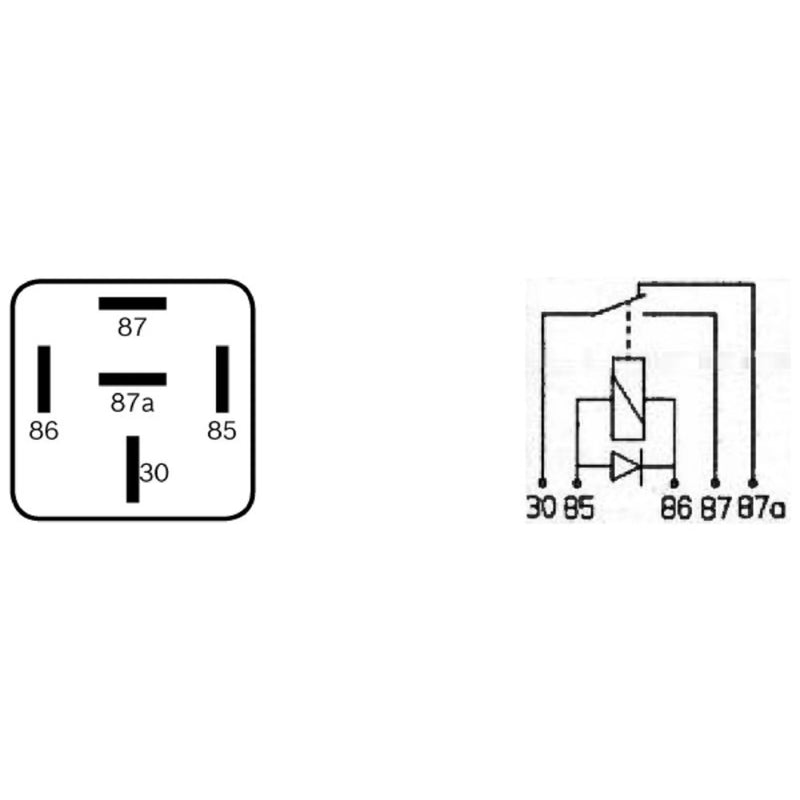

| Number of pins | 5 |
| Relay function | Normally open contact |
| Housing Type | Synthetic Material Housing |
| Switch Function | Changeover Contact |
| Protection Type (IP Code) | IP34 |
| Temperature range from | -40°C |
| Temperature range to | 100°C |
| Resistor | 16Ohm |
| Supplementary Article/Supplementary Info | without holder |
| Housing Colour | black/grey |
| Manufacturer Part Number | 0 332 209 152 |
Vehicle Compatibility
Use the vehicle compatibility checker above to confirm fitment to your registration. This part fits the following vehicles:
No vehicle compatibility data available for this part.
OEM References
This part is a direct OE-quality replacement for the following original equipment manufacturer part numbers:
| Make | Reference |
|---|---|
| Aebi | 97702337 |
| Audi | KDWHL09678 |
| Bomag | 055 760 17 |
| Case Ih | 07074850, 1301458C1, 1987409C2 |
| Citroën/Peugeot | 6555JJ, 95 613 59080 |
| DAF | 1279539, 906185 |
| Deutz-Fahr | 01178519, 1178519 |
| Fendt | D45070089, 32906800, 32909800, 836662497 |
| Ferrari | 156669 |
| Fiat | K3219084500, 32190845, 3219084500 |
| Goldhofer | 614229 |
| Hako | 01 06454 0, 90 26748 5, 90 78704 5 |
| Hanomag Henschel | 3097600M1 |
| Hyster | 1456464 |
| Irmscher | 75312005 |
| John Deere | AL57418 |
| Jungheinrich | 52022120 |
| Mafi | 0005797919 |
| Magirus-Deutz | 01174400, 01178519, 04194475, 117 4400, 117 8519, 419 4475 |
| Manitou | 52574921 |
| Mercedes-Benz | A 000 835 01 59, A 002 542 74 19, A 004 545 38 05, 000 835 01 59, 002 542 74 19, 004 545 38 05 |
| Peugeot | 6555 JJ, 6555 28, 79 055 222 20, 95 613 590 80 |
| Renault | 77 00 026 328, 83 03 239 095 |
| Rolls-Royce | UD26632, UD75826 |
| Same | 1178519, 45070089 |
| Schmitz Cargobull | 1104 |
| Smart | 0025427419 |
| VW | KDWHL09678 |
| Valmet | 32906800 |
| Valtra | 32906800 |
| Volvo | 1324492, 4803109, 873765 |
