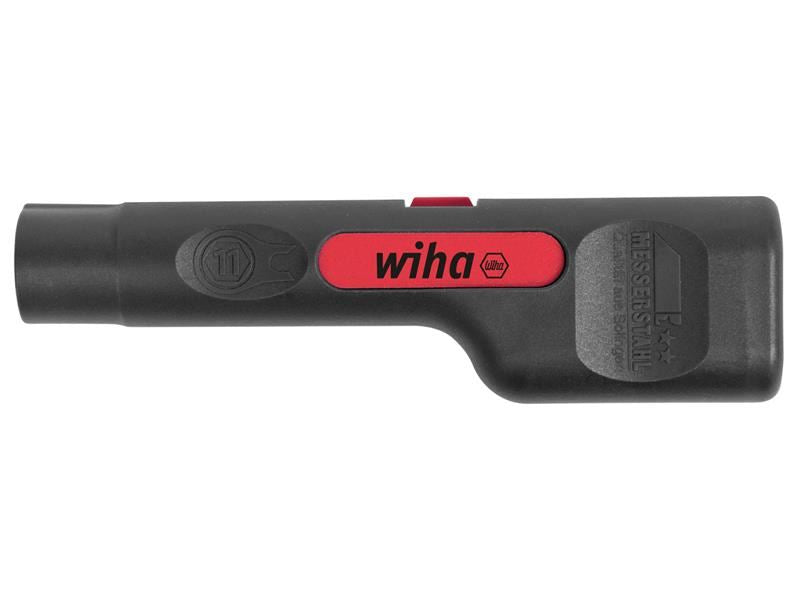

Wiha Stripping and Assembly Tool
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shipping information
Use this text to share information about your product.
Returns & warranty
Use this text to share information about your product.
The Wiha Stripping and Assembly Tool offers the user all the necessary functions required for processing a coaxial cable with F-screw connector in one compact tool.
Precisely fitting and stripping of coaxial cables with an outer diameter of 6 to 8mm can be carried out in just one work step. The stripping is performed quickly and in a space-saving manner by means of multiple rotary movements using two pairs of blades positioned opposite each other.
The already adjusted stripping dimension is designed for common F-screw connectors. In the next step, the integrated gripping jaws can be used to screw F-connectors onto the already stripped cable.
Then the open hexagon SW11 ensures easy assembly or disassembly of the F-connector. The hexagon offers very good accessibility and is easy to operate, especially in confined work environments.
For safe and space-saving storage, the tool can be locked in a closed position by means of a slide.
Specifications:
Overall Length: 125mm.
Area Stripped (Min.-Max.): 6-8mm.
Hex Head: 11.0.
